Here you will find all available parts and drawings of the 'Bosch 0600700003 ( SHO160 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

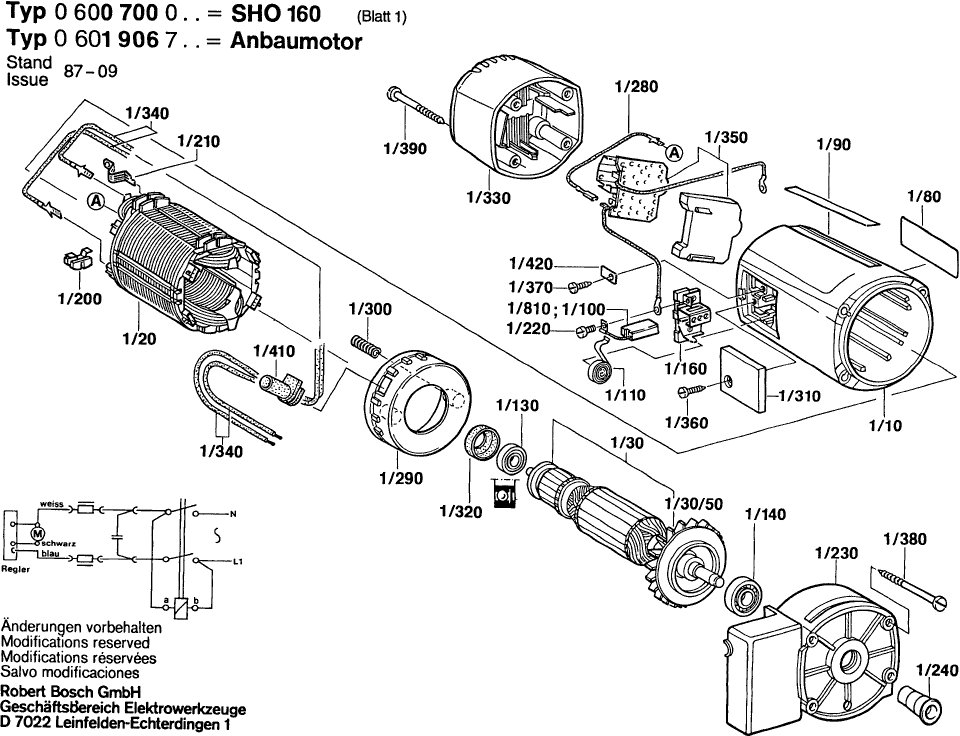

Technical drawing of model Bosch 0600700003 ( SHO160 )

Spare parts list of model Bosch 0600700003 ( SHO160 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
1 0601906603
No longer available, no replacement
1/10 3605108069
Spiral Spring
1/110 1604652006 1.18 1.43
Ball Bearing 7x19x6
1/130 2600905032 4.10 4.96
No longer available, no replacement
1/140 1610905009
Brush Holder
1/160 3604336012 4.70 5.69
Field 220-230V
1/20 1604220354 29.75 36.00
Wire Guide
1/200 3601025003 1.18 1.43
Wire Guide
1/200 1601025001 1.10 1.33
Blade terminal
1/210 1604477001 1.18 1.43
Socket head cap screw DIN 84-AM4x8-8.8
1/220 2910021118 0.83 1.00
No longer available, no replacement
1/230 3605700083
Pulley
1/240 3600300022 0.83 1.00
Connecting Cable
1/280 3604431017 1.94 2.35
Air-Deflector Ring
1/290 1600502014 2.71 3.28
Armature 220V
1/30 3604010018 130.32 157.69
Fan
1/30/50 1606610122 2.24 2.71
Compression Spring
1/300 1604613006 1.18 1.43
Sealing cap BLUE
1/310 1605500089 1.18 1.43
Intermediate Ring
1/320 1600502011 1.94 2.35
Sealing cap
1/330 3605500049 0.83 1.00
Connecting Cable L=290 MM WHITE
1/340 1604438017 2.24 2.71
No longer available, no replacement
1/350 3608300009
Tapping Screw DIN 7971-ST3,9x16-F
1/360 2910211019 0.83 1.00
Tapping Screw DIN 7971-ST3,9x13-F
1/370 2910211018 0.83 1.00
Tapping Screw BZ4,8x63 MM
1/380 1603435008 1.18 1.43
Screw B 4,8x45 MM
1/390 3603415560 0.83 1.00
Grommet
1/410 3600312005 1.94 2.35
Tab Washer
1/420 1601030022 1.18 1.43
Nameplate
1/80 160111A3H3 1.94 2.35
Nameplate
1/80 3601106003 1.18 1.43
No longer available, no replacement
1/810 1607014125
Sticker
1/90 1601110046 1.18 1.43
Manufacturer's nameplate
1/90 1601110545 0.83 1.00
Covering hood
2 1609201822 0.83 1.00
No longer available, no replacement
3 1609201823
No longer available, no replacement
4 1609201824
No longer available, no replacement
4/20 2917780116
Hex Screw
4/30 1609201825 1.18 1.43
Set screw 5x8 MM
4/40 1609202233 0.83 1.00
No longer available, no replacement
6 1609201826
No longer available, no replacement
7 1609201827
Rear Housing Section
8 1609201828 0.83 1.00
Threaded Spindle M6
9 1609201829 0.83 1.00
No longer available, no replacement
12 1609201830
Table top
13 1609201831 148.65 179.87
No longer available, no replacement
16 1609201832
No longer available, no replacement
17 1609201833
No longer available, no replacement
19 1609201834
No longer available, no replacement
20 1609201835
No longer available, no replacement
21 1609201836
Shim washer
23 1609201837 0.83 1.00
Bearing Shell
24 1609201838 0.83 1.00
Guide-Plate
25 1609201839 0.83 1.00
Safety Catch
26 1609201840 0.83 1.00
Plain Washer
27 1609202232 0.83 1.00
Holding Bracket
28 1609202245 0.83 1.00
Bushing
32 1609201841 0.83 1.00
Protective Cover
33 1609201842 0.83 1.00
Pulley Z=16
34 1609201843 8.45 10.22
Toothed Gear Z=86
35 1609201844 9.53 11.53
Housing Cover
36 1609201845 0.83 1.00
Pointer
38 1609201846 0.83 1.00
Housing Cover
39 1609201847 0.83 1.00
Pickup Clip
40 1609201848 1.70 2.06
No longer available, no replacement
45 1609201849
No longer available, no replacement
46 1609201850
No longer available, no replacement
47 1609201851
No longer available, no replacement
48 1609201852
No longer available, no replacement
49 1609201853
No longer available, no replacement
50 1609201854
No longer available, no replacement
51 1609201855
No longer available, no replacement
52 1609201856
No longer available, no replacement
53 1609201857
No longer available, no replacement
54 1609201858
Spacer Sleeve
55 1609201859 4.70 5.69
No longer available, no replacement
60 1609201860
Rubber Buffer
65 1609201862 2.24 2.71
Extension Spring
67 1609201863 0.83 1.00
Extension Spring
68 1609201864 2.24 2.71
Protective Cover
70 1609201865 0.83 1.00
Pulley
71 1609201866 0.83 1.00
Guide Bushing
72 1609201867 0.83 1.00
Reference Plate
75 1601110532 0.83 1.00
Reference Plate
76 1601110533 0.83 1.00
Manufacturer's nameplate
77 1601110545 0.83 1.00
Thread-forming tap. Screw M4x8
78 2603410048 1.18 1.43
Socket head cap screw M5x5
79 1609201868 0.83 1.00
Thread-forming tap. Screw DIN 7500 CM 5x8
80 2914411056 0.83 1.00
Socket head cap screw DIN 7500 CM 4x20
81 2914411051 1.18 1.43
Thread-forming tap. Screw DIN 7500 CM 5x16
82 2914411060 0.83 1.00
Thread-forming tap. Screw DIN 7500 AM 6x10
83 2914401070 0.83 1.00
Thread-forming tap. Screw
84 2603435042 1.18 1.43
Hex Screw DIN 933 8x16-8.8
85 2911061238 0.83 1.00
Thread-forming tap. Screw DIN 7500-M5x10MM
86 2914411057 0.83 1.00
No longer available, no replacement
87 2910611420
Cross Recessed-Head Screw DIN 7981-ST 3,9x13-F-H
88 2910611418 0.83 1.00
Tapping Screw BZ4,8x63 MM
89 1603435008 1.18 1.43
No longer available, no replacement
90 2915011006
Hex Nut M5
91 1609201873 0.83 1.00
Hex Nut DIN 439-AM6-04
92 2915051106 0.83 1.00
Hex Nut
93 1609202234 0.83 1.00
Shim washer
94 1609202235 0.83 1.00
Shim ring
95 1609201874 0.83 1.00
Plain Washer DIN 9021-B 8,4-ST
96 2916011895 0.83 1.00
Plain Washer DIN 125-A10,5-ST
97 2916011017 1.18 1.43
Plain Washer DIN 433-5,3-ST
98 2916011011 1.18 1.43
Locking Washer Ø5 MM
99 1609202066 0.83 1.00
Spring Lock Washer DIN 127-A 8
101 2916680035 0.83 1.00
Spring retaining ring DIN 471-6x0,7-FSt
102 2916640003 0.83 1.00
Spring retaining ring DIN 471-12x1-FSt
103 2916650003 1.18 1.43
Spring retaining ring DIN 471-10x1MM-FSt
104 2916650001 1.94 2.35
Nozzle Socket
106 1600910019 1.94 2.35
groove ball bearing
107 1900905127 22.36 27.06
Chain
109 1609202236 0.83 1.00
Cable Clip
110 1609202237 0.83 1.00
Link Chain
111 1609201877 0.83 1.00
Link Chain
112 1609201878 0.83 1.00
No longer available, no replacement
113 1609201879
No longer available, no replacement
114 1609201880
Fastening Clamp
115 1609202238 0.83 1.00
Strain-Relief Clamp
116 1609201881 0.83 1.00
On-Off Switch
117 1609201882 0.83 1.00
Tapping Screw DIN 7971-B4,8x19
117/100 2910211234 1.18 1.43
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
117/70 1607000227 20.42 24.71
Suppression Filter
118 1607328034 3.31 4.01
Socket-Terminal Strip
119 1609201883 0.83 1.00
Grommet
120 1609202282 0.83 1.00
Single-Head Eng. Wrench
650 2607950504 1.70 2.06
Crank Handle
651 1609201884 0.83 1.00
Reference Plate
651/10 1601110531 0.83 1.00
Offset Screwdriver DIN 911 SW2,5
656 1907950003 1.94 2.35
No longer available, no replacement
700 1609201819
No longer available, no replacement
701 1609201816
No longer available, no replacement
702 1609201815
No longer available, no replacement
703 1609201817
No longer available, no replacement
704 1609201821
No longer available, no replacement
710 1609201814
