Here you will find all available parts and drawings of the 'Bosch 0603997900 ( SBM710-2E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

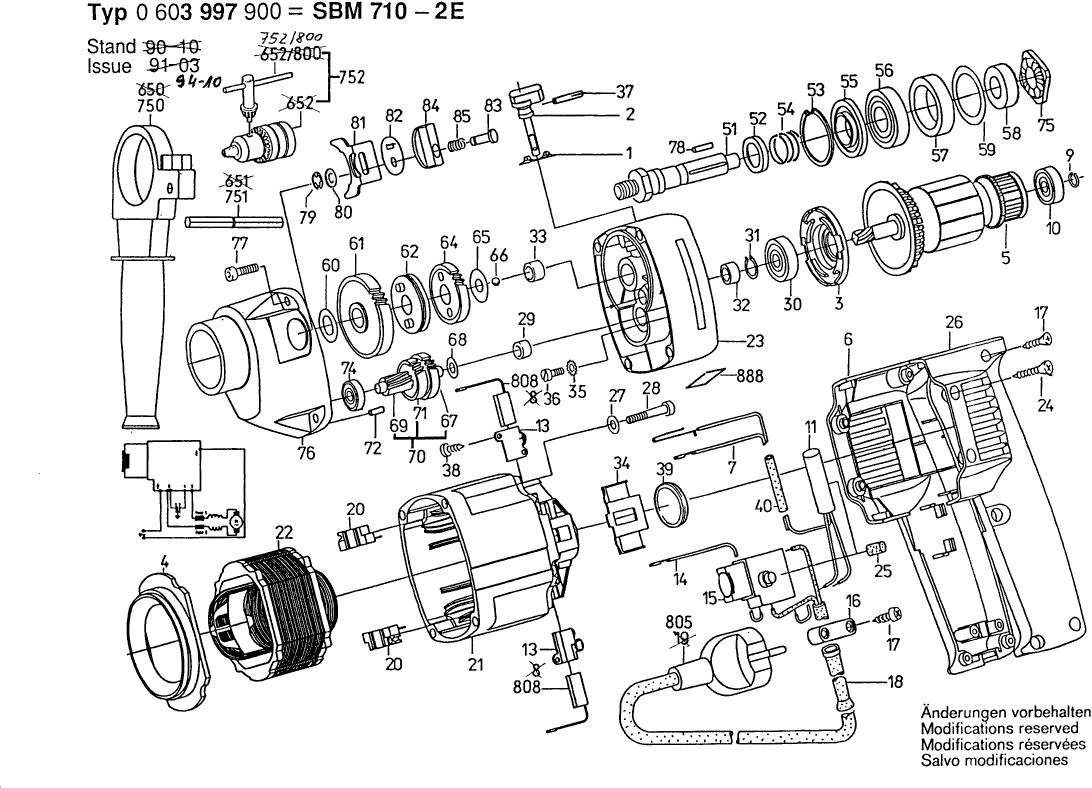

Technical drawing of model Bosch 0603997900 ( SBM710-2E )

Spare parts list of model Bosch 0603997900 ( SBM710-2E )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
1 1609202450
No longer available, no replacement
2 1609202451
No longer available, no replacement
3 1609202452
No longer available, no replacement
4 1609202453
No longer available, no replacement
5 1609202454
No longer available, no replacement
6 1609202455
No longer available, no replacement
7 1609202456
No longer available, no replacement
9 1609202458
No longer available, no replacement
10 1609202459
No longer available, no replacement
11 1609202460
No longer available, no replacement
13 1609202462
No longer available, no replacement
14 1609202463
On-Off Switch
15 1609202464 20.42 24.71
No longer available, no replacement
16 1609202465
No longer available, no replacement
17 1609202466
Grommet Ø6,5-Ø6,9x95 MM
18 2600703012 2.24 2.71
No longer available, no replacement
20 1609202467
No longer available, no replacement
21 1609202468
No longer available, no replacement
22 1609202469
Nameplate
23 1609202470 0.83 1.00
Raised ctsunk head tap sc
24 1609202471 0.83 1.00
Rubber Plug
25 1609202472 0.83 1.00
Cover SUNNY SIDE
26 1609202473 0.83 1.00
Washer
27 1609202474 0.83 1.00
Socket head cap screw DIN 912-M5x45
28 1609202475 0.83 1.00
Needle-Roller Bearing
29 1609202476 0.83 1.00
groove ball bearing DIN 625-629-2Z
30 1609202477 0.83 1.00
Spring retaining ring
31 1609202478 0.83 1.00
Bushing
32 1609202479 0.83 1.00
Needle-Roller Bearing
33 1609202480 0.83 1.00
Cover Plate
34 1609202481 0.83 1.00
Toothed lock washer
35 1609202482 0.83 1.00
Raised counters head screw
36 1609202483 0.83 1.00
Half-Length-Tpr.Grvd. Pin
37 1609202484 0.83 1.00
Raised ctsunk head tap sc
38 1609202485 0.83 1.00
Sealing cap
39 1609202486 0.83 1.00
Insulation Tubing
40 1609202487 0.83 1.00
No longer available, no replacement
51 1609202521
No longer available, no replacement
52 1609202522
Spring retaining ring
53 1609202488 0.83 1.00
Compression Spring
54 1609202489 0.83 1.00
Cover Plate
55 1609202490 0.83 1.00
groove ball bearing DIN 625-6202-RS
56 1609202491 0.83 1.00
Bushing
57 1609202492 0.83 1.00
Catch Disk
58 1609202493 0.83 1.00
Spring Washer
59 1609202494 0.83 1.00
Washer
60 1609202495 0.83 1.00
Double Spur Wheel Z=45
61 1609202496 0.83 1.00
Coupling
62 1609202497 0.83 1.00
Cylindrical Gear Z=31
64 1609202499 0.83 1.00
Washer
65 1609202500 0.83 1.00
Ball
66 1609202501 0.83 1.00
Intermediate Wheel Z=22
67 1609202502 0.83 1.00
Washer
68 1609202503 0.83 1.00
Pinion
69 1609202504 0.83 1.00
Jack Shaft
70 1609202505 0.83 1.00
Intermediate Wheel Z=21
71 1609202506 0.83 1.00
Half-Length Grooved Pin
72 1609202507 0.83 1.00
groove ball bearing DIN 625-626
74 1609202509 0.83 1.00
Locating Washer
75 1609202510 0.83 1.00
Gear Housing
76 1609202511 0.83 1.00
Socket head cap screw DIN 912-M5x22
77 1609202512 0.83 1.00
Needle Roller A 3x15,8G2DIN5402
78 1903201044 1.94 2.35
Locking Washer
79 1609202514 0.83 1.00
Washer
80 1609202515 0.83 1.00
Control Lever
81 1609202516 0.83 1.00
Sealing disk
82 1609202517 0.83 1.00
Crank Rod
83 1609202518 0.83 1.00
No information available, not orderable
84 1609202519
Compression Spring
85 1609202520 0.83 1.00
Auxiliary Handle
750 1619PB4323 7.58 9.17
No longer available, no replacement
751 1613001005
No longer available, no replacement
752 1608571055
Chuck Wrench SG2
752/800 2607950007 5.33 6.45
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000227 20.42 24.71
Carbon-Brush Set
808 1609202523 0.83 1.00
Nameplate
888 160111A3H3 1.94 2.35
