Here you will find all available parts and drawings of the 'Bosch 0603241503 (SB400)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

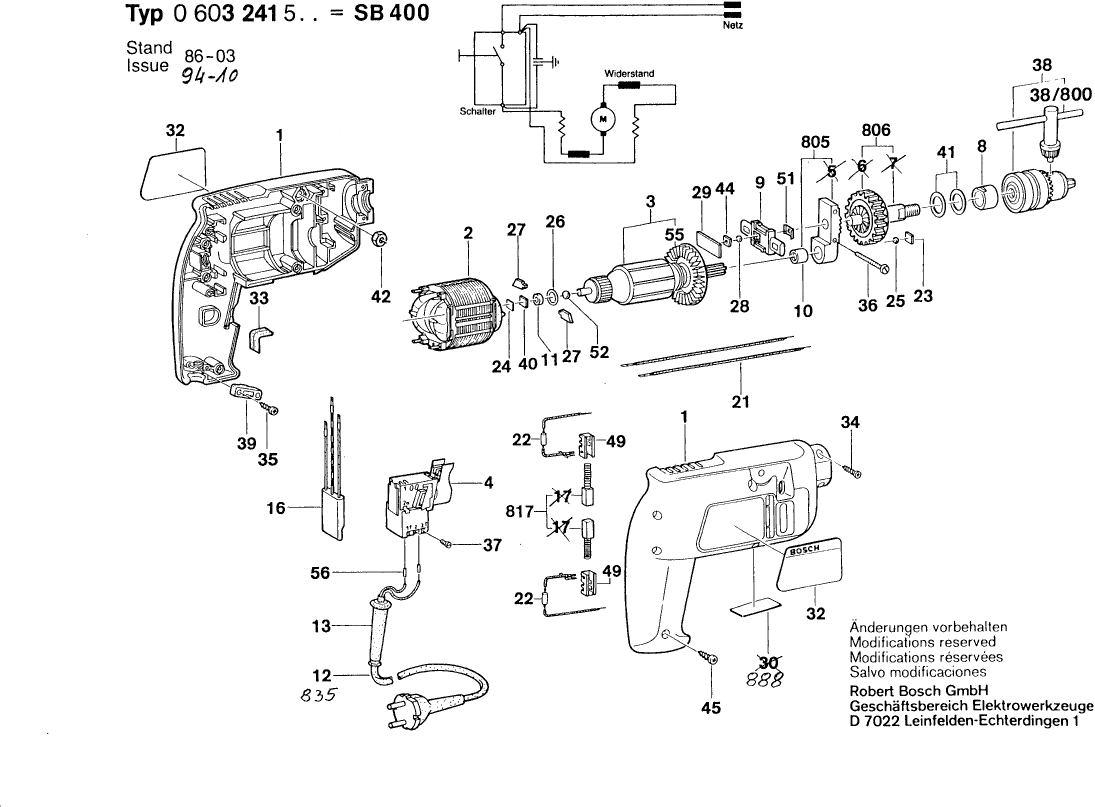

Technical drawing of model Bosch 0603241503 (SB400)
Spare parts list of model Bosch 0603241503 (SB400)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104185 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 2 | 2604220423 | |||
| Armature | ||||
| 3 | 2604010547 | 34.82 | 42.13 | |
| Switch | ||||
| 4 | 2607200084 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 8 | 2600301021 | |||
| Adjusting Slide | ||||
| 9 | 2601020006 | 2.08 | 2.52 | |
| Needle-Roller Bearing | ||||
| 10 | 2600917003 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 11 | 1900301004 | |||
| Grommet | ||||
| 13 | 2600707059 | 3.44 | 4.16 | |
| Grommet | ||||
| 13 | 2600707061 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 16 | 2607329095 | |||
| Connecting Cable | ||||
| 21 | 2604448000 | 1.49 | 1.80 | |
| Suppressor Box | ||||
| 22 | 2604465030 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 23 | 1601000013 | |||
| No longer available, no replacement | ||||
| 24 | 2601000018 | |||
| Ball | ||||
| 25 | 1903230009 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 26 | 1610210014 | |||
| Lubricating Felt | ||||
| 27 | 2601020005 | 1.49 | 1.80 | |
| Ball | ||||
| 28 | 1903230011 | 2.40 | 2.90 | |
| Intermediate Plate | ||||
| 29 | 2601000032 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 32 | 2601110470 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 33 | 2601022000 | |||
| Torx Oval-Head Screw | ||||
| 34 | 2603490018 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 35 | 2910611019 | 2.86 | 3.46 | |
| Torx Oval-Head Screw | ||||
| 36 | 2603490025 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 37 | 2603410001 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 38 | 1608571047 | |||
| Chuck Wrench | ||||
| 38/800 | 2607950007 | 6.73 | 8.14 | |
| Cable Clip | ||||
| 39 | 2601035001 | 1.49 | 1.80 | |
| Pressure Plate | ||||
| 40 | 2601000019 | 1.49 | 1.80 | |
| Shim | ||||
| 41 | 2000101600 | 1.49 | 1.80 | |
| Shim | ||||
| 41 | 2600101613 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 42 | 2915011007 | 1.00 | 1.21 | |
| Pressure Plate | ||||
| 44 | 2601074001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 45 | 2912401020 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 49 | 2604330016 | |||
| Disc Spring | ||||
| 51 | 2601290014 | 1.00 | 1.21 | |
| Ball | ||||
| 52 | 1903230002 | 2.08 | 2.52 | |
| Component | ||||
| 55 | 2606610047 | 1.00 | 1.21 | |
| End Splice | ||||
| 56 | 1900452012 | 1.49 | 1.80 | |
| Bearing Bracket | ||||
| 805 | 2605807901 | 14.94 | 18.08 | |
| No longer available, no replacement | ||||
| 806 | 2606135903 | |||
| Carbon-Brush Set | ||||
| 817 | 2604321904 | 9.67 | 11.70 | |
| Power supply cord | ||||
| 835 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
