Here you will find all available parts and drawings of the 'Bosch 0601190021 ( S500 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

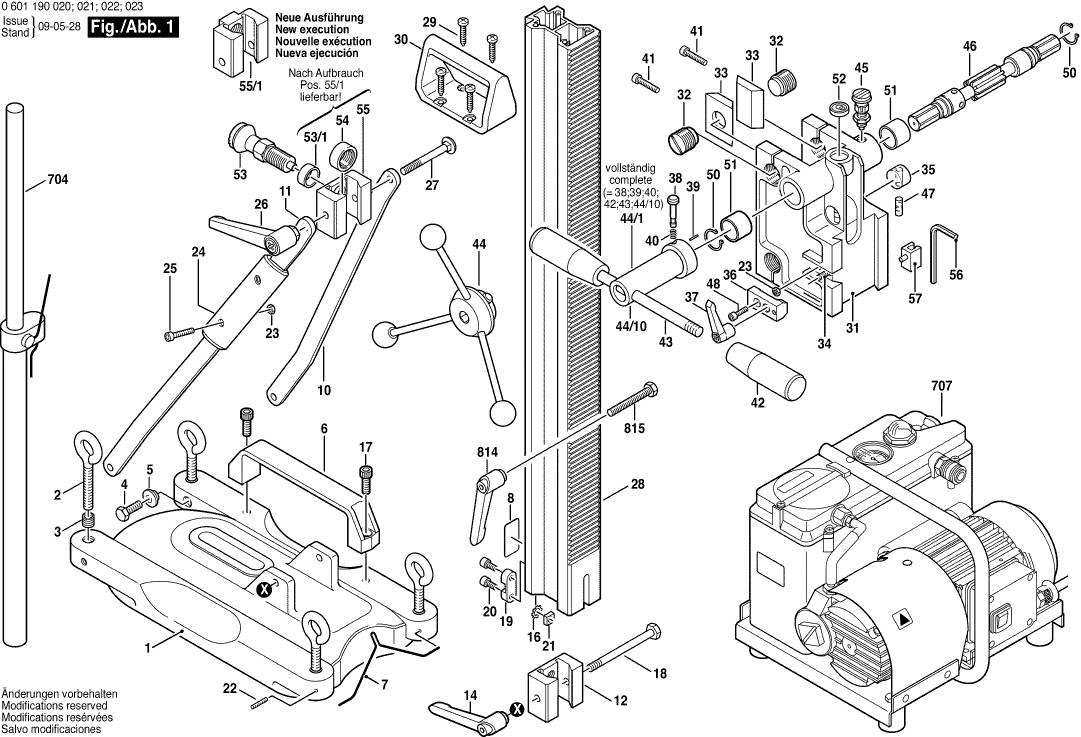

Technical drawing of model Bosch 0601190021 ( S500 )

Spare parts list of model Bosch 0601190021 ( S500 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Base Plate
1 1609203662 271.34 328.32
Lifting Eye Bolt
2 1609203663 4.70 5.69
Threaded Insert
3 1609203664 5.83 7.05
Hex Screw
4 1609203665 1.18 1.43
Headed Bush
5 1609203666 9.53 11.53
Handle
6 1609203667 23.75 28.74
Position Pickup
7 1609203668 9.53 11.53
Nameplate
8 1601106902 0.83 1.00
Support
10 1609203670 15.71 19.01
Support
11 1609203671 15.71 19.01
Clamping Piece
12 1609203672 12.41 15.02
Clamping Lever
14 1609203674 10.73 12.98
Serrated Lock-Washer
16 1609203676 1.18 1.43
Hex Socket Head Cap Screw
17 1609203677 1.18 1.43
Hex Screw
18 1609203678 3.31 4.01
Parallel Key
19 1609203679 10.73 12.98
Hex Socket Head Cap Screw
20 1609203680 1.18 1.43
Square Nut
21 1609203681 1.18 1.43
Set screw
22 1609203682 1.18 1.43
Hex Nut
23 1609203683 1.18 1.43
Handle
24 1609203684 2.71 3.28
Socket head cap screw DIN 84ZN-M4x25
25 1609203685 1.18 1.43
Clamping Lever
26 1609203686 44.82 54.23
Round-Head Bolt
27 1609203687 1.94 2.35
Column
28 1609203688 304.19 368.07
Tapping Screw
29 1609203689 1.18 1.43
Strap-Shaped Handle
30 1609203690 7.58 9.17
Guide Block
31 1609203691 271.34 328.32
Adjusting Screw
32 1609203692 20.42 24.71
Guide Component
33 1609203693 2.71 3.28
Set screw
34 1609203694 1.18 1.43
Protective Glass
35 1609203695 49.56 59.97
Clamping Piece
36 1609203696 44.82 54.23
Clamping Lever
37 1609203697 15.71 19.01
Detent Pin
38 1609203699 1.18 1.43
Coiled Spring Pin
39 1609203700 1.94 2.35
Compression Spring
40 1609203701 1.18 1.43
Hex Socket Head Cap Screw
41 1609203702 13.93 16.86
cylindrical knob BLACK
42 1609203703 26.84 32.48
Feed Lever
43 1609203704 73.72 89.20
Rotary Cross 3-POLE
44 1609203H33 130.32 157.69
Rotary Cross 3-POLE
44/1 1609203H33 130.32 157.69
Carrier
44/10 1609203705 15.71 19.01
Locking Bolt
45 1609203706 23.75 28.74
Toothed Shaft
46 1609203707 23.75 28.74
Spirit Level
47 1609203708 0.83 1.00
Socket head cap screw DIN 84ZN-M4x25
48 1609203685 1.18 1.43
Spring retaining ring
50 1609203711 7.58 9.17
Main Bearing
51 1609203712 5.33 6.45
Box Level
52 1609203713 5.33 6.45
Detent Pin
53 1609203777 55.25 66.85
Spacer bushing
53/1 1609203778 3.31 4.01
Threaded Plate
54 1609203779 20.42 24.71
Clamping Piece
55 1609203780 15.71 19.01
Clamping Piece
55/1 1609203H46 15.71 19.01
Offset Screwdriver
56 1907950006 3.12 3.78
Hexagon Socket Screw Key 5 MM
56 2610364015 2.71 3.28
Location Piece
57 1609203B18 5.33 6.45
Transport Reel
90 1609203F74 233.78 282.87
Support
90/10 1609203N96 91.56 110.79
Support
90/20 1609203N97 91.56 110.79
Plain Washer
90/30 1609203P27 1.18 1.43
Plain Washer
90/31 1609203N98 7.58 9.17
Hex Screw
90/40 1609203P26 1.94 2.35
Axle
90/50 1609203N99 36.85 44.59
O-Ring
90/60 1609203P08 1.94 2.35
Toothed Ring
90/70 1609203P28 1.70 2.06
Wheel
90/80 1609203P07 23.75 28.74
Spring retaining ring
90/90 1609203P00 4.10 4.96
No information available, not orderable
701 2609390310
Hex Screw DIN 931-M8x70
701/1 2911011260 0.83 1.00
Clamping Piece
701/10 2609390331 13.93 16.86
Hex Nut DIN 985-M8-8
701/11 2915061005 1.94 2.35
Clamping Saddle
701/12 2609390332 44.82 54.23
Bent-Lever Closure
701/13 2609390333 15.71 19.01
Seal Ring
701/14 2609390334 11.88 14.37
Countersunk-Head Screw DIN 965-M4x8MM
701/15 2910871118 0.83 1.00
Suction Connector
701/16 2609390335 209.26 253.20
Lid Ring
701/18 2609390337 73.72 89.20
Spacer bushing
701/2 2609390325 9.53 11.53
Clamping Lever M 6
701/3 2609390326 12.41 15.02
Lifting Eye Bolt M 10x80 MM
701/4 2609390327 8.45 10.22
Support Element 22x8 MM
701/5 2609390328 1.94 2.35
Clamping Saddle
701/6 2609390329 44.82 54.23
Clamping Piece
701/7 2609390330 13.93 16.86
Hex Screw DIN 931-M8x80
701/8 2911011262 3.31 4.01
Coiled Spring Pin 3 x 14MM
701/9 2917800078 0.83 1.00
No information available, not orderable
704 2608598111
No longer available, no replacement
705 2607000744
No longer available, no replacement
705/1 2607000746
No longer available, no replacement
706 2607000745
No longer available, no replacement
706/1 2607000747
No longer available, no replacement
707 0601191003
No information available, not orderable
708 2609390314
Fitting
708/1 2609390377 441.61 534.35
Hose fitting 1/4"
708/11 2609390359 8.45 10.22
Sealing disk
708/12 2609390360 1.94 2.35
Sealing Cone
708/13 2609390361 15.71 19.01
O-Ring 7x2,72 MM
708/14 2609390362 4.70 5.69
Compression Spring
708/15 2609390363 3.31 4.01
Pressure gauge
708/16 2609390364 29.75 36.00
Push-Button
708/17 2609390365 26.84 32.48
Locking Washer DIN 6799-4-FST
708/18 2916089057 0.83 1.00
Rotary Handle
708/19 2609390366 23.75 28.74
Flexible Connection
708/2 2609390378 60.65 73.39
Compression Spring
708/21 2609390367 8.45 10.22
Bleeder Plug
708/22 2609390368 29.75 36.00
Base Body
708/23 2609390369 168.86 204.32
Coiled Spring Pin DIN-EN/28750-4x16
708/24 2917800097 0.83 1.00
Lock Bolt
708/25 2609390370 33.45 40.47
Retaining Pin
708/26 2609390371 18.19 22.01
Seal Ring
708/27 2609390372 9.53 11.53
Hose
708/28 2609390373 40.61 49.14
Insert Nipple 1/4"
708/29 2609390374 5.33 6.45
Seal Ring
708/3 2609390376 23.75 28.74
Hose Clamper
708/30 2609390375 2.71 3.28
No information available, not orderable
717 2609390311
Seal Carrier
802 2609390356 91.56 110.79
Holding Device
803 1609203878 101.94 123.35
Clamping Lever
814 1609203674 10.73 12.98
Hex Screw
815 1609203675 1.94 2.35
