Here you will find all available parts and drawings of the 'Bosch 0601190020 (S500)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

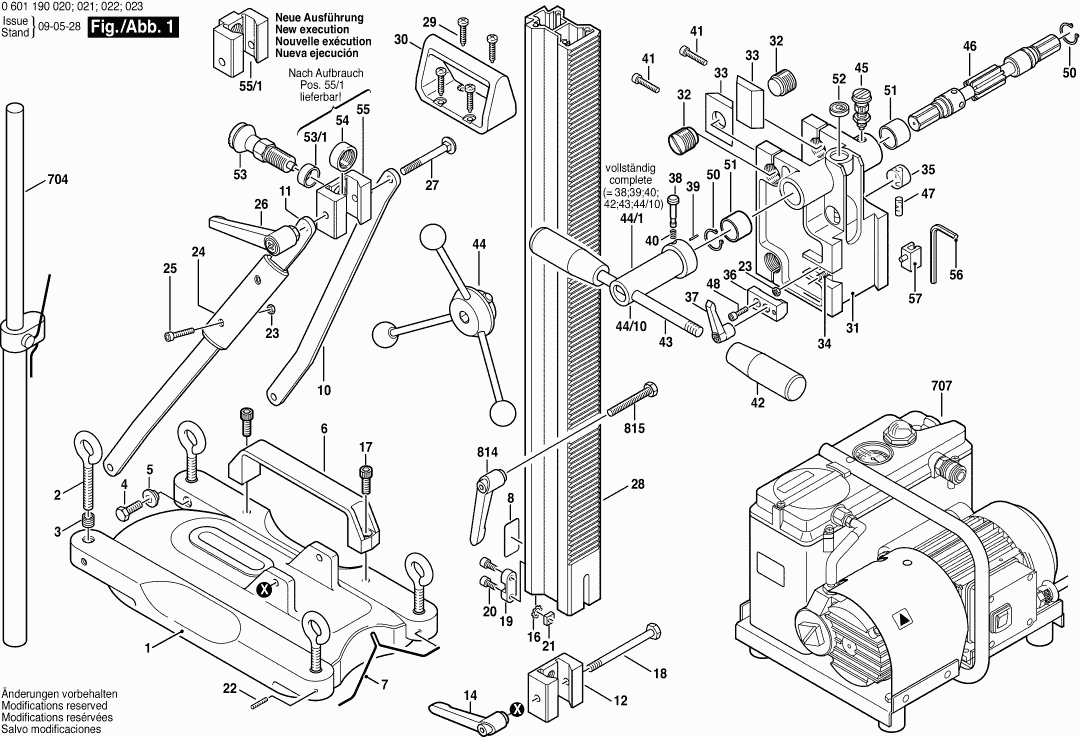

Technical drawing of model Bosch 0601190020 (S500)
Spare parts list of model Bosch 0601190020 (S500)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Base Plate | ||||
| 1 | 1609203662 | 271.34 | 328.32 | |
| Lifting Eye Bolt | ||||
| 2 | 1609203663 | 5.27 | 6.38 | |
| Threaded Insert | ||||
| 3 | 1609203664 | 6.53 | 7.90 | |
| Hex Screw | ||||
| 4 | 1609203665 | 1.32 | 1.60 | |
| Headed Bush | ||||
| 5 | 1609203666 | 10.68 | 12.92 | |
| Handle | ||||
| 6 | 1609203667 | 26.62 | 32.21 | |
| Position Pickup | ||||
| 7 | 1609203668 | 9.53 | 11.53 | |
| Nameplate | ||||
| 8 | 1601106902 | 0.83 | 1.00 | |
| Support | ||||
| 10 | 1609203670 | 17.60 | 21.30 | |
| Support | ||||
| 11 | 1609203671 | 17.60 | 21.30 | |
| Clamping Piece | ||||
| 12 | 1609203672 | 13.90 | 16.82 | |
| Clamping Lever | ||||
| 14 | 1609203674 | 11.02 | 13.33 | |
| Serrated Lock-Washer | ||||
| 16 | 1609203676 | 1.32 | 1.60 | |
| Hex Socket Head Cap Screw | ||||
| 17 | 1609203677 | 1.32 | 1.60 | |
| Hex Screw | ||||
| 18 | 1609203678 | 3.71 | 4.49 | |
| Parallel Key | ||||
| 19 | 1609203679 | 11.02 | 13.33 | |
| Hex Socket Head Cap Screw | ||||
| 20 | 1609203680 | 1.32 | 1.60 | |
| Square Nut | ||||
| 21 | 1609203681 | 1.32 | 1.60 | |
| Set screw | ||||
| 22 | 1609203682 | 1.32 | 1.60 | |
| Hex Nut | ||||
| 23 | 1609203683 | 1.32 | 1.60 | |
| Handle | ||||
| 24 | 1609203684 | 3.04 | 3.68 | |
| Socket head cap screw DIN 84ZN-M4x25 | ||||
| 25 | 1609203685 | 1.32 | 1.60 | |
| Clamping Lever | ||||
| 26 | 1609203686 | 50.23 | 60.78 | |
| Round-Head Bolt | ||||
| 27 | 1609203687 | 2.18 | 2.64 | |
| Column | ||||
| 28 | 1609203688 | 304.19 | 368.07 | |
| Tapping Screw | ||||
| 29 | 1609203689 | 1.32 | 1.60 | |
| Strap-Shaped Handle | ||||
| 30 | 1609203690 | 8.48 | 10.26 | |
| Guide Block | ||||
| 31 | 1609203691 | 304.15 | 368.02 | |
| Adjusting Screw | ||||
| 32 | 1609203692 | 22.88 | 27.68 | |
| Guide Component | ||||
| 33 | 1609203693 | 3.04 | 3.68 | |
| Set screw | ||||
| 34 | 1609203694 | 1.32 | 1.60 | |
| Protective Glass | ||||
| 35 | 1609203695 | 55.56 | 67.23 | |
| Clamping Piece | ||||
| 36 | 1609203696 | 50.23 | 60.78 | |
| Clamping Lever | ||||
| 37 | 1609203697 | 17.60 | 21.30 | |
| Detent Pin | ||||
| 38 | 1609203699 | 1.18 | 1.43 | |
| Coiled Spring Pin | ||||
| 39 | 1609203700 | 1.94 | 2.35 | |
| Compression Spring | ||||
| 40 | 1609203701 | 1.18 | 1.43 | |
| Hex Socket Head Cap Screw | ||||
| 41 | 1609203702 | 15.61 | 18.89 | |
| cylindrical knob BLACK | ||||
| 42 | 1609203703 | 26.84 | 32.48 | |
| Feed Lever | ||||
| 43 | 1609203704 | 73.72 | 89.20 | |
| Rotary Cross 3-POLE | ||||
| 44 | 1609203H33 | 146.07 | 176.74 | |
| Rotary Cross 3-POLE | ||||
| 44/1 | 1609203H33 | 146.07 | 176.74 | |
| Carrier | ||||
| 44/10 | 1609203705 | 15.71 | 19.01 | |
| Locking Bolt | ||||
| 45 | 1609203706 | 26.62 | 32.21 | |
| Toothed Shaft | ||||
| 46 | 1609203707 | 26.62 | 32.21 | |
| Spirit Level | ||||
| 47 | 1609203708 | 1.00 | 1.21 | |
| Socket head cap screw DIN 84ZN-M4x25 | ||||
| 48 | 1609203685 | 1.32 | 1.60 | |
| Spring retaining ring | ||||
| 50 | 1609203711 | 8.48 | 10.26 | |
| Main Bearing | ||||
| 51 | 1609203712 | 5.96 | 7.21 | |
| Box Level | ||||
| 52 | 1609203713 | 5.96 | 7.21 | |
| Detent Pin | ||||
| 53 | 1609203777 | 55.25 | 66.85 | |
| Spacer bushing | ||||
| 53/1 | 1609203778 | 3.31 | 4.01 | |
| Threaded Plate | ||||
| 54 | 1609203779 | 20.42 | 24.71 | |
| Clamping Piece | ||||
| 55 | 1609203780 | 15.71 | 19.01 | |
| Clamping Piece | ||||
| 55/1 | 1609203H46 | 17.60 | 21.30 | |
| Transport Reel | ||||
| 90 | 1609203F74 | 262.05 | 317.08 | |
| Support | ||||
| 90/10 | 1609203N96 | 102.63 | 124.18 | |
| Support | ||||
| 90/20 | 1609203N97 | 102.63 | 124.18 | |
| Plain Washer | ||||
| 90/30 | 1609203P27 | 1.32 | 1.60 | |
| Plain Washer | ||||
| 90/31 | 1609203N98 | 8.48 | 10.26 | |
| Hex Screw | ||||
| 90/40 | 1609203P26 | 2.18 | 2.64 | |
| Axle | ||||
| 90/50 | 1609203N99 | 41.30 | 49.97 | |
| O-Ring | ||||
| 90/60 | 1609203P08 | 2.18 | 2.64 | |
| Toothed Ring | ||||
| 90/70 | 1609203P28 | 1.90 | 2.30 | |
| Wheel | ||||
| 90/80 | 1609203P07 | 26.62 | 32.21 | |
| Spring retaining ring | ||||
| 90/90 | 1609203P00 | 4.10 | 4.96 | |
| No information available, not orderable | ||||
| 701 | 2609390310 | |||
| Hex Screw DIN 931-M8x70 | ||||
| 701/1 | 2911011260 | 0.83 | 1.00 | |
| Clamping Piece | ||||
| 701/10 | 2609390331 | 15.61 | 18.89 | |
| Hex Nut | ||||
| 701/11 | 2915061005 | 2.40 | 2.90 | |
| Clamping Saddle | ||||
| 701/12 | 2609390332 | 50.23 | 60.78 | |
| Bent-Lever Closure | ||||
| 701/13 | 2609390333 | 17.60 | 21.30 | |
| Seal Ring | ||||
| 701/14 | 2609390334 | 12.21 | 14.77 | |
| Countersunk-Head Screw DIN 965-M4x8MM | ||||
| 701/15 | 2910871118 | 0.83 | 1.00 | |
| Suction Connector | ||||
| 701/16 | 2609390335 | 234.56 | 283.82 | |
| Lid Ring | ||||
| 701/18 | 2609390337 | 82.63 | 99.98 | |
| Spacer bushing | ||||
| 701/2 | 2609390325 | 9.53 | 11.53 | |
| Clamping Lever M 6 | ||||
| 701/3 | 2609390326 | 12.41 | 15.02 | |
| Lifting Eye Bolt M 10x80 MM | ||||
| 701/4 | 2609390327 | 9.47 | 11.46 | |
| Support Element 22x8 MM | ||||
| 701/5 | 2609390328 | 2.18 | 2.64 | |
| Clamping Saddle | ||||
| 701/6 | 2609390329 | 50.23 | 60.78 | |
| Clamping Piece | ||||
| 701/7 | 2609390330 | 15.61 | 18.89 | |
| Hex Screw DIN 931-M8x80 | ||||
| 701/8 | 2911011262 | 3.31 | 4.01 | |
| Coiled Spring Pin 3 x 14MM | ||||
| 701/9 | 2917800078 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 704 | 2608598111 | |||
| No longer available, no replacement | ||||
| 705 | 2607000744 | |||
| No longer available, no replacement | ||||
| 705/1 | 2607000746 | |||
| No longer available, no replacement | ||||
| 706 | 2607000745 | |||
| No longer available, no replacement | ||||
| 706/1 | 2607000747 | |||
| No longer available, no replacement | ||||
| 707 | 0601191003 | |||
| No information available, not orderable | ||||
| 708 | 2609390314 | |||
| Fitting | ||||
| 708/1 | 2609390377 | 495.00 | 598.95 | |
| Hose fitting 1/4" | ||||
| 708/11 | 2609390359 | 8.45 | 10.22 | |
| Sealing disk | ||||
| 708/12 | 2609390360 | 1.94 | 2.35 | |
| Sealing Cone | ||||
| 708/13 | 2609390361 | 15.71 | 19.01 | |
| O-Ring 7x2,72 MM | ||||
| 708/14 | 2609390362 | 5.27 | 6.38 | |
| Compression Spring | ||||
| 708/15 | 2609390363 | 3.71 | 4.49 | |
| Pressure gauge | ||||
| 708/16 | 2609390364 | 29.75 | 36.00 | |
| Push-Button | ||||
| 708/17 | 2609390365 | 26.84 | 32.48 | |
| Locking Washer DIN 6799-4-FST | ||||
| 708/18 | 2916089057 | 0.83 | 1.00 | |
| Rotary Handle | ||||
| 708/19 | 2609390366 | 26.62 | 32.21 | |
| Flexible Connection | ||||
| 708/2 | 2609390378 | 67.98 | 82.26 | |
| Compression Spring | ||||
| 708/21 | 2609390367 | 8.45 | 10.22 | |
| Bleeder Plug | ||||
| 708/22 | 2609390368 | 29.75 | 36.00 | |
| Base Body | ||||
| 708/23 | 2609390369 | 168.86 | 204.32 | |
| Coiled Spring Pin DIN-EN/28750-4x16 | ||||
| 708/24 | 2917800097 | 1.00 | 1.21 | |
| Lock Bolt | ||||
| 708/25 | 2609390370 | 37.50 | 45.38 | |
| Retaining Pin | ||||
| 708/26 | 2609390371 | 20.39 | 24.67 | |
| Seal Ring | ||||
| 708/27 | 2609390372 | 10.68 | 12.92 | |
| Hose | ||||
| 708/28 | 2609390373 | 40.61 | 49.14 | |
| Insert Nipple 1/4" | ||||
| 708/29 | 2609390374 | 5.96 | 7.21 | |
| Seal Ring | ||||
| 708/3 | 2609390376 | 26.62 | 32.21 | |
| Hose Clamper | ||||
| 708/30 | 2609390375 | 2.71 | 3.28 | |
| No information available, not orderable | ||||
| 717 | 2609390311 | |||
| Seal Carrier | ||||
| 802 | 2609390356 | 102.63 | 124.18 | |
| Holding Device | ||||
| 803 | 1609203878 | 114.26 | 138.25 | |
| Clamping Lever | ||||
| 814 | 1609203674 | 11.02 | 13.33 | |
| Hex Screw | ||||
| 815 | 1609203675 | 2.18 | 2.64 | |
