Here you will find all available parts and drawings of the 'Bosch F012MD0549 ( RZ5 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

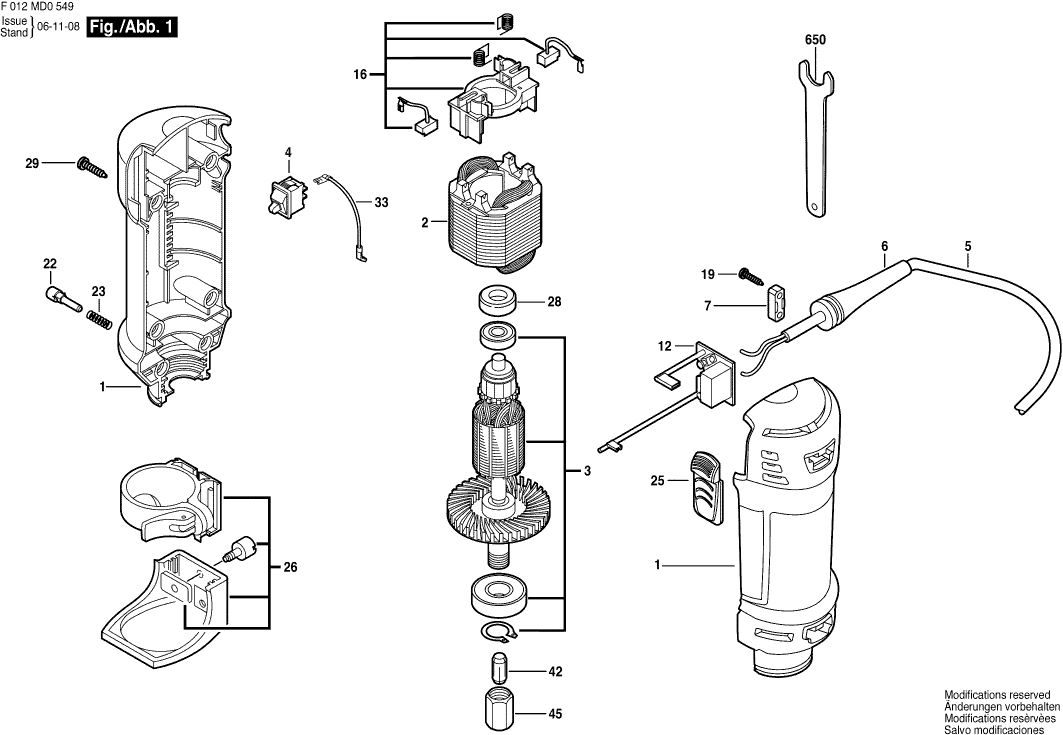

Technical drawing of model Bosch F012MD0549 ( RZ5 )
Spare parts list of model Bosch F012MD0549 ( RZ5 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2610936485 | 36.85 | 44.59 | |
| Field 230V | ||||
| 2 | 2610941189 | 33.45 | 40.47 | |
| Armature 230V | ||||
| 3 | 2610941190 | 67.25 | 81.37 | |
| Switch | ||||
| 4 | 2610933516 | 5.33 | 6.45 | |
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2600703017 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2610938416 | 1.94 | 2.35 | |
| Condenser | ||||
| 12 | 2610938417 | 18.19 | 22.01 | |
| Brush Holder | ||||
| 16 | 2610942204 | 36.85 | 44.59 | |
| Screw ST3,9x19 | ||||
| 19 | 2610315386 | 1.18 | 1.43 | |
| Shaft | ||||
| 22 | 2610933930 | 1.70 | 2.06 | |
| Spring | ||||
| 23 | 2610921932 | 1.70 | 2.06 | |
| Push-Button Switch | ||||
| 25 | 2610920220 | 5.33 | 6.45 | |
| Depth-Gauge | ||||
| 26 | 2610907950 | 12.41 | 15.02 | |
| Sleeve | ||||
| 28 | 2610968477 | 2.71 | 3.28 | |
| Screw | ||||
| 29 | 1619X00504 | 0.83 | 1.00 | |
| Connecting Cable | ||||
| 33 | 2610921383 | 3.31 | 4.01 | |
| Collet 5/32" | ||||
| 42 | 2610924080 | 5.83 | 7.05 | |
| Nut | ||||
| 45 | 2610909203 | 5.83 | 7.05 | |
| Chuck Wrench | ||||
| 650 | 2610907966 | 1.70 | 2.06 | |
