Here you will find all available parts and drawings of the 'Bosch 3600H81D40 ( ROTAK43 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

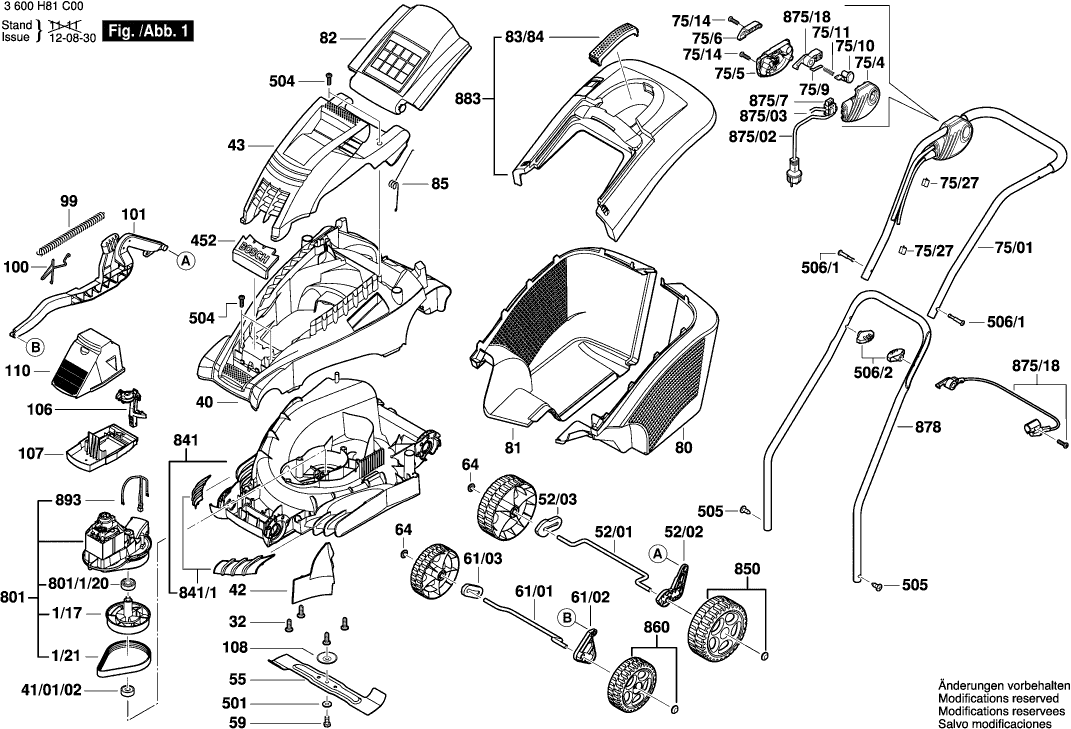

Technical drawing of model Bosch 3600H81D40 ( ROTAK43 )
Spare parts list of model Bosch 3600H81D40 ( ROTAK43 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Drive Shaft | ||||
| 1/17 | F016L65108 | 10.73 | 12.98 | |
| Drive Belt | ||||
| 1/21 | F016L65109 | 12.41 | 15.02 | |
| Self-Cutting Screw | ||||
| 32 | F016L37433 | 0.83 | 1.00 | |
| Mower deck | ||||
| 40 | F016L66159 | 33.45 | 40.47 | |
| Bearing 6003 | ||||
| 41/01/02 | F016L64387 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 42 | F016L66041 | |||
| Motor Hood | ||||
| 43 | F016L65159 | 23.75 | 28.74 | |
| Axle | ||||
| 52/01 | F016L65931 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 52/02 | F016L90582 | |||
| Spacer | ||||
| 52/03 | F016L90583 | 1.18 | 1.43 | |
| Cutter Blade | ||||
| 55 | F016L65924 | 29.75 | 36.00 | |
| Screw and washer assembly | ||||
| 59 | F016104350 | 0.83 | 1.00 | |
| Axle | ||||
| 61/01 | F016L65163 | 7.58 | 9.17 | |
| Lever | ||||
| 61/02 | F016L90581 | 5.33 | 6.45 | |
| Spacer | ||||
| 61/03 | F016L90585 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 64 | F016F05700 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 75/01 | F016L66181 | |||
| Push-Button | ||||
| 75/10 | F016F05705 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 75/11 | F016T49226 | |||
| Cable Clip | ||||
| 75/27 | F016L90575 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 75/4 | F016L65739 | |||
| Switch Housing | ||||
| 75/5 | F016L66235 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 75/6 | F016T49630 | |||
| No longer available, no replacement | ||||
| 75/9 | F016T49845 | |||
| Collector Box Bottom L/H | ||||
| 80 | F016L64304 | 18.19 | 22.01 | |
| Collector Box Bottom R/H | ||||
| 81 | F016L64338 | 12.41 | 15.02 | |
| Guard Flap | ||||
| 82 | F016L66137 | 8.45 | 10.22 | |
| Handle | ||||
| 83/84 | F016F05683 | 0.83 | 1.00 | |
| Spring | ||||
| 85 | F016L66165 | 1.70 | 2.06 | |
| Spring | ||||
| 99 | F016L59327 | 2.24 | 2.71 | |
| Spring | ||||
| 100 | F016L65790 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 101 | F016L65971 | |||
| No longer available, no replacement | ||||
| 106 | F016L90579 | |||
| Filter Housing | ||||
| 107 | F016L65539 | 8.45 | 10.22 | |
| No longer available, no replacement | ||||
| 108 | F016L67627 | |||
| Filter Housing | ||||
| 110 | F016L65709 | 4.10 | 4.96 | |
| Company Logo ROTAK 43 | ||||
| 452 | F016L66273 | 1.94 | 2.35 | |
| Plain Washer Ø8,15 BLACK | ||||
| 501 | F016T48185 | 2.71 | 3.28 | |
| Self-Cutting Screw 4x19 MM | ||||
| 504 | F016T49429 | 0.83 | 1.00 | |
| Screw M5x8 Csk Hd. | ||||
| 505 | F016L36542 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 506/1 | F016L59277 | |||
| Wing Nut | ||||
| 506/2 | F016L66136 | 3.31 | 4.01 | |
| Motor | ||||
| 801 | F016103596 | 148.65 | 179.87 | |
| Bearing | ||||
| 801/1/20 | F016L64594 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 841 | F016103600 | |||
| Cover | ||||
| 841/1 | F016104318 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 850 | F016103992 | |||
| Wheel | ||||
| 860 | F016103994 | 10.73 | 12.98 | |
| Power supply cord | ||||
| 875/02 | F016L66967 | 0.83 | 1.00 | |
| Connecting Cable | ||||
| 875/03 | F016103602 | 10.73 | 12.98 | |
| No longer available, no replacement | ||||
| 875/18 | F016103601 | |||
| On-Off Switch | ||||
| 875/7 | F016F05717 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 878 | F016L65166 | |||
| Cover | ||||
| 883 | F016103608 | 23.75 | 28.74 | |
| Thermal protector | ||||
| 893 | F016103605 | 9.53 | 11.53 | |
