Here you will find all available parts and drawings of the 'Bosch 3600H81H00 ( ROTAK43LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

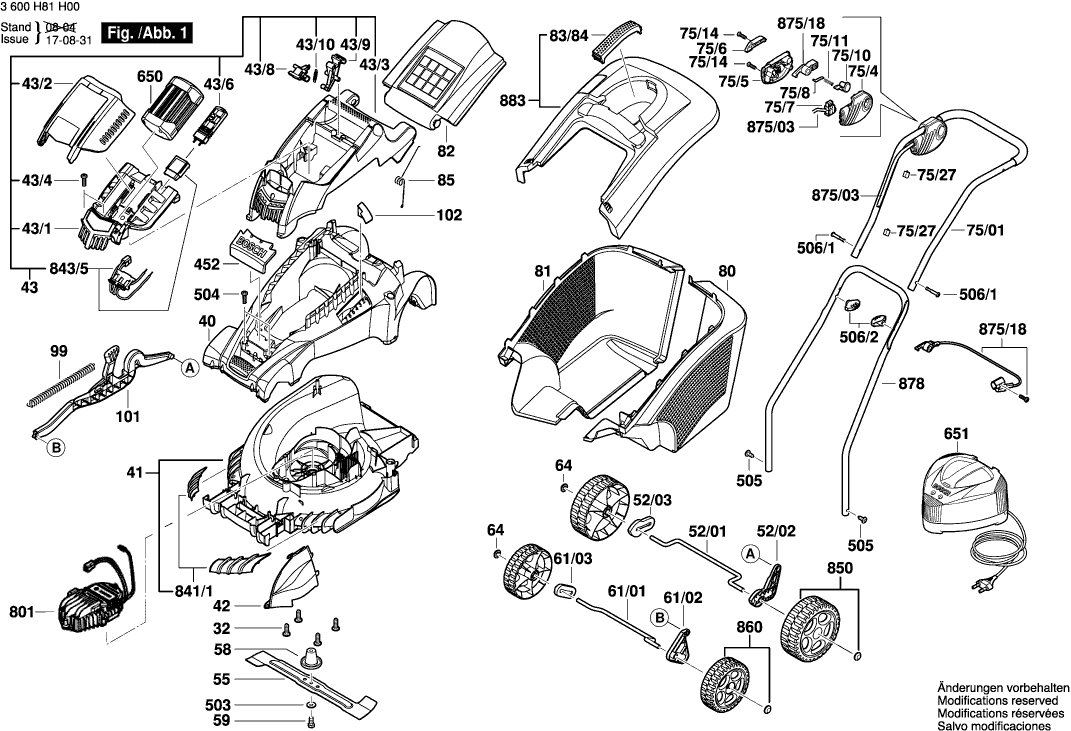

Technical drawing of model Bosch 3600H81H00 ( ROTAK43LI )
Spare parts list of model Bosch 3600H81H00 ( ROTAK43LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 32 | F016L66162 | 0.83 | 1.00 | |
| Mower deck | ||||
| 40 | F016L66159 | 33.45 | 40.47 | |
| Housing | ||||
| 41 | F016L65989 | 44.82 | 54.23 | |
| No longer available, no replacement | ||||
| 42 | F016L66041 | |||
| Motor Hood | ||||
| 43 | F016L66780 | 73.72 | 89.20 | |
| Battery Tray | ||||
| 43/1 | F016L65952 | 29.75 | 36.00 | |
| No longer available, no replacement | ||||
| 43/10 | F016L66108 | |||
| Battery Cover | ||||
| 43/2 | F016L65954 | 9.53 | 11.53 | |
| Motor Hood | ||||
| 43/3 | F016L65953 | 18.19 | 22.01 | |
| No longer available, no replacement | ||||
| 43/6 | F016L66669 | |||
| Release Lever | ||||
| 43/8 | F016L66107 | 1.94 | 2.35 | |
| Locking Device | ||||
| 43/9 | F016L65988 | 0.83 | 1.00 | |
| Axle | ||||
| 52/01 | F016L65931 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 52/02 | F016L90582 | |||
| Spacer | ||||
| 52/03 | F016L90583 | 1.18 | 1.43 | |
| Cutter Blade | ||||
| 55 | F016L65957 | 36.85 | 44.59 | |
| No longer available, no replacement | ||||
| 58 | F016L65958 | |||
| Bolt M10x30 | ||||
| 59 | F016L66141 | 1.94 | 2.35 | |
| Axle | ||||
| 61/01 | F016L65930 | 2.24 | 2.71 | |
| Lever | ||||
| 61/02 | F016L90581 | 5.33 | 6.45 | |
| Spacer | ||||
| 61/03 | F016L90585 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 64 | F016F05700 | 1.00 | 1.21 | |
| Handle | ||||
| 75/01 | F016L66182 | 29.75 | 36.00 | |
| Push-Button | ||||
| 75/10 | F016F05705 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 75/11 | F016T49226 | |||
| Self-Cutting Screw 4x19 MM | ||||
| 75/14 | F016T49429 | 0.83 | 1.00 | |
| Cable Clip | ||||
| 75/27 | F016L90575 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 75/4 | F016L65739 | |||
| Switch Housing | ||||
| 75/5 | F016L66235 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 75/6 | F016T49630 | |||
| Switch Kit | ||||
| 75/7 | F016104163 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 75/8 | F016L66416 | |||
| Collector Box Bottom L/H | ||||
| 80 | F016L64304 | 18.19 | 22.01 | |
| Collector Box Bottom R/H | ||||
| 81 | F016L64338 | 12.41 | 15.02 | |
| Guard Flap | ||||
| 82 | F016L66137 | 8.45 | 10.22 | |
| Handle | ||||
| 83/84 | F016F05683 | 0.83 | 1.00 | |
| Spring | ||||
| 85 | F016L66165 | 1.70 | 2.06 | |
| Spring | ||||
| 99 | F016L59327 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 101 | F016L65971 | |||
| Restrictor | ||||
| 102 | F016L66111 | 2.24 | 2.71 | |
| Company Logo ROTAK 43 LI | ||||
| 452 | F016L66288 | 2.24 | 2.71 | |
| Spring Washer 1/2" | ||||
| 503 | F016L66173 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 505 | F016L65803 | |||
| No longer available, no replacement | ||||
| 506/1 | F016L59277 | |||
| Wing Nut | ||||
| 506/2 | F016L66136 | 3.31 | 4.01 | |
| Battery Pack GBA 36V 4,0Ah H-C | ||||
| 650 | 1607A350R2 | 233.78 | 282.87 | |
| Charger EU GAL 3680 CV 230/14,4-36V | ||||
| 651 | 2607226457 | 148.65 | 179.87 | |
| No longer available, no replacement | ||||
| 801 | F016104248 | |||
| Cover | ||||
| 841/1 | F016104318 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 843/5 | F016104244 | |||
| No longer available, no replacement | ||||
| 850 | F016103992 | |||
| Wheel | ||||
| 860 | F016103994 | 10.73 | 12.98 | |
| Connecting Cable | ||||
| 875/03 | F016103675 | 10.73 | 12.98 | |
| No longer available, no replacement | ||||
| 875/18 | F016103601 | |||
| No longer available, no replacement | ||||
| 878 | F016L65571 | |||
| Cover | ||||
| 883 | F016103608 | 23.75 | 28.74 | |
