Here you will find all available parts and drawings of the 'Bosch 3600H81801 ( ROTAK43LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

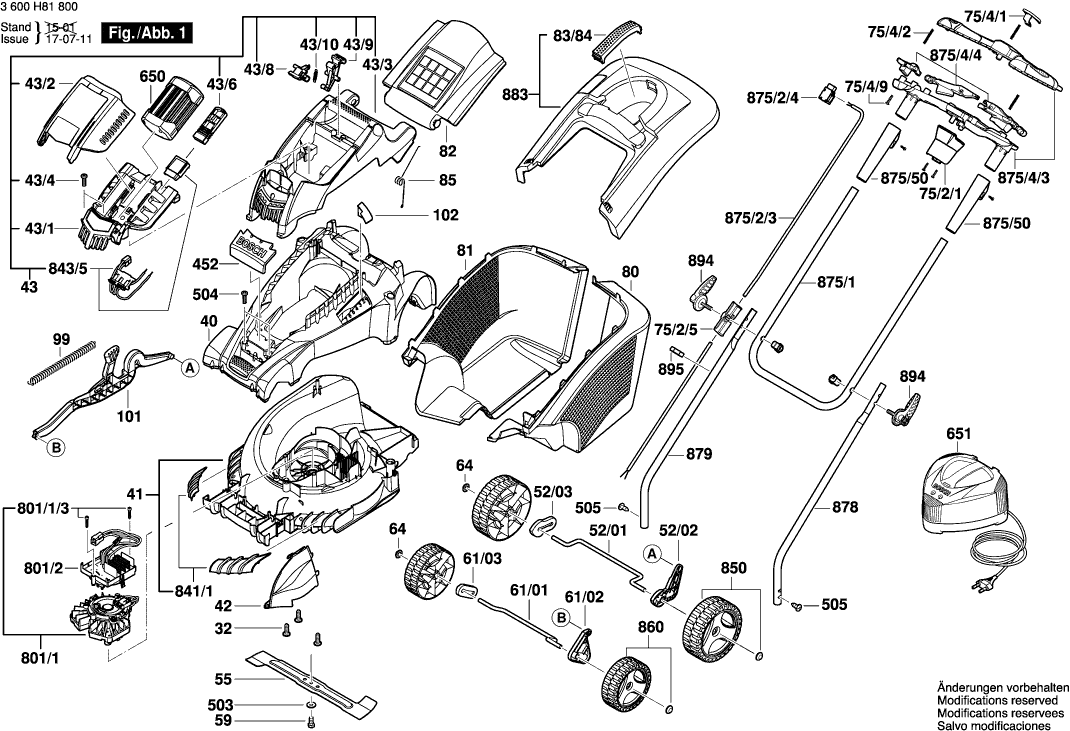

Technical drawing of model Bosch 3600H81801 ( ROTAK43LI )
Spare parts list of model Bosch 3600H81801 ( ROTAK43LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 32 | F016L66162 | 0.83 | 1.00 | |
| Mower deck | ||||
| 40 | F016L66159 | 33.45 | 40.47 | |
| Housing | ||||
| 41 | F016L65989 | 44.82 | 54.23 | |
| No longer available, no replacement | ||||
| 42 | F016L66041 | |||
| Motor Hood | ||||
| 43 | F016L66780 | 73.72 | 89.20 | |
| Battery Tray | ||||
| 43/1 | F016L65952 | 29.75 | 36.00 | |
| No longer available, no replacement | ||||
| 43/10 | F016L66108 | |||
| No longer available, no replacement | ||||
| 43/2 | F016L66663 | |||
| Motor Hood | ||||
| 43/3 | F016L66779 | 15.71 | 19.01 | |
| Self-Cutting Screw 4x19 MM | ||||
| 43/4 | F016T49429 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 43/6 | F016L66669 | |||
| Release Lever | ||||
| 43/8 | F016L66107 | 1.94 | 2.35 | |
| Locking Device | ||||
| 43/9 | F016L65988 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 52/01 | F016L66467 | |||
| No longer available, no replacement | ||||
| 52/02 | F016L90582 | |||
| Spacer | ||||
| 52/03 | F016L90583 | 1.18 | 1.43 | |
| Cutter Blade | ||||
| 55 | F016L65957 | 36.85 | 44.59 | |
| Bolt M10x30 | ||||
| 59 | F016L66141 | 1.94 | 2.35 | |
| Axle | ||||
| 61/01 | F016L66466 | 4.10 | 4.96 | |
| Lever | ||||
| 61/02 | F016L90581 | 5.33 | 6.45 | |
| Spacer | ||||
| 61/03 | F016L90585 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 64 | F016F05700 | 1.00 | 1.21 | |
| Connector Housing | ||||
| 75/2/1 | F016L67218 | 4.10 | 4.96 | |
| Cable Guide | ||||
| 75/2/5 | F016104213 | 6.54 | 7.91 | |
| Push-Button | ||||
| 75/4/1 | F016L67150 | 0.83 | 1.00 | |
| Button Spring | ||||
| 75/4/2 | F016L67151 | 0.83 | 1.00 | |
| Collector Box Bottom L/H | ||||
| 80 | F016L64304 | 18.19 | 22.01 | |
| Collector Box Bottom R/H | ||||
| 81 | F016L64338 | 12.41 | 15.02 | |
| Guard Flap | ||||
| 82 | F016L66137 | 8.45 | 10.22 | |
| Handle | ||||
| 83/84 | F016F05683 | 0.83 | 1.00 | |
| Spring | ||||
| 85 | F016L66165 | 1.70 | 2.06 | |
| Spring | ||||
| 99 | F016L59327 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 101 | F016L65971 | |||
| Restrictor | ||||
| 102 | F016L66111 | 2.24 | 2.71 | |
| Company Logo ROTAK 43 LI | ||||
| 452 | F016L66288 | 2.24 | 2.71 | |
| Spring Washer 1/2" | ||||
| 503 | F016L66173 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 505 | F016L65803 | |||
| Battery Pack GBA 36V 4,0Ah H-C | ||||
| 650 | 1607A350R2 | 233.78 | 282.87 | |
| Charger EU GAL 3680 CV 230/14,4-36V | ||||
| 651 | 2607226457 | 148.65 | 179.87 | |
| DC motor | ||||
| 801/1 | F016104031 | 209.26 | 253.20 | |
| Screw M4x35 For metal cover | ||||
| 801/1/3 | F016L66662 | 0.83 | 1.00 | |
| Pan head screw 4x35 For plastic cover | ||||
| 801/1/3 | F016L69251 | 0.83 | 1.00 | |
| Printed-Board Assembly | ||||
| 801/2 | F016104888 | 91.56 | 110.79 | |
| Cover | ||||
| 841/1 | F016104318 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 843/5 | F016104244 | |||
| No longer available, no replacement | ||||
| 850 | F016103992 | |||
| Wheel | ||||
| 860 | F016103994 | 10.73 | 12.98 | |
| Handle | ||||
| 875/1 | F016L90608 | 12.41 | 15.02 | |
| Connecting Cable | ||||
| 875/2/3 | F016104165 | 9.53 | 11.53 | |
| Switch Kit | ||||
| 875/2/4 | F016104163 | 11.88 | 14.37 | |
| Housing Set | ||||
| 875/4/3 | F016104159 | 15.71 | 19.01 | |
| No longer available, no replacement | ||||
| 875/4/4 | F016104160 | |||
| Sleeve | ||||
| 875/50 | F016104161 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 878 | F016L67209 | |||
| No longer available, no replacement | ||||
| 879 | F016L67210 | |||
| Cover | ||||
| 883 | F016103608 | 23.75 | 28.74 | |
| Clamping Lever | ||||
| 894 | F016L67530 | 8.45 | 10.22 | |
| Cable Clip ROTAK II | ||||
| 895 | F016L66895 | 0.83 | 1.00 | |
