Here you will find all available parts and drawings of the 'Bosch 3600H81802 (ROTAK43LIULTRA)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

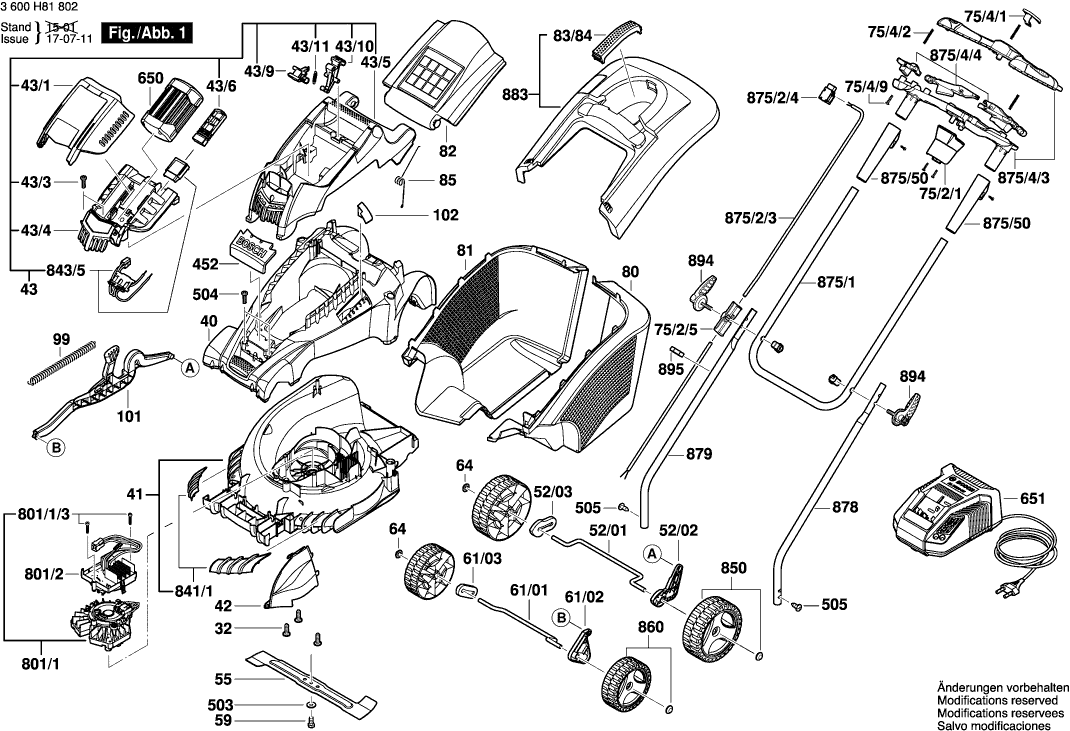

Technical drawing of model Bosch 3600H81802 (ROTAK43LIULTRA)
Spare parts list of model Bosch 3600H81802 (ROTAK43LIULTRA)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 32 | F016L66162 | 1.00 | 1.21 | |
| Mower deck | ||||
| 40 | F016L66159 | 37.50 | 45.38 | |
| Housing | ||||
| 41 | F016L65989 | 50.23 | 60.78 | |
| No longer available, no replacement | ||||
| 42 | F016L66041 | |||
| Motor Hood | ||||
| 43 | F016L67439 | 91.33 | 110.51 | |
| Battery Cover | ||||
| 43/1 | F016L67438 | 9.47 | 11.46 | |
| Locking Device | ||||
| 43/10 | F016L65988 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 43/11 | F016L66108 | |||
| Battery Tray | ||||
| 43/4 | F016L65952 | 33.33 | 40.33 | |
| Motor Hood | ||||
| 43/5 | F016L66779 | 15.71 | 19.01 | |
| No longer available, no replacement | ||||
| 43/6 | F016L66669 | |||
| Release Lever | ||||
| 43/9 | F016L66107 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 52/01 | F016L66467 | |||
| No longer available, no replacement | ||||
| 52/02 | F016L90582 | |||
| No longer available, no replacement | ||||
| 52/03 | F016L90583 | |||
| Cutter Blade | ||||
| 55 | F016L65957 | 41.30 | 49.97 | |
| Bolt M10x30 | ||||
| 59 | F016L66141 | 2.18 | 2.64 | |
| Axle | ||||
| 61/01 | F016L66466 | 4.58 | 5.54 | |
| Lever | ||||
| 61/02 | F016L90581 | 6.73 | 8.14 | |
| Spacer | ||||
| 61/03 | F016L90585 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 64 | F016F05700 | 1.00 | 1.21 | |
| Connector Housing | ||||
| 75/2/1 | F016L67218 | 4.94 | 5.98 | |
| Cable Guide | ||||
| 75/2/5 | F016104213 | 8.35 | 10.10 | |
| Push-Button | ||||
| 75/4/1 | F016L67150 | 1.00 | 1.21 | |
| Button Spring | ||||
| 75/4/2 | F016L67151 | 1.00 | 1.21 | |
| Collector Box Bottom L/H | ||||
| 80 | F016L64304 | 21.30 | 25.77 | |
| Collector Box Bottom R/H | ||||
| 81 | F016L64338 | 14.94 | 18.08 | |
| Guard Flap | ||||
| 82 | F016L66137 | 10.90 | 13.19 | |
| Handle | ||||
| 83/84 | F016F05683 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 85 | F016L66165 | |||
| Spring | ||||
| 99 | F016L59327 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 101 | F016L65971 | |||
| Restrictor | ||||
| 102 | F016L66111 | 2.52 | 3.05 | |
| Company Logo ROTAK 43 LI Ultra | ||||
| 452 | F016L68432 | 2.71 | 3.28 | |
| Spring Washer 1/2" | ||||
| 503 | F016L66173 | 1.32 | 1.60 | |
| Self-Cutting Screw | ||||
| 504 | F016T49429 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 505 | F016L65803 | |||
| Battery Pack 36V, 4,5Ah, LI | ||||
| 650 | 2607336006 | 342.01 | 413.83 | |
| Fast Charger EU AL 36V-20/36V | ||||
| 651 | 2607226273 | 64.67 | 78.25 | |
| DC motor | ||||
| 801/1 | F016104031 | 234.56 | 283.82 | |
| Pan head screw 4x35 For plastic cover | ||||
| 801/1/3 | F016L69251 | 1.00 | 1.21 | |
| Screw M4x35 For metal cover | ||||
| 801/1/3 | F016L66662 | 1.00 | 1.21 | |
| Printed-Board Assembly | ||||
| 801/2 | F016104888 | 102.63 | 124.18 | |
| Cover | ||||
| 841/1 | F016104318 | 4.58 | 5.54 | |
| No longer available, no replacement | ||||
| 843/5 | F016104244 | |||
| No longer available, no replacement | ||||
| 850 | F016103992 | |||
| No longer available, no replacement | ||||
| 860 | F016103994 | |||
| Handle | ||||
| 875/1 | F016L90608 | 14.94 | 18.08 | |
| Connecting Cable | ||||
| 875/2/3 | F016104165 | 10.68 | 12.92 | |
| Switch Kit | ||||
| 875/2/4 | F016104163 | 13.13 | 15.89 | |
| Housing Set | ||||
| 875/4/3 | F016104159 | 18.94 | 22.92 | |
| No longer available, no replacement | ||||
| 875/4/4 | F016104160 | |||
| Sleeve | ||||
| 875/50 | F016104161 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 878 | F016L67209 | |||
| No longer available, no replacement | ||||
| 879 | F016L67210 | |||
| Cover | ||||
| 883 | F016103608 | 27.81 | 33.65 | |
| Clamping Lever | ||||
| 894 | F016L67530 | 10.90 | 13.19 | |
| Cable Clip ROTAK II | ||||
| 895 | F016L66895 | 1.00 | 1.21 | |
