Here you will find all available parts and drawings of the 'Bosch 0600883103 (ROTAK40C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

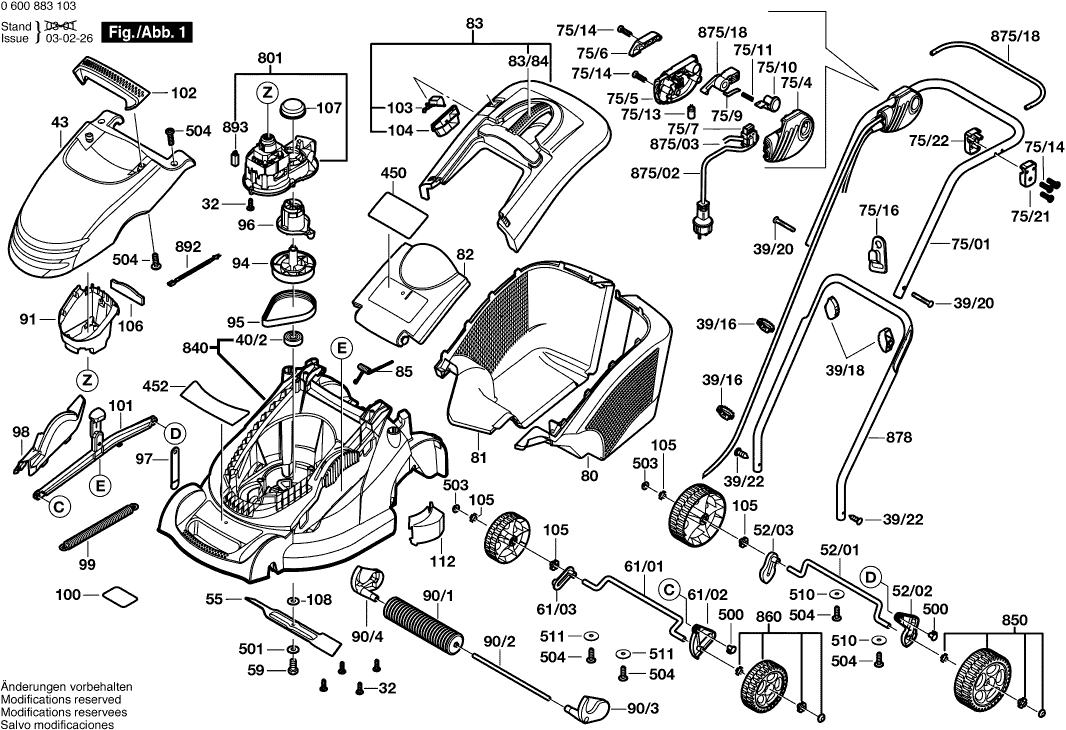

Technical drawing of model Bosch 0600883103 (ROTAK40C)
Spare parts list of model Bosch 0600883103 (ROTAK40C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-Cutting Screw | ||||
| 32 | F016L37433 | 1.00 | 1.21 | |
| Cable Cleat | ||||
| 39/16 | F016L11580 | 1.00 | 1.21 | |
| Wing Nut | ||||
| 39/18 | F016L66136 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 39/20 | F016L59277 | |||
| Screw M5x8 Csk Hd. | ||||
| 39/22 | F016L36542 | 2.40 | 2.90 | |
| Bearing 6003 | ||||
| 40/2 | F016L64387 | 4.94 | 5.98 | |
| Motor Hood | ||||
| 43 | F016L63659 | 23.90 | 28.92 | |
| Axle | ||||
| 52/01 | F016L64303 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 52/02 | F016L59324 | |||
| Spacer | ||||
| 52/03 | F016L59373 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 55 | F016L64302 | |||
| Hex Screw M8x20 MM | ||||
| 59 | F016T48547 | 2.40 | 2.90 | |
| Axle | ||||
| 61/01 | F016L64303 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 61/02 | F016L59323 | |||
| Spacer | ||||
| 61/03 | F016L59325 | 1.00 | 1.21 | |
| Handle | ||||
| 75/01 | F016L63712 | 23.90 | 28.92 | |
| Push-Button | ||||
| 75/10 | F016F05705 | 1.00 | 1.21 | |
| Spring | ||||
| 75/11 | F016L62860 | 1.00 | 1.21 | |
| Condenser | ||||
| 75/13 | F016L36952 | 1.00 | 1.21 | |
| Self-Cutting Screw | ||||
| 75/14 | F016T49429 | 1.00 | 1.21 | |
| Strain-Relief Clamp | ||||
| 75/16 | F016L65387 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 75/21 | F016T49629 | |||
| No longer available, no replacement | ||||
| 75/22 | F016T49628 | |||
| No longer available, no replacement | ||||
| 75/4 | F016L65739 | |||
| Switch Housing | ||||
| 75/5 | F016L66235 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 75/6 | F016T49630 | |||
| On-Off Switch | ||||
| 75/7 | F016F05717 | 13.13 | 15.89 | |
| Spiral Spring | ||||
| 75/9 | F016T49633 | 2.08 | 2.52 | |
| Collector Box Bottom L/H | ||||
| 80 | F016L64304 | 21.30 | 25.77 | |
| Collector Box Bottom R/H | ||||
| 81 | F016L64338 | 14.94 | 18.08 | |
| Guard Flap | ||||
| 82 | F016L64785 | 14.94 | 18.08 | |
| Cover | ||||
| 83 | F016L64189 | 12.82 | 15.51 | |
| Handle | ||||
| 83/84 | F016L64394 | 1.00 | 1.21 | |
| Torsion Spring | ||||
| 85 | F016L64523 | 1.00 | 1.21 | |
| Housing | ||||
| 91 | F016L64305 | 2.86 | 3.46 | |
| Drive Shaft | ||||
| 94 | F016L64511 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 95 | F016L65250 | |||
| Belt Tensioner | ||||
| 96 | F016104211 | 9.67 | 11.70 | |
| Leaf Spring | ||||
| 97 | F016L63734 | 4.18 | 5.06 | |
| Sealing cap | ||||
| 98 | F016L64382 | 2.86 | 3.46 | |
| Spring | ||||
| 99 | F016L59327 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 101 | F016L64308 | |||
| Handle | ||||
| 102 | F016L63709 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 103 | F016L59150 | |||
| Indicator Holder | ||||
| 104 | F016L64795 | 2.08 | 2.52 | |
| Bushing | ||||
| 105 | F016L64226 | 1.00 | 1.21 | |
| Filter Element | ||||
| 106 | F016L64398 | 1.49 | 1.80 | |
| Sealing cap | ||||
| 107 | F016L64126 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 108 | F016L67627 | |||
| No longer available, no replacement | ||||
| 112 | F016L64467 | |||
| Sticker | ||||
| 450 | F016L63011 | 3.44 | 4.16 | |
| Sticker | ||||
| 452 | F016L64366 | 1.00 | 1.21 | |
| Bolt | ||||
| 500 | F016L63654 | 1.00 | 1.21 | |
| Plain Washer Ø8,15 BLACK | ||||
| 501 | F016T48185 | 3.44 | 4.16 | |
| Cover | ||||
| 503 | F016L63953 | 1.00 | 1.21 | |
| Self-Cutting Screw | ||||
| 504 | F016T49429 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 510 | F016L57338 | 2.86 | 3.46 | |
| Washer | ||||
| 511 | F016L64199 | 1.00 | 1.21 | |
| Motor | ||||
| 801 | F016103804 | 136.48 | 165.14 | |
| Housing | ||||
| 840 | F016103171 | 47.53 | 57.51 | |
| No longer available, no replacement | ||||
| 850 | F016103172 | |||
| Wheel | ||||
| 860 | F016103173 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 875/02 | F016104086 | |||
| Connecting Cable | ||||
| 875/03 | F016103168 | 4.94 | 5.98 | |
| Control Bar | ||||
| 875/18 | F016102996 | 43.12 | 52.18 | |
| No longer available, no replacement | ||||
| 878 | F016102946 | |||
| Connecting Cable | ||||
| 892 | F016103169 | 3.44 | 4.16 | |
| Thermoswitch | ||||
| 893 | F016103170 | 5.81 | 7.03 | |
