Here you will find all available parts and drawings of the 'Bosch 3600HA4105 (Rotak37S)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

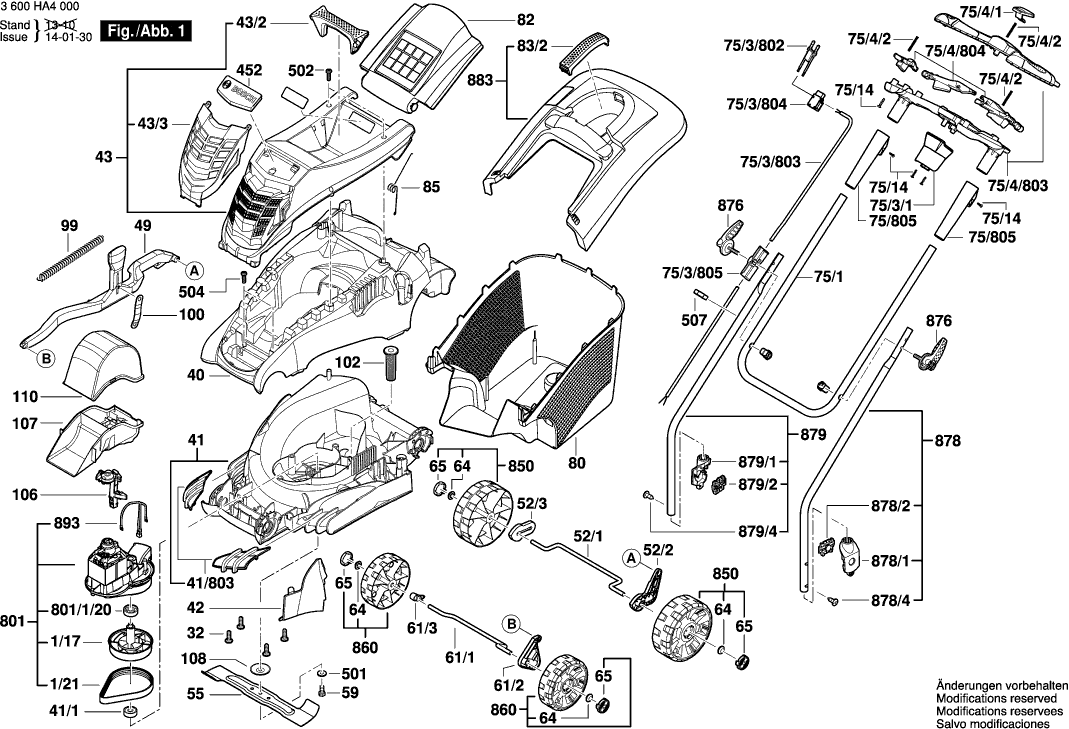

Technical drawing of model Bosch 3600HA4105 (Rotak37S)
Spare parts list of model Bosch 3600HA4105 (Rotak37S)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Drive Shaft | ||||
| 1/17 | F016103758 | 13.13 | 15.89 | |
| Drive Belt | ||||
| 1/21 | F016L65351 | 10.90 | 13.19 | |
| Self-Cutting Screw | ||||
| 32 | F016L37433 | 1.00 | 1.21 | |
| Mower deck | ||||
| 40 | F016L69451 | 31.42 | 38.02 | |
| Housing | ||||
| 41 | F016L69520 | 31.42 | 38.02 | |
| Bearing 6002-2RS | ||||
| 41/1 | F016L67442 | 3.44 | 4.16 | |
| Comb | ||||
| 41/803 | F016104910 | 6.73 | 8.14 | |
| Cover Panel | ||||
| 42 | F016L66039 | 2.40 | 2.90 | |
| Motor Hood | ||||
| 43 | F016L68149 | 23.90 | 28.92 | |
| Carrying Handle | ||||
| 43/2 | F016L68084 | 2.08 | 2.52 | |
| grille SILVER | ||||
| 43/3 | F016L68150 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 49 | F016L68111 | |||
| No longer available, no replacement | ||||
| 52/1 | F016L68527 | |||
| No longer available, no replacement | ||||
| 52/2 | F016L90582 | |||
| No longer available, no replacement | ||||
| 52/3 | F016L90583 | |||
| Cutter Blade | ||||
| 55 | F016L65400 | 31.42 | 38.02 | |
| Hex Screw M8x20 MM | ||||
| 59 | F016T48547 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 61/1 | F016L68526 | |||
| Lever | ||||
| 61/2 | F016L90581 | 6.73 | 8.14 | |
| Spacer | ||||
| 61/3 | F016L90585 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 64 | F016L68095 | 1.49 | 1.80 | |
| Handle | ||||
| 75/1 | F016L90608 | 14.94 | 18.08 | |
| Handle | ||||
| 75/1 | F016L68054 | 13.13 | 15.89 | |
| Self-Cutting Screw | ||||
| 75/14 | F016T49429 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 75/3/803 | F016104164 | 10.90 | 13.19 | |
| Switch Kit | ||||
| 75/3/804 | F016104162 | 12.82 | 15.51 | |
| Cable Guide | ||||
| 75/3/805 | F016104213 | 8.35 | 10.10 | |
| Push-Button | ||||
| 75/4/1 | F016L67150 | 1.00 | 1.21 | |
| Button Spring | ||||
| 75/4/2 | F016L67151 | 1.00 | 1.21 | |
| Housing Set | ||||
| 75/4/803 | F016104159 | 18.94 | 22.92 | |
| No longer available, no replacement | ||||
| 75/4/804 | F016104160 | |||
| Sleeve | ||||
| 75/805 | F016104161 | 5.81 | 7.03 | |
| Collector Box Bottom GREEN | ||||
| 80 | F016L68118 | 13.13 | 15.89 | |
| Guard Flap | ||||
| 82 | F016L66137 | 10.90 | 13.19 | |
| Handle | ||||
| 83/2 | F016F05683 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 85 | F016L66165 | |||
| Spring | ||||
| 99 | F016L59327 | 2.86 | 3.46 | |
| Leaf Spring | ||||
| 100 | F016L68117 | 1.00 | 1.21 | |
| Holding plug | ||||
| 102 | F016L68536 | 18.94 | 22.92 | |
| Wire Guide | ||||
| 106 | F016L90584 | 1.49 | 1.80 | |
| Baffle | ||||
| 107 | F016L68449 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 108 | F016L67627 | |||
| Baffle | ||||
| 110 | F016L68448 | 2.40 | 2.90 | |
| Company Logo Rotak 37 S | ||||
| 452 | F016L69523 | 2.40 | 2.90 | |
| Plain Washer Ø8,15 MM | ||||
| 501 | F016T40590 | 1.49 | 1.80 | |
| Torx head screw | ||||
| 502 | F016L68124 | 1.00 | 1.21 | |
| Screw M5x8 Csk Hd. | ||||
| 504 | F016L36542 | 2.40 | 2.90 | |
| Self-Cutting Screw | ||||
| 504 | F016T49429 | 1.00 | 1.21 | |
| Cable Clip ROTAK II | ||||
| 507 | F016L66895 | 1.00 | 1.21 | |
| Motor | ||||
| 801 | F016103595 | 136.48 | 165.14 | |
| Bearing | ||||
| 801/1/20 | F016L64594 | 2.86 | 3.46 | |
| Wheel ear | ||||
| 850 | F016104422 | 8.35 | 10.10 | |
| Wheel | ||||
| 860 | F016104421 | 9.67 | 11.70 | |
| Clamping Lever | ||||
| 876 | F016L67530 | 10.90 | 13.19 | |
| bottom handle | ||||
| 878 | F016104917 | 21.30 | 25.77 | |
| Mounting Bracket | ||||
| 878/1 | F016L69450 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 878/2 | F016L68103 | |||
| Screw M5x8 Csk Hd. | ||||
| 878/4 | F016L36542 | 2.40 | 2.90 | |
| bottom handle | ||||
| 879 | F016104918 | 14.94 | 18.08 | |
| Mounting Bracket | ||||
| 879/1 | F016L69450 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 879/2 | F016L68103 | |||
| Screw M5x8 Csk Hd. | ||||
| 879/4 | F016L36542 | 2.40 | 2.90 | |
| Collector Box Top | ||||
| 883 | F016104465 | 14.94 | 18.08 | |
| Thermal protector | ||||
| 893 | F016103604 | 7.46 | 9.03 | |
