Here you will find all available parts and drawings of the 'Bosch 3600HA4102 ( ROTAK36 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

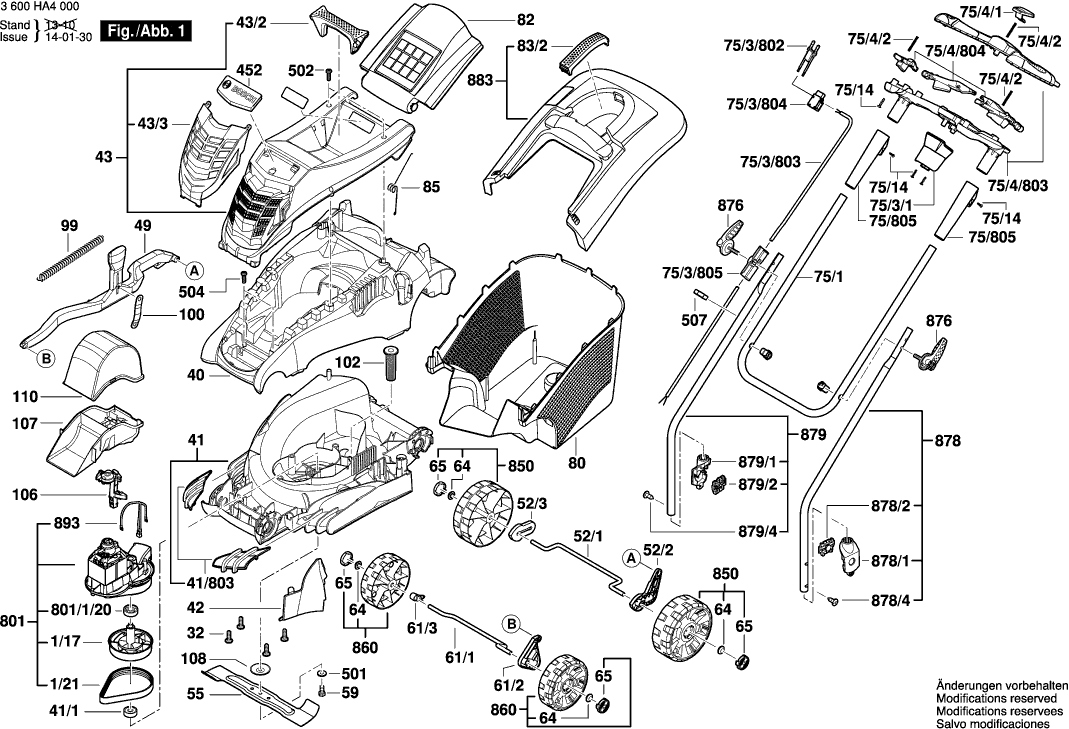

Technical drawing of model Bosch 3600HA4102 ( ROTAK36 )
Spare parts list of model Bosch 3600HA4102 ( ROTAK36 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Drive Shaft | ||||
| 1/17 | F016103758 | 11.88 | 14.37 | |
| Drive Belt | ||||
| 1/21 | F016L65351 | 9.53 | 11.53 | |
| Self-Cutting Screw | ||||
| 32 | F016L37433 | 0.83 | 1.00 | |
| Mower deck | ||||
| 40 | F016L68101 | 20.42 | 24.71 | |
| Housing | ||||
| 41 | F016Z68099 | 26.84 | 32.48 | |
| Bearing 6002-2RS | ||||
| 41/1 | F016L67442 | 2.71 | 3.28 | |
| Cover Panel | ||||
| 41/803 | F016104420 | 13.93 | 16.86 | |
| Cover Panel | ||||
| 42 | F016L66039 | 1.94 | 2.35 | |
| Motor Hood | ||||
| 43 | F016L68149 | 20.42 | 24.71 | |
| Carrying Handle | ||||
| 43/2 | F016L68084 | 1.70 | 2.06 | |
| grille SILVER | ||||
| 43/3 | F016L68150 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 49 | F016L68111 | |||
| No longer available, no replacement | ||||
| 52/1 | F016L68527 | |||
| No longer available, no replacement | ||||
| 52/2 | F016L90582 | |||
| Spacer | ||||
| 52/3 | F016L90583 | 1.18 | 1.43 | |
| Cutter Blade | ||||
| 55 | F016L65400 | 26.84 | 32.48 | |
| Hex Screw M8x20 MM | ||||
| 59 | F016T48547 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 61/1 | F016L68526 | |||
| Lever | ||||
| 61/2 | F016L90581 | 5.33 | 6.45 | |
| Spacer | ||||
| 61/3 | F016L90585 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 64 | F016L68095 | 1.18 | 1.43 | |
| Cover | ||||
| 65 | F016L68116 | 0.83 | 1.00 | |
| Handle | ||||
| 75/1 | F016L90608 | 12.41 | 15.02 | |
| Self-Cutting Screw 4x19 MM | ||||
| 75/14 | F016T49429 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 75/3/1 | F016L67217 | |||
| Connecting Cable EU | ||||
| 75/3/802 | F016104214 | 5.83 | 7.05 | |
| Connecting Cable | ||||
| 75/3/803 | F016104164 | 8.45 | 10.22 | |
| Switch Kit | ||||
| 75/3/804 | F016104162 | 10.73 | 12.98 | |
| Cable Guide | ||||
| 75/3/805 | F016104213 | 6.54 | 7.91 | |
| Push-Button | ||||
| 75/4/1 | F016L67150 | 0.83 | 1.00 | |
| Button Spring | ||||
| 75/4/2 | F016L67151 | 0.83 | 1.00 | |
| Housing Set | ||||
| 75/4/803 | F016104360 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 75/4/804 | F016104160 | |||
| Sleeve | ||||
| 75/805 | F016104361 | 3.31 | 4.01 | |
| Collector Box Bottom BLACK | ||||
| 80 | F016L65674 | 36.85 | 44.59 | |
| Guard Flap | ||||
| 82 | F016L66137 | 8.45 | 10.22 | |
| Handle | ||||
| 83/2 | F016F05683 | 0.83 | 1.00 | |
| Spring | ||||
| 85 | F016L66165 | 1.70 | 2.06 | |
| Spring | ||||
| 99 | F016L59327 | 2.24 | 2.71 | |
| Leaf Spring | ||||
| 100 | F016L68117 | 0.83 | 1.00 | |
| Holding plug | ||||
| 102 | F016L68536 | 15.71 | 19.01 | |
| Wire Guide | ||||
| 106 | F016L90584 | 1.18 | 1.43 | |
| Baffle | ||||
| 107 | F016L68449 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 108 | F016L67627 | |||
| Baffle | ||||
| 110 | F016L68448 | 1.94 | 2.35 | |
| Company Logo Rotak 36 | ||||
| 452 | F016L68159 | 1.94 | 2.35 | |
| Plain Washer Ø8,15 MM | ||||
| 501 | F016T40590 | 1.18 | 1.43 | |
| Torx head screw | ||||
| 502 | F016L68124 | 0.83 | 1.00 | |
| Self-Cutting Screw 4x19 MM | ||||
| 504 | F016T49429 | 0.83 | 1.00 | |
| Cable Clip ROTAK II | ||||
| 507 | F016L66895 | 0.83 | 1.00 | |
| Motor | ||||
| 801 | F016103595 | 113.29 | 137.08 | |
| Bearing | ||||
| 801/1/20 | F016L64594 | 2.24 | 2.71 | |
| Wheel ear | ||||
| 850 | F016104422 | 14.00 | 16.94 | |
| Wheel | ||||
| 860 | F016104421 | 7.58 | 9.17 | |
| Clamping Lever | ||||
| 876 | F016L67530 | 8.45 | 10.22 | |
| No longer available, no replacement | ||||
| 878 | F016104581 | |||
| No longer available, no replacement | ||||
| 878/1 | F016L68102 | |||
| No longer available, no replacement | ||||
| 878/2 | F016L68103 | |||
| Screw M5x8 Csk Hd. | ||||
| 878/4 | F016L36542 | 1.94 | 2.35 | |
| bottom handle | ||||
| 879 | F016104582 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 879/1 | F016L68102 | |||
| No longer available, no replacement | ||||
| 879/2 | F016L68103 | |||
| Screw M5x8 Csk Hd. | ||||
| 879/4 | F016L36542 | 1.94 | 2.35 | |
| Collector Box Top BLACK | ||||
| 883 | F016104362 | 10.73 | 12.98 | |
| Thermal protector | ||||
| 893 | F016103604 | 5.83 | 7.05 | |
