Here you will find all available parts and drawings of the 'Bosch 3600HA4509 (ROTAK36-43LIR)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

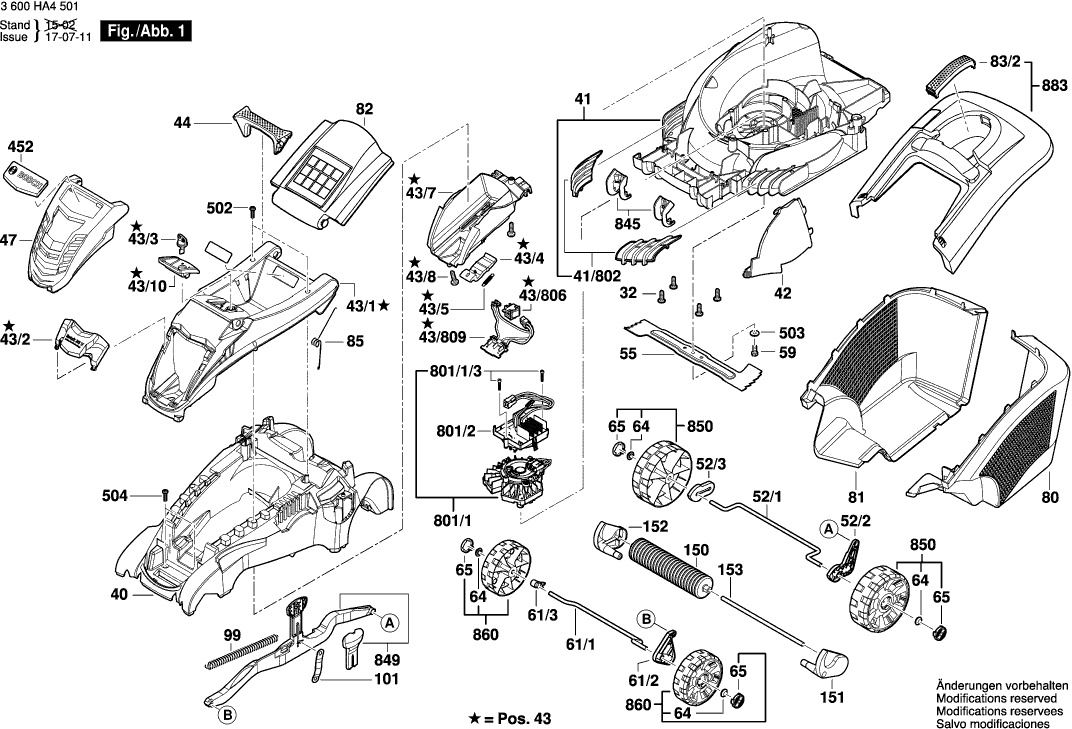

Technical drawing of model Bosch 3600HA4509 (ROTAK36-43LIR)
Spare parts list of model Bosch 3600HA4509 (ROTAK36-43LIR)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 32 | F016L66162 | 1.00 | 1.21 | |
| Mower deck GREEN | ||||
| 40 | F016L69542 | 23.90 | 28.92 | |
| Housing | ||||
| 41 | F016L68166 | 37.50 | 45.38 | |
| Cover Panel | ||||
| 41/802 | F016104304 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 42 | F016L66041 | |||
| Motor Hood | ||||
| 43 | F016L68080 | 45.52 | 55.08 | |
| Motor Hood | ||||
| 43/1 | F016L68081 | 11.02 | 13.33 | |
| Cover SILVER | ||||
| 43/10 | F016L68083 | 1.32 | 1.60 | |
| Cover | ||||
| 43/2 | F016L68086 | 1.90 | 2.30 | |
| Key | ||||
| 43/3 | F016L68003 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 43/4 | F016L68004 | |||
| No longer available, no replacement | ||||
| 43/5 | F016L66108 | |||
| Battery Tray | ||||
| 43/7 | F016L68082 | 5.96 | 7.21 | |
| Self-Cutting Screw | ||||
| 43/8 | F016T49429 | 1.00 | 1.21 | |
| Switch | ||||
| 43/806 | F016104250 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 43/809 | F016104654 | |||
| Carrying Handle | ||||
| 44 | F016L68084 | 2.08 | 2.52 | |
| grille SILVER | ||||
| 47 | F016L68085 | 5.27 | 6.38 | |
| No longer available, no replacement | ||||
| 52/1 | F016L68529 | |||
| No longer available, no replacement | ||||
| 52/2 | F016L90582 | |||
| No longer available, no replacement | ||||
| 52/3 | F016L90583 | |||
| Cutter Blade | ||||
| 55 | F016L68217 | 37.50 | 45.38 | |
| Bolt M10x30 | ||||
| 59 | F016L66141 | 2.18 | 2.64 | |
| Axle | ||||
| 61/1 | F016L68528 | 4.18 | 5.06 | |
| Lever | ||||
| 61/2 | F016L90581 | 6.73 | 8.14 | |
| Spacer | ||||
| 61/3 | F016L90585 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 64 | F016L68095 | 1.49 | 1.80 | |
| Cover | ||||
| 65 | F016L68116 | 1.00 | 1.21 | |
| Handle | ||||
| 75/1 | F016L90608 | 14.94 | 18.08 | |
| Handle | ||||
| 75/1 | F016L68054 | 13.13 | 15.89 | |
| Self-Cutting Screw | ||||
| 75/14 | F016T49429 | 1.00 | 1.21 | |
| Connector Housing | ||||
| 75/3/1 | F016L67218 | 4.94 | 5.98 | |
| Connecting Cable | ||||
| 75/3/802 | F016104165 | 10.68 | 12.92 | |
| Switch Kit | ||||
| 75/3/803 | F016104163 | 13.13 | 15.89 | |
| Cable Guide | ||||
| 75/3/804 | F016104213 | 8.35 | 10.10 | |
| Push-Button | ||||
| 75/4/1 | F016L67150 | 1.00 | 1.21 | |
| Button Spring | ||||
| 75/4/2 | F016L67151 | 1.00 | 1.21 | |
| Housing Set | ||||
| 75/4/803 | F016104360 | 14.94 | 18.08 | |
| No longer available, no replacement | ||||
| 75/4/804 | F016104160 | |||
| Sleeve | ||||
| 75/805 | F016104361 | 4.18 | 5.06 | |
| Collector Box Bottom L/H | ||||
| 80 | F016L64304 | 21.30 | 25.77 | |
| Collector Box Bottom R/H | ||||
| 81 | F016L64338 | 14.94 | 18.08 | |
| Guard Flap | ||||
| 82 | F016L66137 | 10.90 | 13.19 | |
| Handle | ||||
| 83/2 | F016F05683 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 85 | F016L66165 | |||
| Spring | ||||
| 99 | F016L59327 | 2.86 | 3.46 | |
| Leaf Spring | ||||
| 101 | F016L68117 | 1.00 | 1.21 | |
| Roller Drum | ||||
| 150 | F016L66175 | 16.79 | 20.32 | |
| No longer available, no replacement | ||||
| 151 | F016L64900 | |||
| No longer available, no replacement | ||||
| 152 | F016L64901 | |||
| Spindle | ||||
| 153 | F016L65870 | 5.81 | 7.03 | |
| Company Logo Rotak 36-43 LI R | ||||
| 452 | F016L68231 | 7.32 | 8.86 | |
| Torx head screw | ||||
| 502 | F016L68124 | 1.00 | 1.21 | |
| Spring Washer 1/2" | ||||
| 503 | F016L66173 | 1.32 | 1.60 | |
| Self-Cutting Screw | ||||
| 504 | F016T49429 | 1.00 | 1.21 | |
| Battery Pack GBA 36V 4,0Ah H-C | ||||
| 650 | 1607A350R2 | 262.05 | 317.08 | |
| Fast Charger EU AL 36V-20/36V | ||||
| 651 | 2607226273 | 64.67 | 78.25 | |
| DC motor | ||||
| 801/1 | F016104031 | 234.56 | 283.82 | |
| Pan head screw 4x35 For plastic cover | ||||
| 801/1/3 | F016L69251 | 1.00 | 1.21 | |
| Screw M4x35 For metal cover | ||||
| 801/1/3 | F016L66662 | 1.00 | 1.21 | |
| Printed-Board Assembly | ||||
| 801/2 | F016104888 | 102.63 | 124.18 | |
| Cover Panel | ||||
| 845 | F016104425 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 849 | F016104303 | |||
| Wheel ear | ||||
| 850 | F016104422 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 860 | F016104305 | |||
| Clamping Lever | ||||
| 876 | F016L67530 | 10.90 | 13.19 | |
| No longer available, no replacement | ||||
| 878 | F016104928 | |||
| Screw M5x8 Csk Hd. | ||||
| 878/4 | F016L36542 | 2.40 | 2.90 | |
| Mounting Bracket GREEN | ||||
| 878/801 | F016104926 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 879 | F016104929 | |||
| Screw M5x8 Csk Hd. | ||||
| 879/4 | F016L36542 | 2.40 | 2.90 | |
| Mounting Bracket GREEN | ||||
| 879/801 | F016104927 | 2.86 | 3.46 | |
| Cover | ||||
| 883 | F016103608 | 27.81 | 33.65 | |
| Cable Clip ROTAK II | ||||
| 895 | F016L66895 | 1.00 | 1.21 | |
