Here you will find all available parts and drawings of the 'Bosch 3600H85A02 ( ROTAK320 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

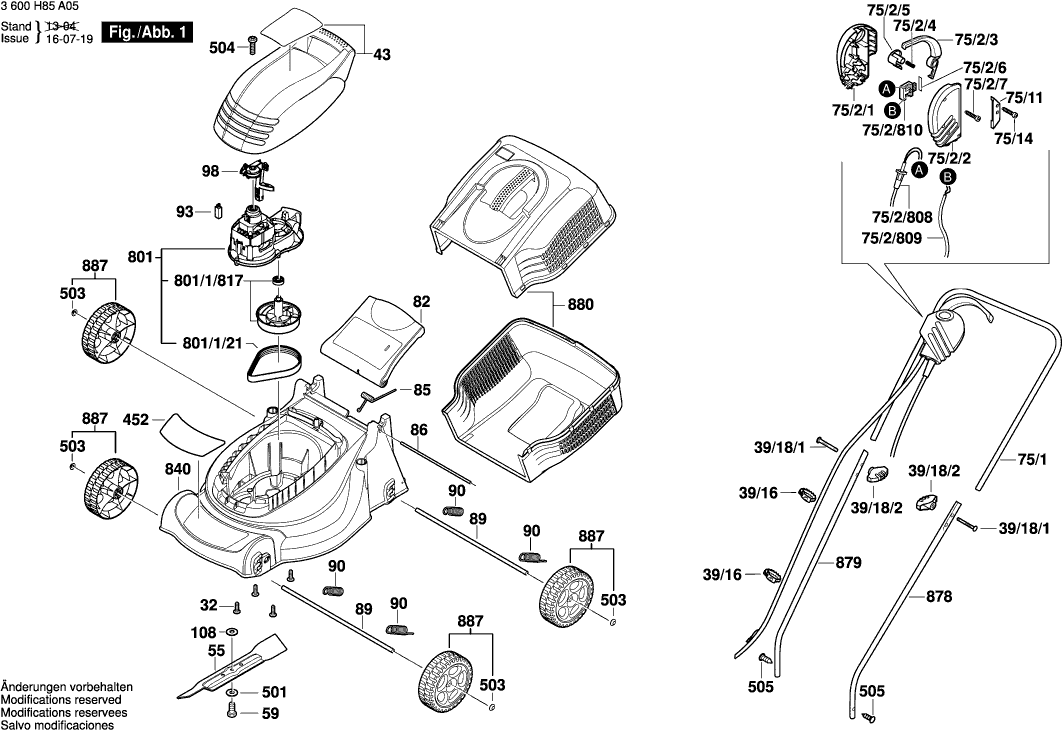

Technical drawing of model Bosch 3600H85A02 ( ROTAK320 )
Spare parts list of model Bosch 3600H85A02 ( ROTAK320 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Self-Cutting Screw | ||||
| 32 | F016L37433 | 0.83 | 1.00 | |
| Cable Cleat | ||||
| 39/16 | F016L11580 | 0.83 | 1.00 | |
| Motor Hood | ||||
| 43 | F016L65009 | 15.71 | 19.01 | |
| Cutter Blade | ||||
| 55 | 1600A025F8 | 10.73 | 12.98 | |
| Hex Screw M8x20 MM | ||||
| 59 | F016T48547 | 1.94 | 2.35 | |
| Handle | ||||
| 75/01 | F016L62792 | 20.42 | 24.71 | |
| Push-Button | ||||
| 75/10 | F016F05705 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 75/11 | F016T49226 | |||
| Self-Cutting Screw 4x19 MM | ||||
| 75/14 | F016T49429 | 0.83 | 1.00 | |
| Strain-Relief Clamp | ||||
| 75/16 | F016L65387 | 6.54 | 7.91 | |
| Switch Housing | ||||
| 75/4 | F016L66234 | 1.94 | 2.35 | |
| Switch Housing | ||||
| 75/5 | F016L66235 | 1.94 | 2.35 | |
| Clamping Piece | ||||
| 75/6 | F016T56180 | 4.10 | 4.96 | |
| On-Off Switch | ||||
| 75/7 | F016F05717 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 75/8 | F016L65676 | |||
| No longer available, no replacement | ||||
| 75/9 | F016T49845 | |||
| Guard Flap | ||||
| 82 | F016L65236 | 8.45 | 10.22 | |
| Torsion Spring | ||||
| 85 | F016L63964 | 1.18 | 1.43 | |
| Hinge Rod | ||||
| 86 | F016L36504 | 0.83 | 1.00 | |
| Axle | ||||
| 89 | F016L63658 | 2.71 | 3.28 | |
| Spring | ||||
| 90 | F016L65773 | 1.18 | 1.43 | |
| Wire Guide | ||||
| 98 | F016L90584 | 1.18 | 1.43 | |
| Indicator | ||||
| 99 | F016L65040 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 108 | F016L67627 | |||
| Sticker ROTAK 3200 | ||||
| 452 | F016L65238 | 0.83 | 1.00 | |
| Plain Washer Ø8,15 BLACK | ||||
| 501 | F016T48185 | 2.71 | 3.28 | |
| Securing Cap Ø8 MM BLACK | ||||
| 503 | F016T48990 | 0.83 | 1.00 | |
| Self-Cutting Screw 4x19 MM | ||||
| 504 | F016T49429 | 0.83 | 1.00 | |
| Screw M5x8 Csk Hd. | ||||
| 505 | F016L36542 | 1.94 | 2.35 | |
| Wing Nut | ||||
| 506/1 | F016L66136 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 506/2 | F016L59277 | |||
| No longer available, no replacement | ||||
| 801 | F016103298 | |||
| No longer available, no replacement | ||||
| 801/1/21 | F016L63607 | |||
| No longer available, no replacement | ||||
| 801/1/817 | F016103299 | |||
| Housing | ||||
| 840 | F016103301 | 26.84 | 32.48 | |
| Power supply cord EU | ||||
| 875/02 | F016104086 | 12.41 | 15.02 | |
| Connecting Cable | ||||
| 875/03 | F016103302 | 5.33 | 6.45 | |
| Handle | ||||
| 878 | F016102187 | 5.33 | 6.45 | |
| Handle | ||||
| 879 | F016102188 | 5.33 | 6.45 | |
| Collection box | ||||
| 880 | F016104018 | 40.61 | 49.14 | |
| Wheel | ||||
| 887 | F016102937 | 2.71 | 3.28 | |
| Thermal protector | ||||
| 893 | F016103303 | 10.73 | 12.98 | |
