Here you will find all available parts and drawings of the 'Bosch 3600H85D00 ( ROTAK32LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

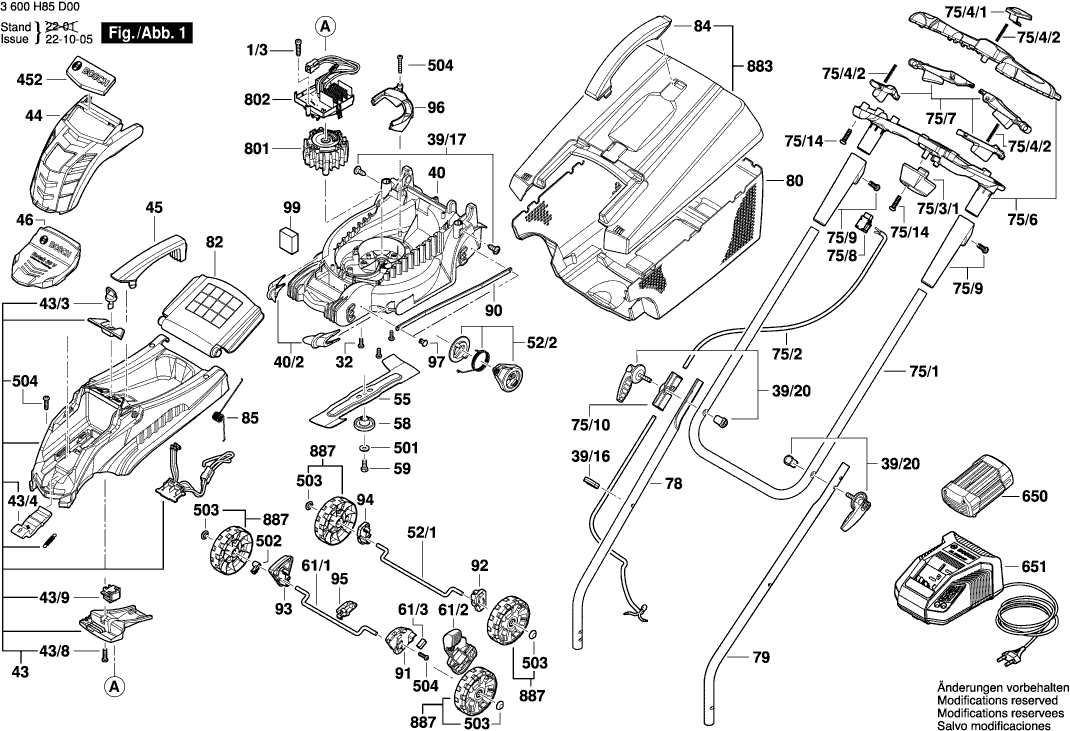

Technical drawing of model Bosch 3600H85D00 ( ROTAK32LI )

Spare parts list of model Bosch 3600H85D00 ( ROTAK32LI )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Screw M4x35 For metal cover
1/3 F016L66662 0.83 1.00
Screw
32 F016L66162 0.83 1.00
Cable Clip ROTAK II
39/16 F016L66895 0.83 1.00
Screw M5x8 Csk Hd.
39/17 F016L36542 1.94 2.35
Set of screws
39/17 F016L67258 0.83 1.00
Clamping Lever
39/20 F016L67530 8.45 10.22
Mower deck BLACK
40 F016L68051 29.75 36.00
Comb RED
40/2 F016L66697 1.18 1.43
Motor Hood
43 F016L68000 36.85 44.59
Motor Hood
43/1 F016L68001 11.68 14.13
Cover
43/2 F016L68002 1.10 1.33
Key
43/3 F016L68003 1.18 1.43
No longer available, no replacement
43/4 F016L68004
No longer available, no replacement
43/5 F016L66108
No longer available, no replacement
43/6 F016104654
Cable routing
43/7 F016L68017 0.83 1.00
Self-Cutting Screw 4x19 MM
43/8 F016T49429 0.83 1.00
Switch
43/9 F016104250 6.54 7.91
grille BLACK
44 F016L68075 4.10 4.96
Carrying Handle
45 F016L66654 2.24 2.71
Battery Cover
46 F016L68006 5.33 6.45
Axle
52/1 F016L68031 2.24 2.71
Lever
52/2 F016L68050 5.33 6.45
Cutter Blade
55 1600A025F8 10.73 12.98
Adaptor plate
58 F016L68024 4.10 4.96
Hex Screw M8x20 MM
59 F016T48547 1.94 2.35
Axle
61/1 F016L68029 1.94 2.35
Lever
61/2 F016L68012 2.24 2.71
Spring
61/3 F016L68027 1.94 2.35
Handle
75/1 F016L90608 12.41 15.02
Cable Guide
75/10 F016104213 6.54 7.91
Self-Cutting Screw 4x19 MM
75/14 F016T49429 0.83 1.00
Connecting Cable
75/2 F016104165 9.53 11.53
Connector Housing
75/3/1 F016L67218 4.10 4.96
Push-Button
75/4/1 F016L67150 0.83 1.00
Button Spring
75/4/2 F016L67151 0.83 1.00
Housing Set
75/6 F016104159 15.71 19.01
No longer available, no replacement
75/7 F016104160
Switch Kit
75/8 F016104163 11.88 14.37
Sleeve
75/9 F016104161 4.70 5.69
Handle Bar BLACK
78 F016L66682 6.54 7.91
Handle Bar BLACK
79 F016L66655 6.54 7.91
Collector Box Bottom
80 F016L66683 11.88 14.37
Guard Flap
82 F016L66686 3.31 4.01
Carrying Handle
84 F016L66685 2.24 2.71
closing spring
85 F016L66687 1.18 1.43
Linkage part
90 F016L68025 5.83 7.05
Insert
91 F016L68007 1.18 1.43
Insert
92 F016L68008 1.18 1.43
Insert
93 F016L68009 1.18 1.43
Insert
94 F016L68010 1.18 1.43
Insert
95 F016L68011 1.18 1.43
grille
96 F016L68018 1.18 1.43
Clip
97 F016L68014 1.18 1.43
Balance Weights
99 F016L68034 6.54 7.91
Company Logo Rotak 32 LI
452 F016L68022 2.24 2.71
Plain Washer Ø8,15 MM
501 F016T40590 1.18 1.43
Spacer Ø8,15 MM
502 F016L68015 0.83 1.00
Securing Cap Ø8 MM BLACK
503 F016T48990 0.83 1.00
Self-Cutting Screw 4x19 MM
504 F016T49429 0.83 1.00
Battery Pack 36V 2,0 Ah Li
650 2607336913 187.62 227.02
Fast Charger EU AL 36V-20/36V
651 2607226273 55.25 66.85
DC motor
801 F016104219 187.62 227.02
Cap
801/1/18 F016L64499 0.83 1.00
Printed-Board Assembly
802 F016104596 91.56 110.79
Collector Box Top
883 F016104032 18.19 22.01
Wheel
887 F016104220 8.45 10.22
