Here you will find all available parts and drawings of the 'Bosch 3600H85D03 (ROTAK32LIHIGHPOWER)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

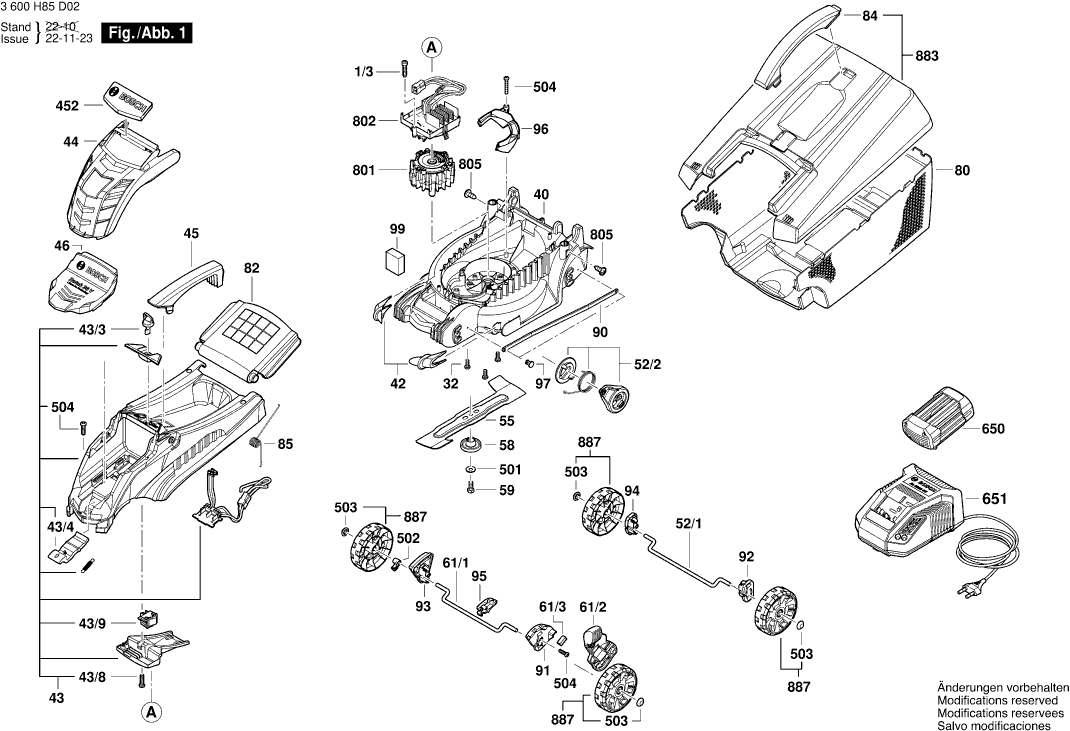

Technical drawing of model Bosch 3600H85D03 (ROTAK32LIHIGHPOWER)
Spare parts list of model Bosch 3600H85D03 (ROTAK32LIHIGHPOWER)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw M4x35 For metal cover | ||||
| 1/3 | F016L66662 | 1.00 | 1.21 | |
| Screw | ||||
| 32 | F016L66162 | 1.00 | 1.21 | |
| Mower deck BLACK | ||||
| 40 | F016L68051 | 33.33 | 40.33 | |
| Comb RED | ||||
| 42 | F016L66697 | 1.49 | 1.80 | |
| Motor Hood | ||||
| 43 | F016L68000 | 41.30 | 49.97 | |
| Motor Hood | ||||
| 43/1 | F016L68001 | 13.90 | 16.82 | |
| Cover | ||||
| 43/2 | F016L68002 | 1.32 | 1.60 | |
| Key | ||||
| 43/3 | F016L68003 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 43/4 | F016L68004 | |||
| No longer available, no replacement | ||||
| 43/5 | F016L66108 | |||
| No longer available, no replacement | ||||
| 43/6 | F016104654 | |||
| Cable routing | ||||
| 43/7 | F016L68017 | 1.00 | 1.21 | |
| Self-Cutting Screw | ||||
| 43/8 | F016T49429 | 1.00 | 1.21 | |
| Switch | ||||
| 43/9 | F016104250 | 8.35 | 10.10 | |
| grille SILVER | ||||
| 44 | F016L68005 | 9.47 | 11.46 | |
| Carrying Handle | ||||
| 45 | F016L66654 | 2.86 | 3.46 | |
| Battery Cover | ||||
| 46 | F016L68006 | 5.96 | 7.21 | |
| Axle | ||||
| 52/1 | F016L68031 | 2.86 | 3.46 | |
| Lever | ||||
| 52/2 | F016L68050 | 6.73 | 8.14 | |
| Cutter Blade | ||||
| 55 | 1600A025F8 | 12.82 | 15.51 | |
| Adaptor plate | ||||
| 58 | F016L68024 | 4.58 | 5.54 | |
| Hex Screw | ||||
| 59 | 160343508F | 1.00 | 1.21 | |
| Trunnion | ||||
| 59 | F016L64679 | 1.00 | 1.21 | |
| Axle | ||||
| 61/1 | F016L68029 | 2.40 | 2.90 | |
| Lever | ||||
| 61/2 | F016L68012 | 2.86 | 3.46 | |
| Spring | ||||
| 61/3 | F016L68027 | 2.40 | 2.90 | |
| Handle top assembly | ||||
| 75 | F016L68053 | 37.50 | 45.38 | |
| Handle | ||||
| 75/1 | F016L90608 | 14.94 | 18.08 | |
| Handle | ||||
| 75/1 | F016L68054 | 13.13 | 15.89 | |
| Self-Cutting Screw | ||||
| 75/14 | F016T49429 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 75/2 | F016104165 | 10.68 | 12.92 | |
| Connector Housing | ||||
| 75/3/1 | F016L67218 | 4.94 | 5.98 | |
| Cable Guide | ||||
| 75/3/804 | F016104213 | 8.35 | 10.10 | |
| Push-Button | ||||
| 75/4/1 | F016L67150 | 1.00 | 1.21 | |
| Button Spring | ||||
| 75/4/2 | F016L67151 | 1.00 | 1.21 | |
| Housing Set | ||||
| 75/6 | F016104159 | 18.94 | 22.92 | |
| No longer available, no replacement | ||||
| 75/7 | F016104160 | |||
| Switch Kit | ||||
| 75/8 | F016104163 | 13.13 | 15.89 | |
| Sleeve | ||||
| 75/805 | F016104161 | 5.81 | 7.03 | |
| Handle Bar BLACK | ||||
| 78 | F016L66682 | 8.35 | 10.10 | |
| Handle Bar BLACK | ||||
| 79 | F016L66655 | 8.35 | 10.10 | |
| Collector Box Bottom | ||||
| 80 | F016L66683 | 13.13 | 15.89 | |
| Guard Flap | ||||
| 82 | F016L66686 | 4.18 | 5.06 | |
| Carrying Handle | ||||
| 84 | F016L66685 | 2.86 | 3.46 | |
| closing spring | ||||
| 85 | F016L66687 | 1.49 | 1.80 | |
| Linkage part | ||||
| 90 | F016L68025 | 7.46 | 9.03 | |
| Insert | ||||
| 91 | F016L68007 | 1.49 | 1.80 | |
| Insert | ||||
| 92 | F016L68008 | 1.49 | 1.80 | |
| Insert | ||||
| 93 | F016L68009 | 1.49 | 1.80 | |
| Insert | ||||
| 94 | F016L68010 | 1.49 | 1.80 | |
| Insert | ||||
| 95 | F016L68011 | 1.49 | 1.80 | |
| grille | ||||
| 96 | F016L68018 | 1.49 | 1.80 | |
| Clip | ||||
| 97 | F016L68014 | 1.49 | 1.80 | |
| Balance Weights | ||||
| 99 | F016L68034 | 8.35 | 10.10 | |
| Company Logo Rotak 32 LI High Power | ||||
| 452 | F016L68241 | 2.52 | 3.05 | |
| Plain Washer Ø8,15 MM | ||||
| 501 | F016T40590 | 1.49 | 1.80 | |
| Spacer Ø8,15 MM | ||||
| 502 | F016L68015 | 1.00 | 1.21 | |
| Securing Cap | ||||
| 503 | F016T48990 | 1.00 | 1.21 | |
| Self-Cutting Screw | ||||
| 504 | F016T49429 | 1.00 | 1.21 | |
| Battery Pack GBA 36V 4,0Ah H-C | ||||
| 650 | 1607A350R2 | 262.05 | 317.08 | |
| Battery Pack 36V 2,0 Ah Li | ||||
| 650 | 2607336913 | 187.62 | 227.02 | |
| Fast Charger EU AL 36V-20/36V | ||||
| 651 | 2607226273 | 64.67 | 78.25 | |
| DC motor | ||||
| 801 | F016104219 | 210.30 | 254.46 | |
| Printed-Board Assembly | ||||
| 802 | F016104596 | 102.63 | 124.18 | |
| Screw M5x8 Csk Hd. | ||||
| 805 | F016L36542 | 2.40 | 2.90 | |
| Collector Box Top | ||||
| 883 | F016104032 | 21.30 | 25.77 | |
| Wheel | ||||
| 887 | F016104220 | 10.90 | 13.19 | |
| Clamping Lever | ||||
| 894 | F016L67530 | 10.90 | 13.19 | |
| Cable Clip ROTAK II | ||||
| 895 | F016L66895 | 1.00 | 1.21 | |
