Here you will find all available parts and drawings of the 'Bosch 3603C99B01 (PWS8-125CE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

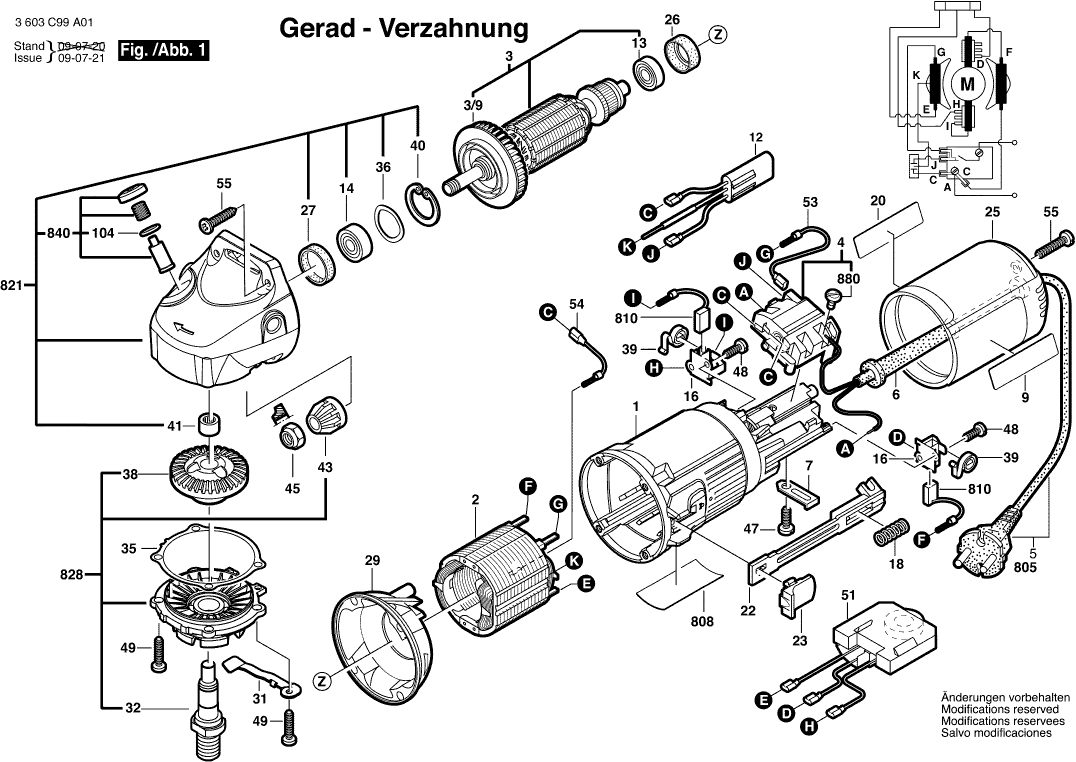

Technical drawing of model Bosch 3603C99B01 (PWS8-125CE)
Spare parts list of model Bosch 3603C99B01 (PWS8-125CE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609003321 | 7.46 | 9.03 | |
| Field | ||||
| 2 | 2609000764 | 13.13 | 15.89 | |
| Armature | ||||
| 3 | 2609000763 | 39.14 | 47.36 | |
| Fan | ||||
| 3/9 | 1606610121 | 1.49 | 1.80 | |
| On-Off Switch | ||||
| 4 | 1607200086 | 10.90 | 13.19 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 2609000831 | 3.44 | 4.16 | |
| Suppression Filter | ||||
| 12 | 2609001564 | 5.81 | 7.03 | |
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 2600905080 | 4.18 | 5.06 | |
| Brush Holder | ||||
| 16 | 1600A003G4 | 3.44 | 4.16 | |
| Compression Spring | ||||
| 18 | 1619P09932 | 1.28 | 1.55 | |
| Compression Spring | ||||
| 18 | 1604611026 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 20 | 2609000832 | 3.44 | 4.16 | |
| Adjusting Slide | ||||
| 22 | 1602319002 | 2.40 | 2.90 | |
| Switch Button | ||||
| 23 | 2609002368 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 25 | 2609000250 | 4.18 | 5.06 | |
| Rubber Bushing | ||||
| 26 | 1600502020 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1601328005 | 2.40 | 2.90 | |
| Leaf Spring | ||||
| 31 | 2609002205 | 4.94 | 5.98 | |
| Grinding Spindle | ||||
| 32 | 1607000D6A | 7.46 | 9.03 | |
| Shim | ||||
| 35 | 2609002210 | 2.08 | 2.52 | |
| Shim | ||||
| 35 | 2609002208 | 1.00 | 1.21 | |
| Shim | ||||
| 35 | 2609002209 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 36 | 1600150011 | 1.00 | 1.21 | |
| Crown Gear | ||||
| 38 | 1606333606 | 10.90 | 13.19 | |
| Spiral Spring | ||||
| 39 | 1604652013 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 40 | 2916660009 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 41 | 1600200029 | 3.71 | 4.49 | |
| Bevel Gear | ||||
| 43 | 1606333605 | 3.44 | 4.16 | |
| Hex Nut | ||||
| 45 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 47 | 2603490021 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 48 | 2603490017 | 2.08 | 2.52 | |
| Thread-forming tap. Screw | ||||
| 49 | 2914491410 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 51 | 1607233020 | |||
| Connecting Cable | ||||
| 53 | 1604448015 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 54 | 1604448016 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 55 | 2609001403 | 1.00 | 1.21 | |
| O-Ring | ||||
| 104 | 1600210044 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 200 | 2609002204 | 14.94 | 18.08 | |
| Handle | ||||
| 680 | 2609002198 | 9.67 | 11.70 | |
| Round Nut | ||||
| 681 | 1603345043 | 8.35 | 10.10 | |
| Pin-Type Face-Wrench | ||||
| 682 | 1619P08927 | 4.18 | 5.06 | |
| Clamping Flange | ||||
| 683 | 2605703014 | 7.53 | 9.11 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 2609003667 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 810 | 2609004138 | |||
| Gear Housing | ||||
| 821 | 2609003777 | 21.30 | 25.77 | |
| No longer available, no replacement | ||||
| 828 | 2609003776 | |||
| Push-Button | ||||
| 840 | 1607000253 | 2.08 | 2.52 | |
| Pan head screw | ||||
| 880 | 2910110048 | 1.00 | 1.21 | |
