Here you will find all available parts and drawings of the 'Bosch 3603A64100 (PWS750-125)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

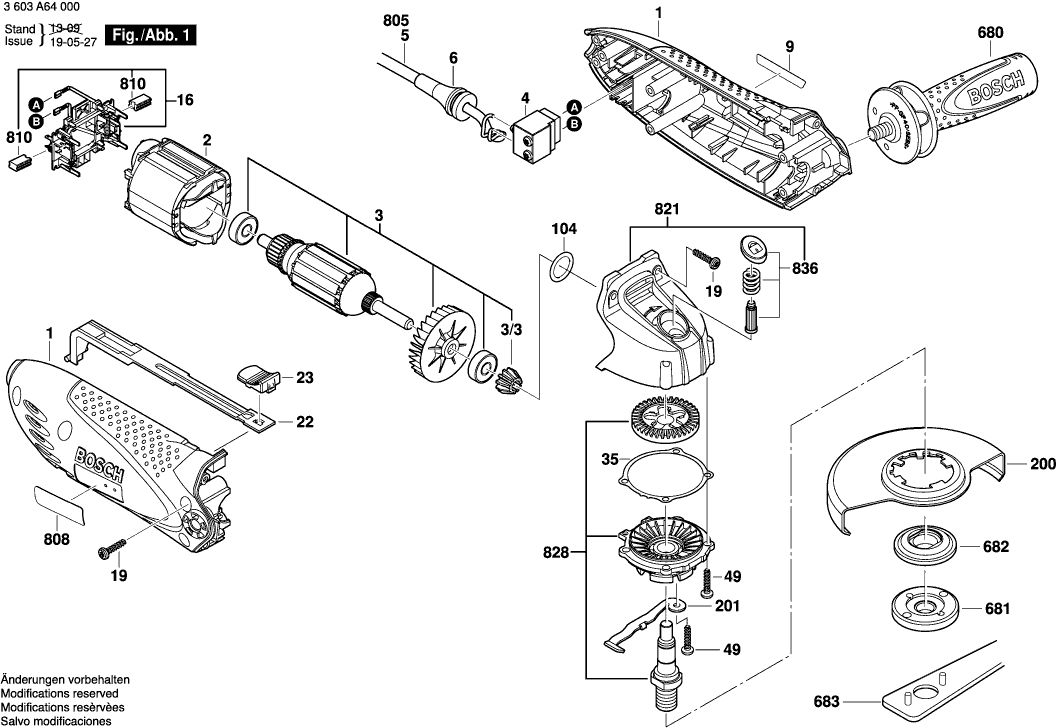

Technical drawing of model Bosch 3603A64100 (PWS750-125)
Spare parts list of model Bosch 3603A64100 (PWS750-125)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609002197 | 11.37 | 13.76 | |
| Field | ||||
| 2 | 2609002176 | 16.79 | 20.32 | |
| No longer available, no replacement | ||||
| 3 | 2609002409 | |||
| Pinion | ||||
| 3/3 | 16063332CN | 3.44 | 4.16 | |
| Switch | ||||
| 4 | 2607200673 | 12.82 | 15.51 | |
| Power supply cord | ||||
| 5 | 2609002907 | 10.90 | 13.19 | |
| Grommet | ||||
| 6 | 2609002019 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | 2609003078 | 3.44 | 4.16 | |
| Manufacturer's nameplate | ||||
| 9 | 2609002447 | 2.40 | 2.90 | |
| Brush Holder | ||||
| 16 | 2609006427 | 11.37 | 13.76 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 22 | 2609002202 | |||
| Switch Button | ||||
| 23 | 2609002368 | 1.49 | 1.80 | |
| Crown Gear | ||||
| 31 | 1606333624 | 10.90 | 13.19 | |
| Grinding Spindle | ||||
| 32 | 1607000D6A | 7.46 | 9.03 | |
| Shim | ||||
| 35 | 2609002210 | 2.08 | 2.52 | |
| Shim | ||||
| 35 | 2609002208 | 1.00 | 1.21 | |
| Shim | ||||
| 35 | 2609002209 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 2914491410 | 1.00 | 1.21 | |
| O-Ring | ||||
| 104 | 2609002454 | 1.49 | 1.80 | |
| Protective Cover | ||||
| 200 | 2609002204 | 14.94 | 18.08 | |
| Leaf Spring | ||||
| 201 | 2609002205 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 680 | 2609002892 | |||
| Round Nut | ||||
| 681 | 1603345043 | 8.35 | 10.10 | |
| Clamping Flange | ||||
| 682 | 2605703014 | 7.53 | 9.11 | |
| Pin-Type Face-Wrench | ||||
| 683 | 1619P08927 | 4.18 | 5.06 | |
| Nameplate | ||||
| 808 | 2609002451 | 2.08 | 2.52 | |
| Carbon-Brush Set | ||||
| 810 | 2610391290 | 7.32 | 8.86 | |
| No longer available, no replacement | ||||
| 821 | 2609002443 | |||
| Bearing Flange | ||||
| 828 | 2609002444 | 13.13 | 15.89 | |
| No longer available, no replacement | ||||
| 836 | 2609002634 | |||
