Here you will find all available parts and drawings of the 'Bosch 3603A64102 ( PWS750-115 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

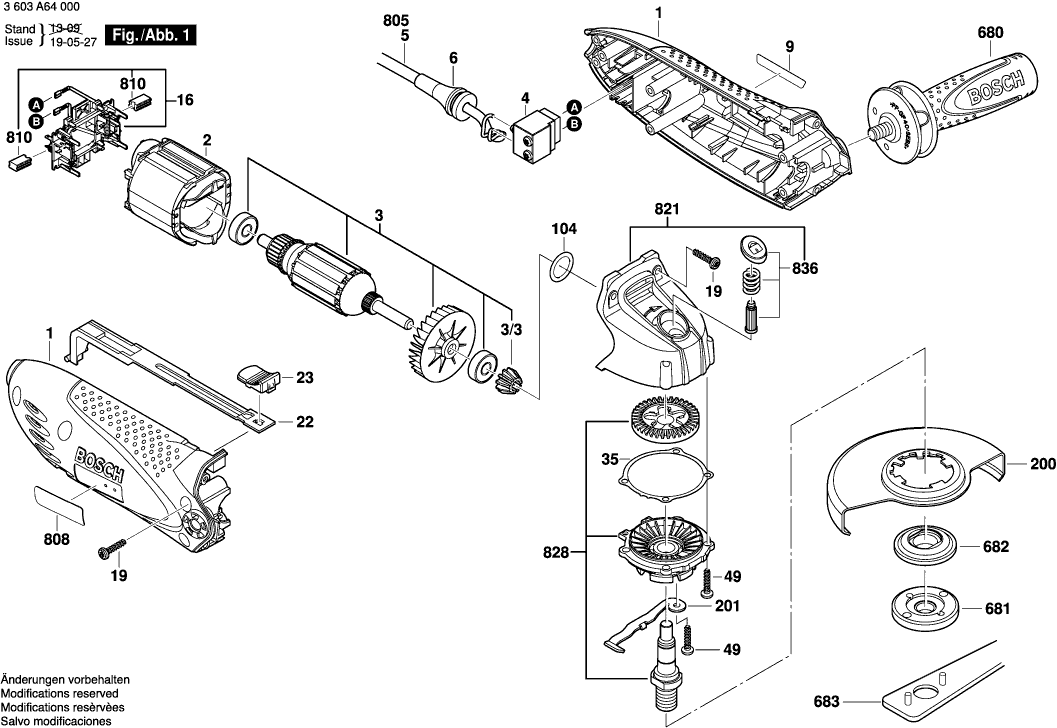

Technical drawing of model Bosch 3603A64102 ( PWS750-115 )
Spare parts list of model Bosch 3603A64102 ( PWS750-115 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing GREEN | ||||
| 1 | 2609002197 | 9.53 | 11.53 | |
| Field 220-230V | ||||
| 2 | 2609002175 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 3 | 2609002408 | |||
| Pinion | ||||
| 3/3 | 16063332CN | 2.71 | 3.28 | |
| Switch | ||||
| 4 | 2607200673 | 10.73 | 12.98 | |
| Power supply cord EU 2,65m 2x0,75 H05 VV-F | ||||
| 5 | 2609002907 | 8.45 | 10.22 | |
| Grommet | ||||
| 6 | 2609002019 | 1.94 | 2.35 | |
| Manufacturer's nameplate PWS 750-115 | ||||
| 9 | 2609002635 | 1.94 | 2.35 | |
| Brush Holder | ||||
| 16 | 2609006427 | 9.53 | 11.53 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Lever | ||||
| 22 | 2609002202 | 1.18 | 1.43 | |
| Switch Button BLACK | ||||
| 23 | 2609002368 | 1.18 | 1.43 | |
| Crown Gear | ||||
| 31 | 1606333624 | 8.45 | 10.22 | |
| Grinding Spindle | ||||
| 32 | 1607000D6A | 5.83 | 7.05 | |
| Shim 0,3 MM | ||||
| 35 | 2609002210 | 1.70 | 2.06 | |
| Shim 0,1 MM | ||||
| 35 | 2609002208 | 0.83 | 1.00 | |
| Shim 0,2 MM | ||||
| 35 | 2609002209 | 0.83 | 1.00 | |
| Thread-forming tap. Screw M4x16 | ||||
| 49 | 2914491410 | 0.83 | 1.00 | |
| O-Ring Ø22x2 MM | ||||
| 104 | 2609002454 | 1.18 | 1.43 | |
| Protective Cover Ø115 MM | ||||
| 200 | 2609002203 | 11.88 | 14.37 | |
| Leaf Spring | ||||
| 201 | 2609002205 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 680 | 2609002892 | |||
| Round Nut M14 | ||||
| 681 | 1603345043 | 6.54 | 7.91 | |
| Clamping Flange Ø22,3xØ42 MM | ||||
| 682 | 2605703014 | 4.10 | 4.96 | |
| Pin-Type Face-Wrench | ||||
| 683 | 1619P08927 | 3.31 | 4.01 | |
| Nameplate | ||||
| 808 | 2609002641 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 2610391290 | 6.54 | 7.91 | |
| Gear Housing | ||||
| 821 | 2609002443 | 10.73 | 12.98 | |
| Bearing Flange | ||||
| 828 | 2609002444 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 836 | 2609002634 | |||
