Here you will find all available parts and drawings of the 'Bosch 0603373060 (PWS7-115)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

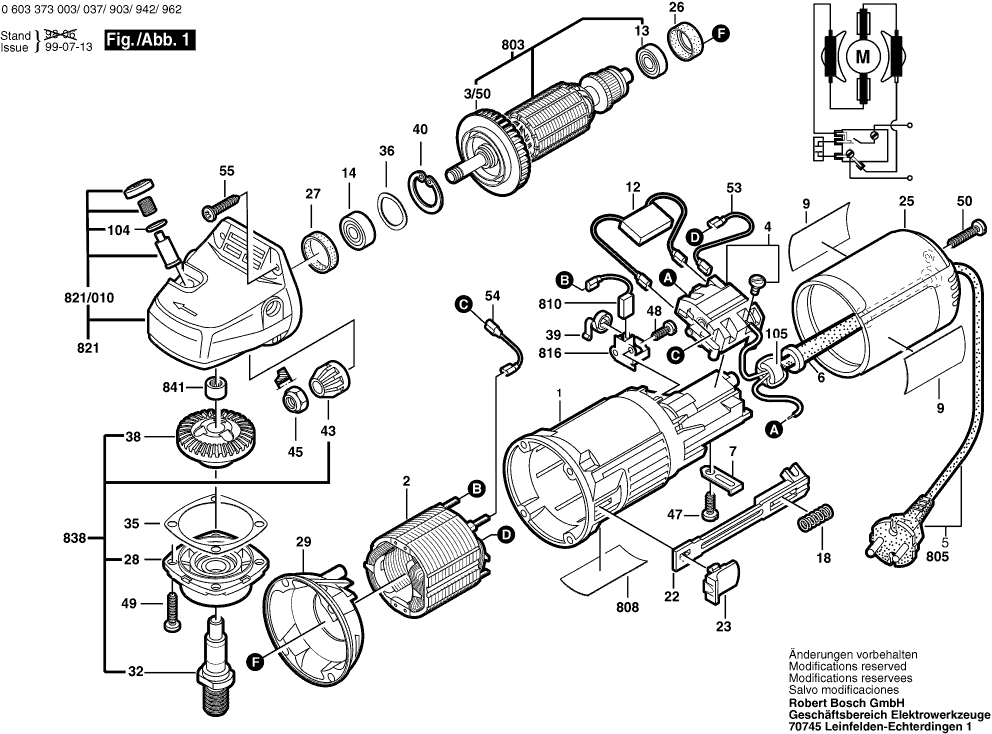

Technical drawing of model Bosch 0603373060 (PWS7-115)
Spare parts list of model Bosch 0603373060 (PWS7-115)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1605108189 | |||
| No longer available, no replacement | ||||
| 2 | 1604220272 | |||
| Fan | ||||
| 3/50 | 1606610121 | 1.49 | 1.80 | |
| On-Off Switch | ||||
| 4 | 1607200086 | 10.90 | 13.19 | |
| Pan head screw | ||||
| 4/10 | 2910110048 | 1.00 | 1.21 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Grommet | ||||
| 6 | 2600703013 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 9 | 1601118710 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 12 | 1607328029 | |||
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1600905011 | 5.81 | 7.03 | |
| Compression Spring | ||||
| 18 | 1619P09932 | 1.28 | 1.55 | |
| Compression Spring | ||||
| 18 | 1604611026 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 22 | 1602319002 | 2.40 | 2.90 | |
| Switch Handle | ||||
| 23 | 1602026057 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 25 | 1600508005 | 2.86 | 3.46 | |
| Rubber Bushing | ||||
| 26 | 1600502020 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 28 | 1605805061 | |||
| Air-Deflector Ring | ||||
| 29 | 1601328005 | 2.40 | 2.90 | |
| Grinding Spindle | ||||
| 32 | 1607000D6A | 7.46 | 9.03 | |
| Shim | ||||
| 35 | 1600136010 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136011 | 2.08 | 2.52 | |
| Shim | ||||
| 35 | 1600136012 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 36 | 1600150011 | 1.00 | 1.21 | |
| Crown Gear | ||||
| 38 | 1606333606 | 10.90 | 13.19 | |
| Spiral Spring | ||||
| 39 | 1604652013 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 40 | 2916660009 | 2.08 | 2.52 | |
| Bevel Gear | ||||
| 43 | 1606333605 | 3.44 | 4.16 | |
| Hex Nut | ||||
| 45 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 47 | 2910211018 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 48 | 2910211005 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 49 | 2912401420 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 50 | 2912401420 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 53 | 1604448015 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 54 | 1604448016 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 55 | 2912401420 | 1.00 | 1.21 | |
| O-Ring | ||||
| 104 | 1600210044 | 1.00 | 1.21 | |
| O-Ring | ||||
| 650/50/20 | 1600210039 | 2.08 | 2.52 | |
| Hex Socket Head Cap Screw | ||||
| 652/20 | 2910141197 | 1.44 | 1.74 | |
| Protective Cover | ||||
| 750/10 | 1600A025XP | 9.67 | 11.70 | |
| Auxiliary Handle | ||||
| 750/10 | 160202509T | 3.44 | 4.16 | |
| Clamping Nut | ||||
| 750/20 | 1603340040 | 1.00 | 1.21 | |
| Pin-Type Face-Wrench | ||||
| 750/30 | 1607950043 | 1.00 | 1.21 | |
| Clamping-Flange | ||||
| 750/50 | 1605703099 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 752 | 1600A0136P | |||
| SNELSPANMOER | ||||
| 753 | 1603340027 | 45.52 | 55.08 | |
| Fast Locking Flange | ||||
| 753 | 1600A016PP | 41.30 | 49.97 | |
| Armature With Fan | ||||
| 803 | 1604010429 | 58.03 | 70.22 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607014116 | 10.90 | 13.19 | |
| Brush Holder | ||||
| 816 | 1600A003G4 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 821 | 1605806483 | |||
| Push-Button | ||||
| 821/010 | 1607000253 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 838 | 1607000943 | |||
| Needle bearing | ||||
| 841 | 1600910018 | 4.94 | 5.98 | |
