Here you will find all available parts and drawings of the 'Bosch 0603277703 (PWS6-115E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

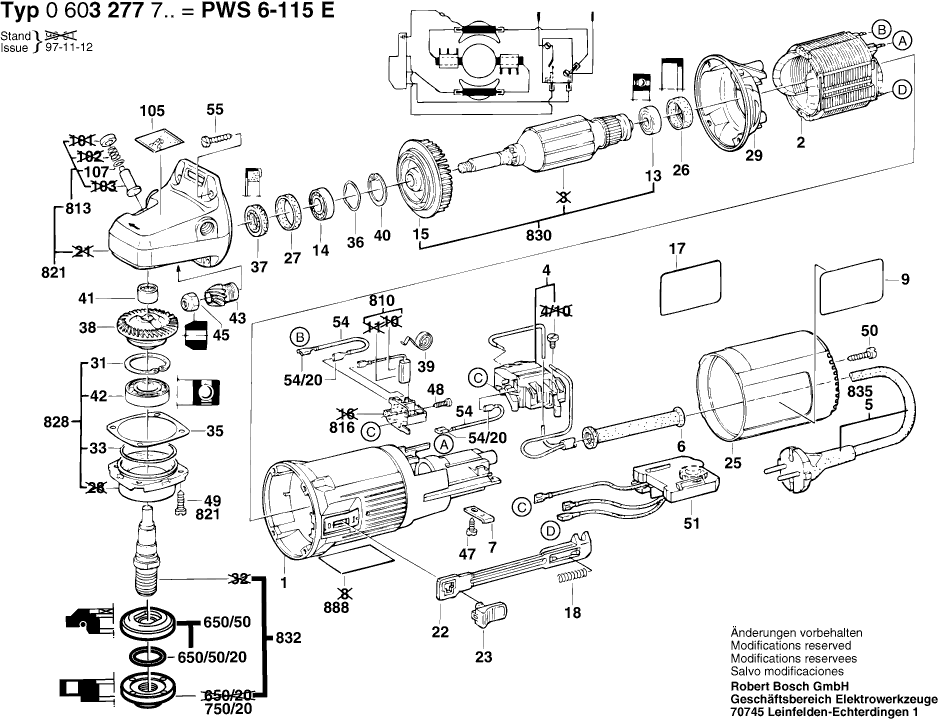

Technical drawing of model Bosch 0603277703 (PWS6-115E)
Spare parts list of model Bosch 0603277703 (PWS6-115E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1605108127 | |||
| No longer available, no replacement | ||||
| 2 | 1604220224 | |||
| On-Off Switch | ||||
| 4 | 1607200086 | 10.90 | 13.19 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Grommet | ||||
| 6 | 2600703013 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 1601110472 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1600905011 | 5.81 | 7.03 | |
| Fan | ||||
| 15 | 1606610121 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 17 | 1601110783 | 2.86 | 3.46 | |
| Compression Spring | ||||
| 18 | 1619P09932 | 1.28 | 1.55 | |
| Compression Spring | ||||
| 18 | 1604611026 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 22 | 1602319002 | 2.40 | 2.90 | |
| Switch Handle | ||||
| 23 | 1602026057 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 25 | 1600508009 | 6.73 | 8.14 | |
| Rubber Bushing | ||||
| 26 | 1600502020 | 2.40 | 2.90 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1601328005 | 2.40 | 2.90 | |
| Retaining clip | ||||
| 31 | 2916660013 | 2.08 | 2.52 | |
| O-Ring | ||||
| 33 | 3600210124 | 2.86 | 3.46 | |
| Shim | ||||
| 35 | 1600136010 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136011 | 2.08 | 2.52 | |
| Shim | ||||
| 35 | 1600136012 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 36 | 1600150011 | 1.00 | 1.21 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 38 | 1606333601 | |||
| Spiral Spring | ||||
| 39 | 1604652013 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 40 | 2916660009 | 2.08 | 2.52 | |
| Needle bearing | ||||
| 41 | 1600910018 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 42 | 1600905006 | 11.37 | 13.76 | |
| Bevel Gear | ||||
| 43 | 1606333242 | 52.45 | 63.46 | |
| Hex Nut | ||||
| 45 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 47 | 2910211018 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 48 | 2910211005 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 1603435026 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 50 | 2910211021 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 51 | 1607233024 | |||
| Connecting Cable | ||||
| 54 | 1604448006 | 2.40 | 2.90 | |
| Receptacle | ||||
| 54/20 | 1904478007 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 55 | 2912401021 | 1.00 | 1.21 | |
| Reference Plate | ||||
| 105 | 1601110474 | 2.40 | 2.90 | |
| O-Ring | ||||
| 107 | 1600210044 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 650/10 | 1600A025XP | 9.67 | 11.70 | |
| Auxiliary Handle | ||||
| 650/10 | 160202509T | 3.44 | 4.16 | |
| Pin-Type Face-Wrench | ||||
| 650/30 | 1607950052 | 3.44 | 4.16 | |
| Clamping-Flange | ||||
| 650/50 | 1605703099 | 1.00 | 1.21 | |
| O-Ring | ||||
| 650/50/20 | 1600210039 | 2.08 | 2.52 | |
| Hexagon Socket Screw Key | ||||
| 650/60 | 2610364015 | 3.44 | 4.16 | |
| Hex Socket Head Cap Screw | ||||
| 652/20 | 2910141197 | 1.44 | 1.74 | |
| No longer available, no replacement | ||||
| 700 | 2605510066 | |||
| No longer available, no replacement | ||||
| 700/10 | 1605510201 | |||
| Hex Socket Head Cap Screw | ||||
| 700/10/20 | 2910141197 | 1.44 | 1.74 | |
| No longer available, no replacement | ||||
| 700/20 | 1608135004 | |||
| Round-Head Bolt | ||||
| 700/20/30 | 2910281158 | 1.49 | 1.80 | |
| Wing Nut | ||||
| 700/20/40 | 2915191105 | 3.44 | 4.16 | |
| Compression Spring | ||||
| 700/20/50 | 1604643004 | 2.40 | 2.90 | |
| Offset Screwdriver | ||||
| 700/30 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 700/30 | 2610364015 | 3.44 | 4.16 | |
| Round Nut | ||||
| 750/20 | 1603340015 | 1.00 | 1.21 | |
| Carbon-Brush Set | ||||
| 810 | 1607014116 | 10.90 | 13.19 | |
| Push-Button | ||||
| 813 | 1607000253 | 2.08 | 2.52 | |
| Brush Holder | ||||
| 816 | 1600A003G4 | 3.44 | 4.16 | |
| Gear Housing | ||||
| 821 | 1605806480 | 52.45 | 63.46 | |
| Bearing Flange | ||||
| 828 | 1607000936 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 830 | 1604010259 | |||
| Grinding Spindle | ||||
| 832 | 1607000D6A | 7.46 | 9.03 | |
| Power supply cord | ||||
| 835 | 1607000386 | 18.94 | 22.92 | |
| No longer available, no replacement | ||||
| 870 | 2605510125 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
