Here you will find all available parts and drawings of the 'Bosch 0603278483 ( PWS550 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

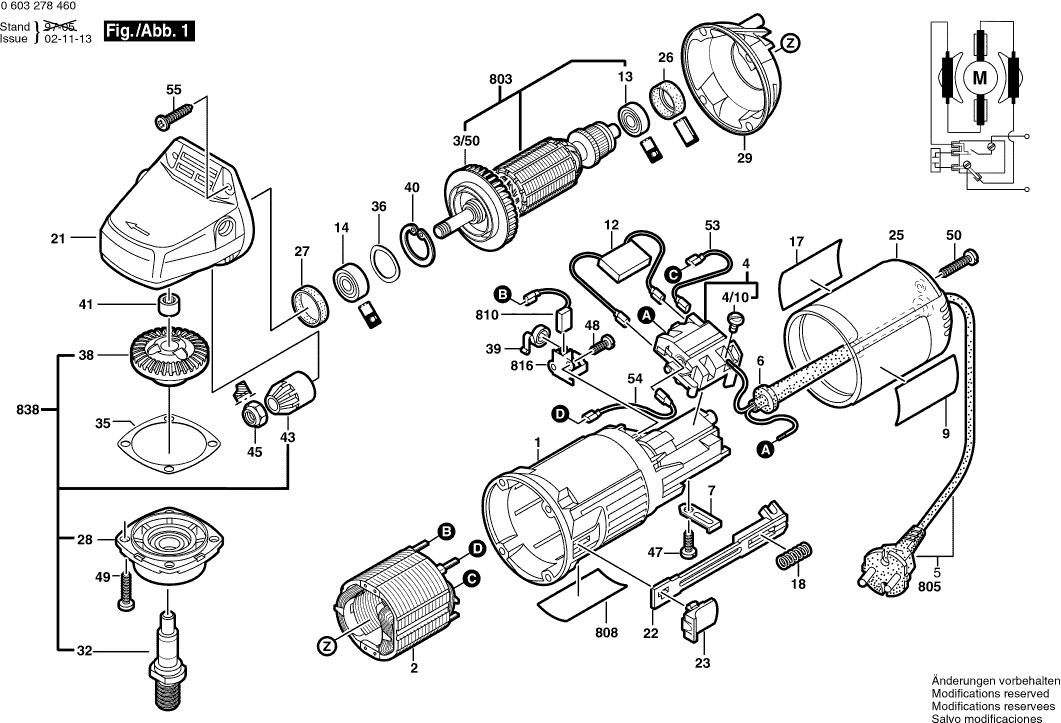

Technical drawing of model Bosch 0603278483 ( PWS550 )

Spare parts list of model Bosch 0603278483 ( PWS550 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
1 1605108127
Field 230-240V
2 1604220325 18.19 22.01
Fan
3/50 1606610121 1.18 1.43
On-Off Switch
4 1607200086 8.45 10.22
Pan head screw DIN 85-AM3x6-CUZN
4/10 2910110048 0.83 1.00
Grommet Ø8,3-Ø9,4x95 MM
6 2600703011 2.24 2.71
Grommet Ø6,5-Ø6,9x95 MM
6 2600703012 2.24 2.71
Grommet Ø7,6-Ø8,2x95 MM
6 2600703013 1.94 2.35
Fastening Clamp
7 1601302017 0.83 1.00
Manufacturer's nameplate
9 1601118174 3.31 4.01
No longer available, no replacement
12 1607328029
Ball Bearing 7x19x6
13 2600905032 4.10 4.96
groove ball bearing 8x22x7
14 1600905032 4.70 5.69
Manufacturer's nameplate
17 1601118154 1.18 1.43
Compression Spring
18 1604611026 0.83 1.00
Gear Housing BLACK
21 1605806429 5.83 7.05
Adjusting Slide
22 1602319002 1.94 2.35
Ratchet Cap
23 F016F05700 1.00 1.21
Housing Cover GREEN
25 1600508005 2.24 2.71
Rubber Bushing
26 1600502020 1.94 2.35
Rubber Ring
27 1600206025 1.70 2.06
No longer available, no replacement
28 1605805061
Air-Deflector Ring
29 1601328005 1.94 2.35
Grinding Spindle
32 1607000D6A 5.83 7.05
Shim 0,2 MM THICK
35 1600136010 1.94 2.35
Shim 0,3 MM THICK
35 1600136011 1.70 2.06
Shim 0,1 MM THICK
35 1600136012 0.83 1.00
Spring Washer
36 1600150011 0.83 1.00
Crown Gear Z=36
38 1606333606 8.45 10.22
Spiral Spring
39 1604652013 1.18 1.43
Spring retaining ring DIN 472-25x1,2MM
40 2916660009 1.70 2.06
Needle bearing Ø8xØ12x8 MM
41 1600910018 4.10 4.96
Bevel Gear Z=11
43 1606333605 2.71 3.28
Hex Nut M7, SW10
45 1603300016 1.18 1.43
Tapping Screw DIN 7971-ST3,9x13-F
47 2910211018 0.83 1.00
Tapping Screw DIN 7971-ST2,9x9,5-F
48 2910211005 0.83 1.00
Tapping Screw DIN7981-ST3,9x19-F-Z
49 2912401420 0.83 1.00
Tapping Screw DIN7981-ST3,9x19-F-Z
50 2912401420 0.83 1.00
Connecting Cable
53 1604448015 0.83 1.00
Connecting Cable
54 1604448016 1.18 1.43
Tapping Screw DIN7981-ST3,9x19-F-Z
55 2912401420 0.83 1.00
Round Nut M14
650/20 1603345043 6.54 7.91
Pin-Type Face-Wrench
650/30 1607950052 2.71 3.28
Clamping Flange Ø22,3xØ42 MM
650/40 2605703014 4.10 4.96
O-Ring 20,35x1,78 MM
650/40/20 1600210039 1.70 2.06
No longer available, no replacement
650/50 2607950511
Protective Cover
651/10 1600A025XP 7.58 9.17
No longer available, no replacement
652 1600A0136P
Hex Socket Head Cap Screw DIN 912-M6x16-8.8
652/20 2910141197 0.83 1.00
Armature With Fan 230-240V
803 1604010615 36.85 44.59
No longer available, no replacement
805 1603460163
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set
810 1607014116 8.45 10.22
Brush Holder
816 1600A003G4 2.71 3.28
No longer available, no replacement
838 1607000943
Fast Locking Flange
896 1600A016PP 36.85 44.59
