Here you will find all available parts and drawings of the 'Bosch 3603CC6030 (PWS2000-230JE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

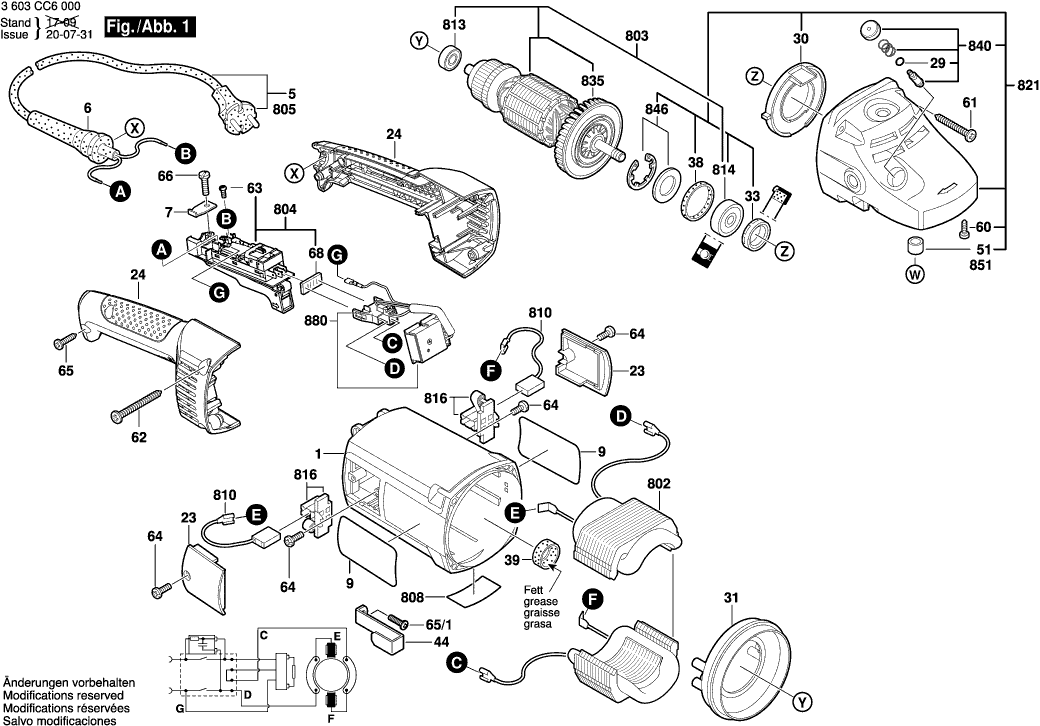

Technical drawing of model Bosch 3603CC6030 (PWS2000-230JE)
Spare parts list of model Bosch 3603CC6030 (PWS2000-230JE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1605108235 | 14.94 | 18.08 | |
| Power supply cord CH 2,65m 2 x 1,0mm H07 RN-F | ||||
| 5 | 1604460455 | 13.90 | 16.82 | |
| Grommet | ||||
| 6 | 1619P14369 | 1.49 | 1.80 | |
| Fastening Clamp | ||||
| 7 | 1601302018 | 1.49 | 1.80 | |
| Manufacturer's nameplate GWS 22-230 JH | ||||
| 9 | 160111C0BD | 2.40 | 2.90 | |
| Sealing cap | ||||
| 23 | 1605500235 | 4.18 | 5.06 | |
| Handle | ||||
| 24 | 160513215L | 14.94 | 18.08 | |
| O-Ring | ||||
| 28 | 1600210033 | 1.49 | 1.80 | |
| O-Ring | ||||
| 29 | 1600210045 | 1.49 | 1.80 | |
| Air Distributor | ||||
| 30 | 1600591035 | 2.40 | 2.90 | |
| Air-Deflector Ring | ||||
| 31 | 1619P17209 | 2.08 | 2.52 | |
| Retaining snap ring | ||||
| 32 | 1600290019 | 1.49 | 1.80 | |
| Rotary shaft lip seal | ||||
| 33 | 1600290064 | 2.08 | 2.52 | |
| Shim | ||||
| 34 | 1600190021 | 2.40 | 2.90 | |
| Shim | ||||
| 34 | 1600190022 | 1.49 | 1.80 | |
| Shim | ||||
| 34 | 1600190020 | 1.49 | 1.80 | |
| Shim | ||||
| 34 | 1600190037 | 1.00 | 1.21 | |
| Shim | ||||
| 34 | 1600190038 | 1.00 | 1.21 | |
| Shim | ||||
| 34 | 1600190039 | 1.00 | 1.21 | |
| Shim | ||||
| 34 | 1600190040 | 1.00 | 1.21 | |
| Felt Washer | ||||
| 35 | 1600205034 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 38 | 1600206020 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 39 | 1600206030 | 1.49 | 1.80 | |
| Pickup Clip | ||||
| 44 | 1601334009 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 45 | 1603300019 | 1.49 | 1.80 | |
| Plain bearing | ||||
| 51 | 1600200031 | 2.86 | 3.46 | |
| Thread-forming tap. Screw | ||||
| 60 | 1603435023 | 2.08 | 2.52 | |
| Tapping Screw | ||||
| 61 | 2912401038 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 62 | 1603435024 | 1.49 | 1.80 | |
| Pan head screw | ||||
| 63 | 1603410014 | 1.49 | 1.80 | |
| Plastic-Cutting Screw | ||||
| 64 | 1603435042 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 65 | 2912401020 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 66 | 2910211019 | 1.00 | 1.21 | |
| Sealing Plate | ||||
| 68 | 1601006011 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 69 | 2916650905 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 651 | 1600A00XM0 | 21.30 | 25.77 | |
| Field | ||||
| 802 | 1604220380 | 34.82 | 42.13 | |
| Armature | ||||
| 803 | 1604011252 | 64.67 | 78.25 | |
| On-Off Switch | ||||
| 804 | 1607000C14 | 27.81 | 33.65 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607014171 | 12.82 | 15.51 | |
| groove ball bearing | ||||
| 813 | 1600905011 | 5.81 | 7.03 | |
| groove ball bearing | ||||
| 814 | 1600905028 | 12.09 | 14.63 | |
| Brush Holder | ||||
| 816 | 1604336048 | 6.53 | 7.90 | |
| Gear Housing | ||||
| 821 | 160580655D | 60.65 | 73.39 | |
| Bearing Flange | ||||
| 822 | 1619P15301 | 18.94 | 22.92 | |
| Bearing Flange | ||||
| 823 | 16058080B3 | 58.03 | 70.22 | |
| Grinding Spindle | ||||
| 825 | 1607000CU5 | 12.82 | 15.51 | |
| Bevel Gear Set | ||||
| 826 | 1607000CV1 | 31.42 | 38.02 | |
| Fan | ||||
| 835 | 1606610127 | 2.86 | 3.46 | |
| Push-Button | ||||
| 840 | 1607000354 | 5.96 | 7.21 | |
| Retaining Washer | ||||
| 846 | 1607000342 | 3.44 | 4.16 | |
| Needle-Roller Bearing | ||||
| 851 | 2600910001 | 4.18 | 5.06 | |
| Electronics Module | ||||
| 880 | 1607233319 | 41.30 | 49.97 | |
| Stopper | ||||
| 882 | 1619P06597 | 4.18 | 5.06 | |
| O-Ring | ||||
| 890 | 1600210039 | 2.08 | 2.52 | |
| Auxiliary Handle | ||||
| 891 | 16020250A1 | 13.13 | 15.89 | |
| Auxiliary Handle | ||||
| 891/1 | 160202509Z | 14.94 | 18.08 | |
| Pin-Type Face-Wrench | ||||
| 892 | F000632033 | 2.40 | 2.90 | |
| Clamping Flange | ||||
| 893 | 2605703014 | 7.53 | 9.11 | |
| Round Nut | ||||
| 894 | 1603345043 | 8.35 | 10.10 | |
| Fast Locking Flange | ||||
| 896 | 1600A016PP | 41.30 | 49.97 | |
