Here you will find all available parts and drawings of the 'Bosch 0603257903 (PWS1600)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

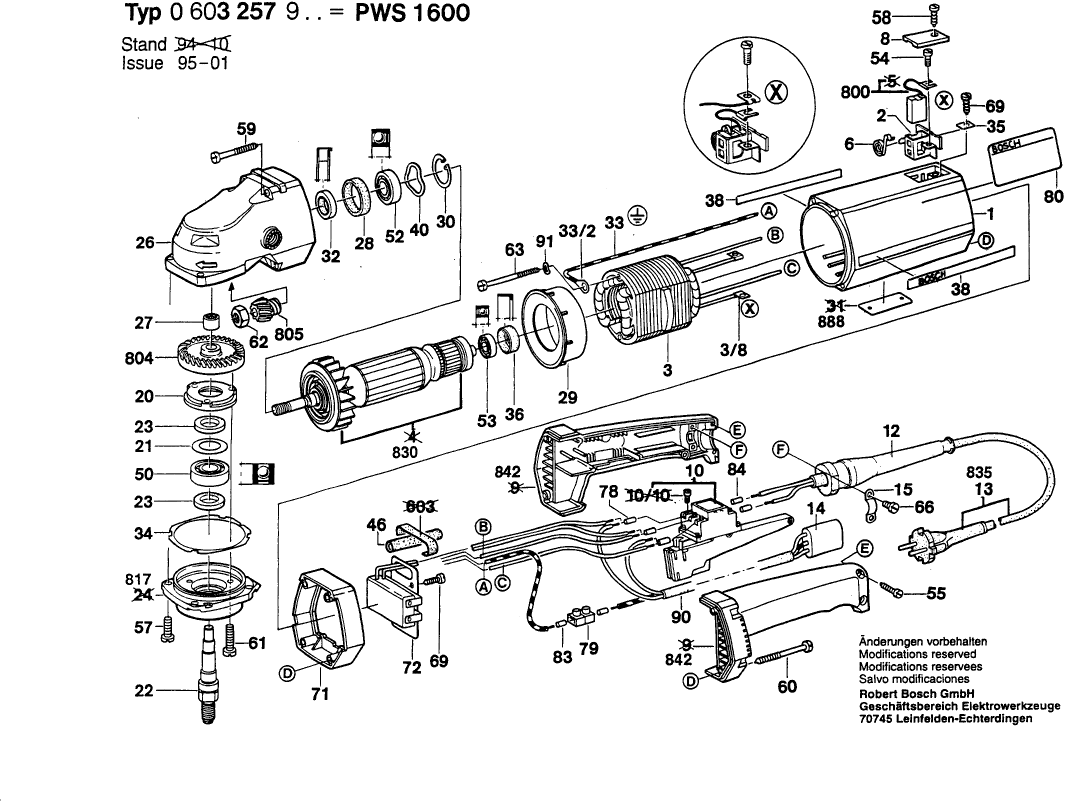

Technical drawing of model Bosch 0603257903 (PWS1600)
Spare parts list of model Bosch 0603257903 (PWS1600)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 1605108121 | |||
| Brush Holder | ||||
| 2 | 1604336008 | 18.94 | 22.92 | |
| Field | ||||
| 3 | 1604220215 | 58.03 | 70.22 | |
| Terminal lug | ||||
| 3/8 | 1901350003 | 1.00 | 1.21 | |
| Spiral Spring | ||||
| 6 | 1604652015 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 8 | 1605500109 | |||
| No longer available, no replacement | ||||
| 10 | 1607200084 | |||
| Grommet | ||||
| 12 | 3600703011 | 2.86 | 3.46 | |
| Suppression Filter | ||||
| 14 | 1607328034 | 4.18 | 5.06 | |
| Fastening Clamp | ||||
| 15 | 1601302014 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 20 | 1605808054 | |||
| No longer available, no replacement | ||||
| 21 | 1600102012 | |||
| No longer available, no replacement | ||||
| 22 | 1603523090 | |||
| Sealing disk | ||||
| 23 | 1600108055 | 1.00 | 1.21 | |
| Gear Housing | ||||
| 26 | 1605806403 | 27.81 | 33.65 | |
| Needle-Roller Bearing | ||||
| 27 | 2600910001 | 4.18 | 5.06 | |
| Rubber Ring | ||||
| 28 | 1600206020 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 29 | 1600502017 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 30 | 2916660017 | 4.18 | 5.06 | |
| Rotary shaft lip seal | ||||
| 32 | 1600290013 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 34 | 1600190004 | |||
| Tab Washer | ||||
| 35 | 1601030022 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 36 | 1600206015 | 2.08 | 2.52 | |
| Manufacturer's nameplate | ||||
| 38 | 1601110003 | 1.49 | 1.80 | |
| Spring Washer | ||||
| 40 | 1600150007 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 50 | 1900905227 | |||
| groove ball bearing | ||||
| 52 | 1600905028 | 12.09 | 14.63 | |
| groove ball bearing | ||||
| 53 | 1900900407 | 31.42 | 38.02 | |
| groove ball bearing | ||||
| 53 | 1600900029 | 8.35 | 10.10 | |
| Socket head cap screw | ||||
| 54 | 2910021118 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 55 | 2910211021 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 57 | 2910011157 | |||
| Tapping Screw | ||||
| 58 | 2910211220 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 59 | 1613435009 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 60 | 1613435009 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 61 | 2910011162 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 62 | 1603300018 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 63 | 1603435006 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 69 | 2910211011 | 1.00 | 1.21 | |
| Intermediate Flange | ||||
| 71 | 1605700020 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 72 | 1604503007 | |||
| End Splice | ||||
| 78 | 1600452001 | 1.49 | 1.80 | |
| Reference Plate | ||||
| 80 | 1601110180 | 1.00 | 1.21 | |
| End Splice | ||||
| 84 | 1900452003 | 2.40 | 2.90 | |
| Auxiliary Handle | ||||
| 650/10 | 160202509Z | 14.94 | 18.08 | |
| Auxiliary Handle | ||||
| 650/10 | 16020250A1 | 13.13 | 15.89 | |
| No longer available, no replacement | ||||
| 650/20 | 2607950511 | |||
| Pin-Type Face-Wrench | ||||
| 650/30 | 1607950061 | 4.18 | 5.06 | |
| Pin-Type Face-Wrench | ||||
| 650/30 | F000632033 | 2.40 | 2.90 | |
| Clamping-Flange | ||||
| 650/40 | 2600501006 | 16.79 | 20.32 | |
| Round Nut | ||||
| 650/50 | 2603345004 | 6.73 | 8.14 | |
| Offset Screwdriver | ||||
| 650/60 | 1907950007 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 652 | 2605510083 | |||
| No longer available, no replacement | ||||
| 652/20 | 2910141240 | |||
| Carbon-Brush Set | ||||
| 800 | 1607014103 | 13.13 | 15.89 | |
| Crown Gear | ||||
| 804 | 1606333200 | 58.03 | 70.22 | |
| Bevel Gear | ||||
| 805 | 1606333218 | 21.30 | 25.77 | |
| Assembly Of Service Parts | ||||
| 817 | 1607000229 | 14.94 | 18.08 | |
| Armature | ||||
| 830 | 1604011130 | 173.95 | 210.48 | |
| Power supply cord | ||||
| 835 | 1607000228 | 23.90 | 28.92 | |
| No longer available, no replacement | ||||
| 842 | 1607000186 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
