Here you will find all available parts and drawings of the 'Bosch 0603345903 ( PWS13-125CE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

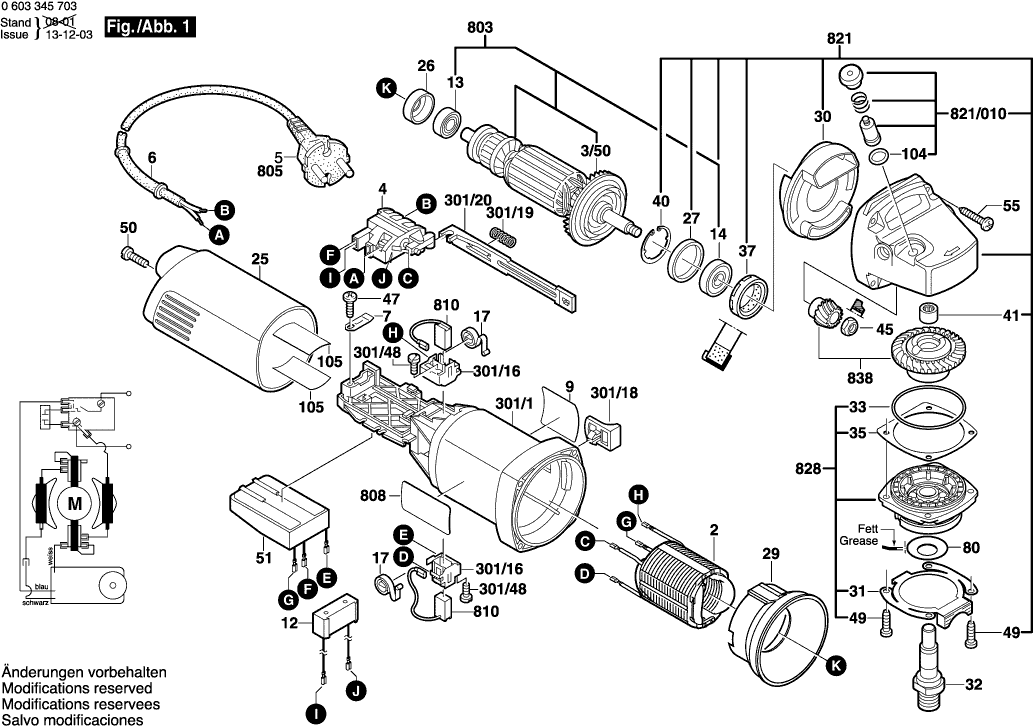

Technical drawing of model Bosch 0603345903 ( PWS13-125CE )

Spare parts list of model Bosch 0603345903 ( PWS13-125CE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field
2 1607000F0S 29.75 36.00
Field
2 160422054U 25.28 30.59
Fan
3/50 1606610132 1.70 2.06
Switch
4 1607200137 9.53 11.53
Grommet Ø8,3-Ø9,4x95 MM
6 2600703011 2.24 2.71
Grommet Ø6,5-Ø6,9x95 MM
6 2600703012 2.24 2.71
Grommet Ø7,6-Ø8,2x95 MM
6 2600703013 1.94 2.35
Fastening Clamp
7 1601302017 0.83 1.00
Manufacturer's nameplate PWS 13-125 CE
9 1601118530 1.70 2.06
Suppression Filter
12 1607328042 5.33 6.45
Ball Bearing 7x19x6
13 2600905032 4.10 4.96
groove ball bearing 8x22x7
14 1600905032 4.70 5.69
Spiral Spring
17 1604652013 1.18 1.43
Housing Cover GREEN
25 1600508018 5.33 6.45
Intermediate Ring
26 1600502023 1.70 2.06
Rubber Ring
27 1600206025 1.70 2.06
Air-Deflector Ring
29 1600591025 1.94 2.35
Air-Deflector Ring
30 1600591014 1.94 2.35
No longer available, no replacement
31 1601290007
Grinding Spindle
32 1607000D6A 5.83 7.05
O-Ring 46,0x1,1 MM RED
33 3600210124 2.24 2.71
Shim 0,1 MM THICK
35 1600136013 1.94 2.35
Shim 0,2 MM THICK
35 1600136014 1.94 2.35
Shim 0,3 MM THICK
35 1600136015 1.94 2.35
Rotary shaft lip seal
37 1600290016 1.94 2.35
Retaining clip
40 1600119011 1.70 2.06
Needle bearing Ø8xØ12x8 MM
41 1600910018 4.10 4.96
Hex Nut M7, SW10
45 1603300016 1.18 1.43
Tapping Screw DIN7981-ST3,9x13-C-Z
47 2912401018 0.83 1.00
Thread-forming tap. Screw
49 1603435026 1.70 2.06
Tapping Screw DIN7981-ST3,9x19-F-Z
50 2912401420 0.83 1.00
No longer available, no replacement
51 1607233110
Oval-Head Screw
55 1603415005 0.83 1.00
Cover Disc
80 1619P09390 1.70 2.06
O-Ring 4,5x1,0 MM BLUE
104 1600210044 0.83 1.00
Insulating Plate
105 1601008005 2.24 2.71
Motor Housing GREEN
301/1 1605108209 8.45 10.22
Brush Holder WITH DISCONNECTING DEVICE
301/16 1601323023 2.71 3.28
Ratchet Cap
301/18 F016F05700 1.00 1.21
Compression Spring
301/19 1604611026 0.83 1.00
Adjusting Slide
301/20 1602319011 1.18 1.43
Tapping Screw DIN7981-ST2,9x9,5C-Z
301/48 2912401005 0.83 1.00
O-Ring 20,35x1,78 MM
650/50/20 1600210039 1.70 2.06
No longer available, no replacement
700 2607001188
No information available, not orderable
700/10 2605510101
No longer available, no replacement
700/20 1608135004
Round-Head Bolt DIN 603-M 5x16
700/20/30 2910281158 1.18 1.43
Wing Nut M 5 DIN 315-G-5
700/20/40 2915191105 2.71 3.28
Compression Spring
700/20/50 1604643004 1.94 2.35
Protective Cover
750/10 1600A025XP 7.58 9.17
No information available, not orderable
750/20 1603340040
No information available, not orderable
750/30 1607950043
No information available, not orderable
750/50 1605703099
No information available, not orderable
751 2605510101
Fast Locking Flange
752 1600A016PP 36.85 44.59
No longer available, no replacement
753 1605438100
No longer available, no replacement
767 2605510107
No longer available, no replacement
767/703 2605730036
Armature With Fan 220-240V
803 1604010650 81.47 98.58
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set
810 1607014176 10.73 12.98
Gear Housing
821 1605806451 33.45 40.47
Push-Button BLACK
821/010 1607000253 1.70 2.06
Bearing Flange BLACK
828 1605805079 13.93 16.86
Gear Unit
838 1607000D4Y 12.41 15.02
