Here you will find all available parts and drawings of the 'Bosch 0603255003 (PWS115)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

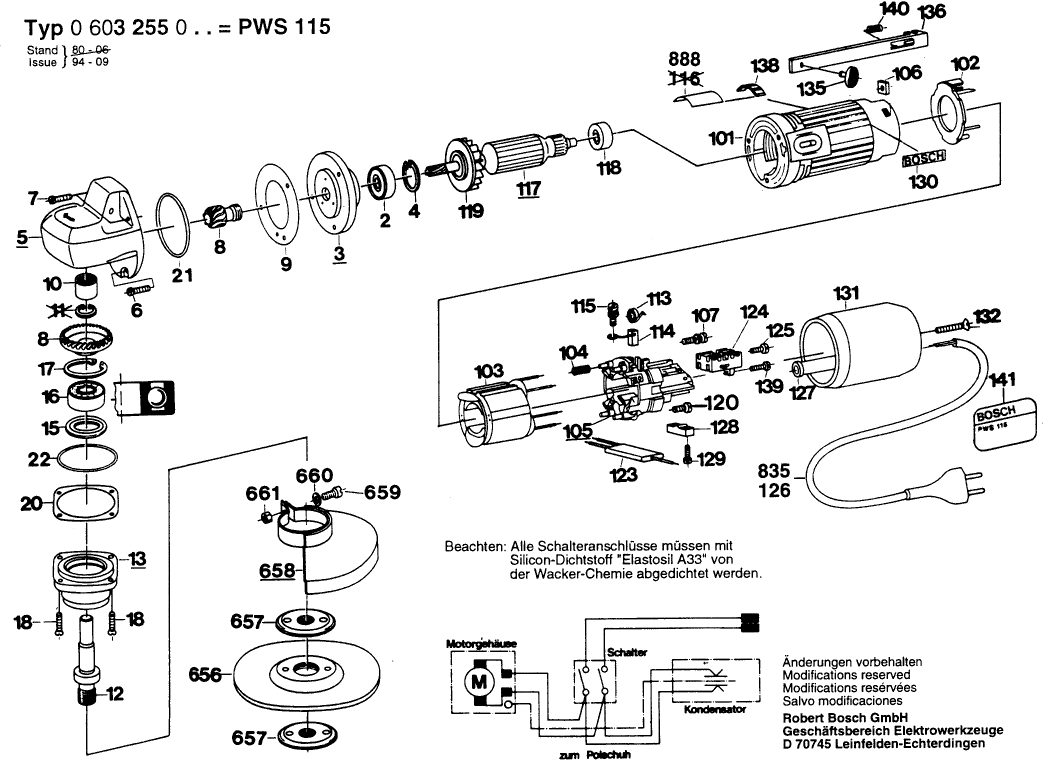

Technical drawing of model Bosch 0603255003 (PWS115)
Spare parts list of model Bosch 0603255003 (PWS115)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| groove ball bearing | ||||
| 2 | 2600905007 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 3 | 2605700918 | |||
| Spring retaining ring | ||||
| 4 | 2916660010 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 5 | 2605806968 | |||
| Socket head cap screw | ||||
| 6 | 2910021122 | 2.08 | 2.52 | |
| Socket head cap screw | ||||
| 7 | 2910021126 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 8 | 2607016015 | |||
| Shim | ||||
| 9 | 2600134002 | 1.00 | 1.21 | |
| Needle-Roller Bearing | ||||
| 10 | 2600910001 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 12 | 1603523065 | |||
| No longer available, no replacement | ||||
| 13 | 2605820900 | |||
| Cupped Washer | ||||
| 15 | 2600500033 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 16 | 1600905006 | 11.37 | 13.76 | |
| Retaining clip | ||||
| 17 | 2916660013 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 18 | 2910501125 | |||
| Shim | ||||
| 20 | 2600136002 | 1.49 | 1.80 | |
| Shim | ||||
| 20 | 2600136003 | 1.00 | 1.21 | |
| O-Ring | ||||
| 21 | 2600210003 | 2.40 | 2.90 | |
| O-Ring | ||||
| 22 | 2600210002 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 101 | 2605108902 | |||
| Cover Disc | ||||
| 102 | 2600522009 | 1.00 | 1.21 | |
| Field | ||||
| 103 | 2604220379 | 47.53 | 57.51 | |
| Compression Spring | ||||
| 104 | 2604611024 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 105 | 2605808910 | |||
| Square Nut | ||||
| 106 | 2603320001 | 1.49 | 1.80 | |
| Lens Head Screw | ||||
| 107 | 1613435034 | 1.00 | 1.21 | |
| Spiral Spring | ||||
| 113 | 2604652000 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 114 | 2604320902 | |||
| Screw and washer assembly | ||||
| 115 | 2914501011 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 117 | 2604010549 | |||
| groove ball bearing | ||||
| 118 | 1900905019 | 13.13 | 15.89 | |
| Fan | ||||
| 119 | 2606610016 | 2.40 | 2.90 | |
| Tapping Screw | ||||
| 120 | 2603435016 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 123 | 2607329076 | |||
| Switch | ||||
| 124 | 2607200674 | 14.94 | 18.08 | |
| Socket head cap screw | ||||
| 125 | 2603410001 | 1.49 | 1.80 | |
| Grommet | ||||
| 127 | 2600703011 | 2.86 | 3.46 | |
| Grommet | ||||
| 127 | 2600703012 | 2.86 | 3.46 | |
| Grommet | ||||
| 127 | 2600703013 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 128 | 2601035001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 129 | 2910211019 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 130 | 1601110013 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 131 | 2600508001 | 1.00 | 1.21 | |
| Rec ct-sunk tapping screw | ||||
| 132 | 2910601020 | 1.00 | 1.21 | |
| Switch Handle | ||||
| 135 | 2602026015 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 136 | 2602319004 | |||
| Intermediate Piece | ||||
| 138 | 1600026000 | 1.00 | 1.21 | |
| Intermediate Piece | ||||
| 138 | 2600026002 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 139 | 2910211005 | 1.00 | 1.21 | |
| Sticker | ||||
| 141 | 2601110232 | 1.00 | 1.21 | |
| Offset Screwdriver | ||||
| 651 | 1907950007 | 4.94 | 5.98 | |
| Round Nut | ||||
| 657 | 2603340013 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 658 | 2605510002 | |||
| Socket head cap screw | ||||
| 659 | 2910011152 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 660 | 2916011011 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 661 | 2915011006 | |||
| Power supply cord | ||||
| 835 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
