Here you will find all available parts and drawings of the 'Bosch 3603CA2600 ( PWS1000-125 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

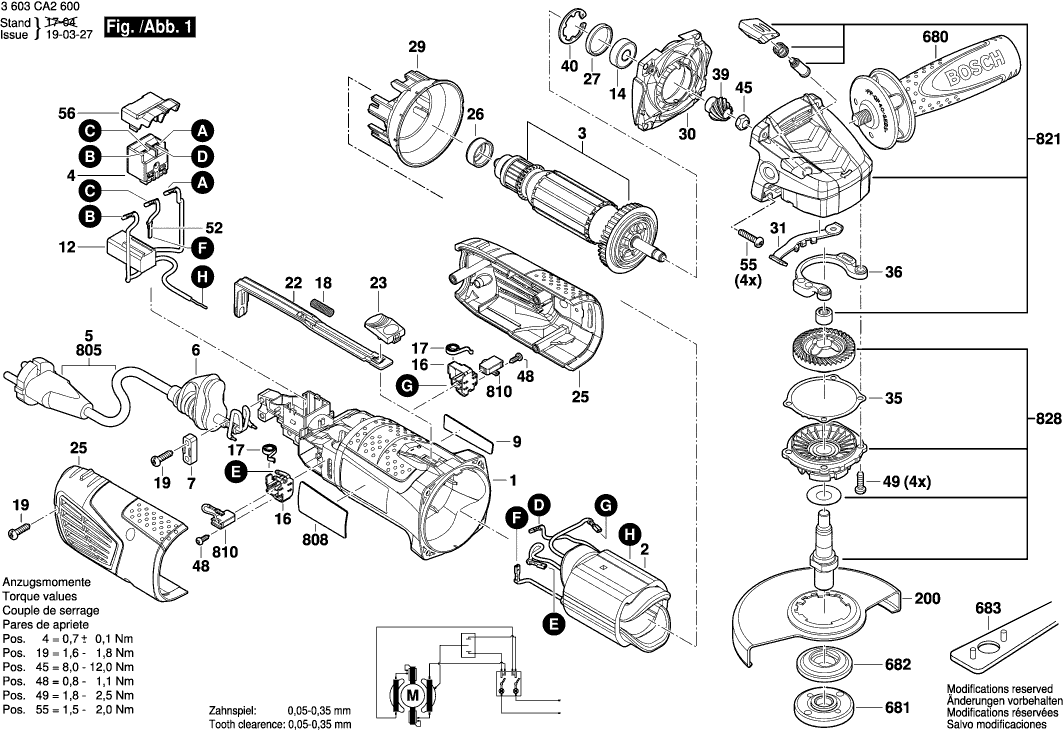

Technical drawing of model Bosch 3603CA2600 ( PWS1000-125 )
Spare parts list of model Bosch 3603CA2600 ( PWS1000-125 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609006792 | 10.73 | 12.98 | |
| Field | ||||
| 2 | 1607000F0R | 29.75 | 36.00 | |
| Field | ||||
| 2 | 160422054J | 22.36 | 27.06 | |
| Armature 220-240V | ||||
| 3 | 2609006965 | 44.82 | 54.23 | |
| Switch | ||||
| 4 | 1607200146 | 7.58 | 9.17 | |
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2609006376 | 0.83 | 1.00 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate PWS 1000-125 | ||||
| 9 | 2609006826 | 1.94 | 2.35 | |
| Suppression Filter | ||||
| 12 | 2609007029 | 5.33 | 6.45 | |
| groove ball bearing | ||||
| 14 | 2600905078 | 5.33 | 6.45 | |
| Brush Holder WITH DISCONNECTING DEVICE | ||||
| 16 | 1601323023 | 2.71 | 3.28 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 18 | 2609007523 | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Lever | ||||
| 22 | 2609006794 | 0.83 | 1.00 | |
| Switch Button | ||||
| 23 | 1600A007UL | 0.83 | 1.00 | |
| Housing Cover | ||||
| 25 | 2609006793 | 7.58 | 9.17 | |
| Rubber Ring | ||||
| 26 | 1600206036 | 1.18 | 1.43 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 1.70 | 2.06 | |
| Air-Deflector Ring | ||||
| 29 | 2609006367 | 1.18 | 1.43 | |
| Baffle | ||||
| 30 | 2609006366 | 1.70 | 2.06 | |
| Leaf Spring | ||||
| 31 | 2609002205 | 4.10 | 4.96 | |
| Grinding Spindle | ||||
| 32 | 1607000D6A | 5.83 | 7.05 | |
| Shim 0,3 MM | ||||
| 35 | 2609002210 | 1.70 | 2.06 | |
| Shim 0,1 MM | ||||
| 35 | 2609002208 | 0.83 | 1.00 | |
| Shim 0,2 MM | ||||
| 35 | 2609002209 | 0.83 | 1.00 | |
| Shim 1,5 MM | ||||
| 35 | 1600A00RE3 | 0.83 | 1.00 | |
| Vibration Damper | ||||
| 36 | 2609007464 | 1.18 | 1.43 | |
| Crown Gear | ||||
| 38 | 2609006724 | 10.10 | 12.22 | |
| Bevel Gear | ||||
| 39 | 2609006725 | 5.33 | 6.45 | |
| Retaining clip | ||||
| 40 | 1600119011 | 1.70 | 2.06 | |
| Hex Nut M7, SW10 | ||||
| 45 | 1603300016 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 3x10 | ||||
| 48 | 2603490017 | 1.70 | 2.06 | |
| Thread-forming tap. Screw M4x16 | ||||
| 49 | 2914491410 | 0.83 | 1.00 | |
| Connecting Cable | ||||
| 52 | 2609006788 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x20 SILVER | ||||
| 55 | 2609001403 | 0.83 | 1.00 | |
| Covering hood | ||||
| 56 | 2609006795 | 1.18 | 1.43 | |
| Sealing disk | ||||
| 80 | 2609006726 | 0.83 | 1.00 | |
| Protective Cover Ø125 MM | ||||
| 200 | 2609002204 | 12.41 | 15.02 | |
| Handle BLACK | ||||
| 680 | 2609002198 | 7.58 | 9.17 | |
| Round Nut M14 | ||||
| 681 | 1603345043 | 6.54 | 7.91 | |
| Clamping Flange Ø22,3xØ42 MM | ||||
| 682 | 2605703014 | 4.10 | 4.96 | |
| Pin-Type Face-Wrench | ||||
| 683 | 1619P08927 | 3.31 | 4.01 | |
| Power supply cord CN 2,65m 2 x 0,75mm H05 W-F | ||||
| 805 | 1607000387 | 8.45 | 10.22 | |
| Nameplate | ||||
| 808 | 2609006829 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 1607014176 | 10.73 | 12.98 | |
| Gear Housing | ||||
| 821 | 2609007332 | 23.75 | 28.74 | |
| Bearing Flange | ||||
| 828 | 2609007333 | 23.75 | 28.74 | |
