Here you will find all available parts and drawings of the 'Bosch 3603CA2800 ( PWS1000-125CE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

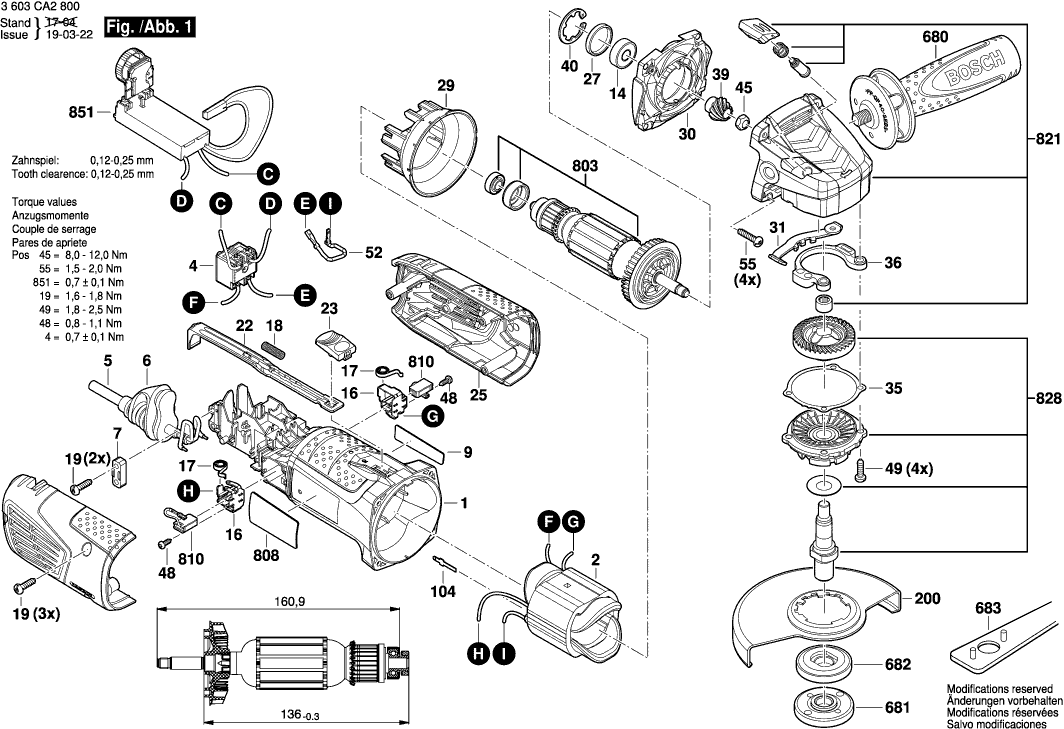

Technical drawing of model Bosch 3603CA2800 ( PWS1000-125CE )
Spare parts list of model Bosch 3603CA2800 ( PWS1000-125CE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2609006368 | 10.73 | 12.98 | |
| Field | ||||
| 2 | 1607000F0P | 26.84 | 32.48 | |
| Field | ||||
| 2 | 1604220459 | 13.11 | 15.86 | |
| Switch | ||||
| 4 | 1607200146 | 7.58 | 9.17 | |
| Power supply cord EU 2,65m 2x0,75 H05 VV-F | ||||
| 5 | 2609002907 | 8.45 | 10.22 | |
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2609006376 | 0.83 | 1.00 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate PWS 1000-125 CE | ||||
| 9 | 2609006827 | 1.94 | 2.35 | |
| Manufacturer's nameplate PWS Expert | ||||
| 9 | 161111C04K | 1.70 | 2.06 | |
| groove ball bearing | ||||
| 14 | 2600905078 | 5.33 | 6.45 | |
| Brush Holder WITH DISCONNECTING DEVICE | ||||
| 16 | 1601323023 | 2.71 | 3.28 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 18 | 1604611026 | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Control Lever | ||||
| 22 | 2609006373 | 1.18 | 1.43 | |
| Switch Button | ||||
| 23 | 1600A007UL | 0.83 | 1.00 | |
| Housing | ||||
| 25 | 2609006370 | 8.45 | 10.22 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 1.70 | 2.06 | |
| Air-Deflector Ring | ||||
| 29 | 2609006367 | 1.18 | 1.43 | |
| Baffle | ||||
| 30 | 2609006366 | 1.70 | 2.06 | |
| Leaf Spring | ||||
| 31 | 2609002205 | 4.10 | 4.96 | |
| Grinding Spindle | ||||
| 32 | 1607000D6A | 5.83 | 7.05 | |
| Shim 0,3 MM | ||||
| 35 | 2609002210 | 1.70 | 2.06 | |
| Shim 0,1 MM | ||||
| 35 | 2609002208 | 0.83 | 1.00 | |
| Shim 0,2 MM | ||||
| 35 | 2609002209 | 0.83 | 1.00 | |
| Shim 1,5 MM | ||||
| 35 | 1600A00RE3 | 0.83 | 1.00 | |
| Vibration Damper | ||||
| 36 | 2609007464 | 1.18 | 1.43 | |
| Crown Gear | ||||
| 38 | 2609006724 | 10.10 | 12.22 | |
| Bevel Gear | ||||
| 39 | 2609006725 | 5.33 | 6.45 | |
| Retaining clip | ||||
| 40 | 1600119011 | 1.70 | 2.06 | |
| Hex Nut M7, SW10 | ||||
| 45 | 1603300016 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 3x10 | ||||
| 48 | 2603490017 | 1.70 | 2.06 | |
| Thread-forming tap. Screw M4x16 | ||||
| 49 | 2914491410 | 0.83 | 1.00 | |
| Connecting Cable | ||||
| 52 | 2609006786 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x20 SILVER | ||||
| 55 | 2609001403 | 0.83 | 1.00 | |
| Sealing disk | ||||
| 80 | 2609006726 | 0.83 | 1.00 | |
| Contact Spring | ||||
| 104 | 2609003611 | 0.83 | 1.00 | |
| Protective Cover Ø125 MM | ||||
| 200 | 2609002204 | 12.41 | 15.02 | |
| Handle BLACK | ||||
| 680 | 2609002198 | 7.58 | 9.17 | |
| Round Nut M14 | ||||
| 681 | 1603345043 | 6.54 | 7.91 | |
| Clamping Flange Ø22,3xØ42 MM | ||||
| 682 | 2605703014 | 4.10 | 4.96 | |
| Pin-Type Face-Wrench | ||||
| 683 | 1619P08927 | 3.31 | 4.01 | |
| Armature assembly 230V | ||||
| 803 | 2609007330 | 55.25 | 66.85 | |
| Nameplate | ||||
| 808 | 160111A299 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 1607014176 | 10.73 | 12.98 | |
| Gear Housing | ||||
| 821 | 2609007332 | 23.75 | 28.74 | |
| Bearing Flange | ||||
| 828 | 2609007333 | 23.75 | 28.74 | |
| No longer available, no replacement | ||||
| 851 | 1600A00A4P | |||
