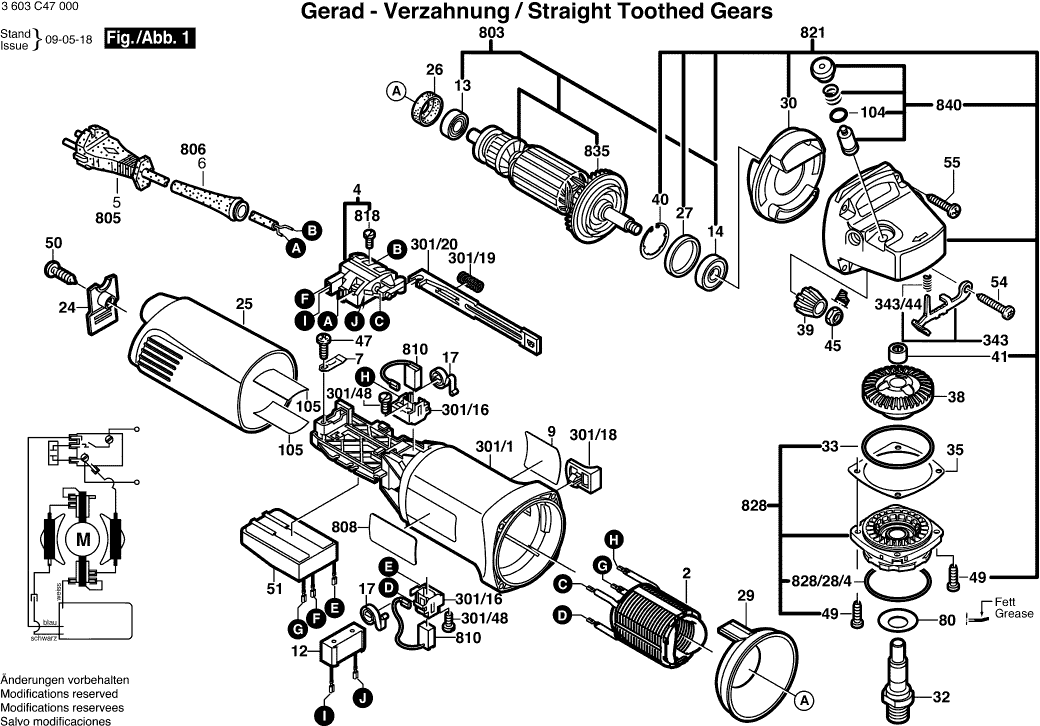

Technical drawing of model Bosch 3603C47000 (PWS10-125CE)
Spare parts list of model Bosch 3603C47000 (PWS10-125CE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1607000F0P | 31.42 | 38.02 | |
| On-Off Switch | ||||
| 4 | 1607200086 | 10.90 | 13.19 | |
| Grommet | ||||
| 6 | 1600703030 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 1601118490 | 1.00 | 1.21 | |
| Suppression Filter | ||||
| 12 | 1607328042 | 6.73 | 8.14 | |
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1600905032 | 5.81 | 7.03 | |
| Spiral Spring | ||||
| 17 | 1604652013 | 1.49 | 1.80 | |
| Cover | ||||
| 24 | 1605500238 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 25 | 1605500239 | |||
| Rubber Ring | ||||
| 26 | 1600206036 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1600591025 | 2.40 | 2.90 | |
| Air-Deflector Ring | ||||
| 30 | 1600591014 | 2.40 | 2.90 | |
| Grinding Spindle | ||||
| 32 | 1607000D6A | 7.46 | 9.03 | |
| O-Ring | ||||
| 33 | 1600210035 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 1600136020 | 3.44 | 4.16 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 38 | 1606333616 | |||
| Bevel Gear | ||||
| 39 | 1606333617 | 7.46 | 9.03 | |
| Retaining clip | ||||
| 40 | 1600119011 | 2.08 | 2.52 | |
| Plain bearing | ||||
| 41 | 1600200029 | 3.71 | 4.49 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 47 | 2912401018 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 1603435026 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 50 | 2912401420 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 51 | 1607233113 | |||
| Torx Oval-Head Screw | ||||
| 54 | 2603490025 | 1.00 | 1.21 | |
| Oval-Head Screw | ||||
| 55 | 1603415005 | 0.83 | 1.00 | |
| Cover Disc | ||||
| 80 | 1619P09390 | 2.08 | 2.52 | |
| O-Ring | ||||
| 104 | 1600210044 | 1.00 | 1.21 | |
| Insulating Plate | ||||
| 105 | 1601008005 | 4.94 | 5.98 | |
| Motor Housing | ||||
| 301/1 | 1605108214 | 8.35 | 10.10 | |
| Brush Holder | ||||
| 301/16 | 1601323025 | 3.44 | 4.16 | |
| Switch Handle | ||||
| 301/18 | 1602026088 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 301/19 | 1619P09932 | 1.28 | 1.55 | |
| Adjusting Slide | ||||
| 301/20 | 1602319010 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 301/48 | 2912401005 | 1.00 | 1.21 | |
| Catch Lever | ||||
| 343 | 1607000742 | 7.46 | 9.03 | |
| Compression Spring | ||||
| 343/44 | 1604611042 | 1.49 | 1.80 | |
| Protective Cover | ||||
| 651 | 1600A025XR | 11.71 | 14.17 | |
| Protective Cover | ||||
| 651 | 1600A00XK9 | 10.90 | 13.19 | |
| Armature With Fan | ||||
| 803 | 1604010640 | 64.67 | 78.25 | |
| No longer available, no replacement | ||||
| 805 | 1607000389 | |||
| Grommet | ||||
| 806 | 1600703031 | 2.86 | 3.46 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607014176 | 12.82 | 15.51 | |
| Pan head screw | ||||
| 818 | 2910110048 | 1.00 | 1.21 | |
| Gear Housing | ||||
| 821 | 1605806465 | 43.12 | 52.18 | |
| Bearing Flange | ||||
| 828 | 1607000D6C | 11.37 | 13.76 | |
| O-Ring | ||||
| 828/28/4 | 3600210109 | 2.08 | 2.52 | |
| Fan | ||||
| 835 | 1606610129 | 2.08 | 2.52 | |
| Push-Button | ||||
| 840 | 1607000253 | 2.08 | 2.52 | |
| O-Ring | ||||
| 890 | 1600210039 | 2.08 | 2.52 | |
| Auxiliary Handle | ||||
| 891 | 16020250A0 | 10.90 | 13.19 | |
| Handle | ||||
| 891 | 160202500A0 | 10.74 | 13.00 | |
| Protective Cover | ||||
| 891/1 | 1600A025XP | 9.67 | 11.70 | |
| Round Nut | ||||
| 892 | 1603345043 | 8.35 | 10.10 | |
| Pin-Type Face-Wrench | ||||
| 893 | 1607950052 | 3.44 | 4.16 | |
| Clamping Flange | ||||
| 895 | 2605703014 | 7.53 | 9.11 | |
| SNELSPANMOER | ||||
| 896 | 1603340027 | 45.52 | 55.08 | |
| Fast Locking Flange | ||||
| 896 | 1600A016PP | 41.30 | 49.97 | |
