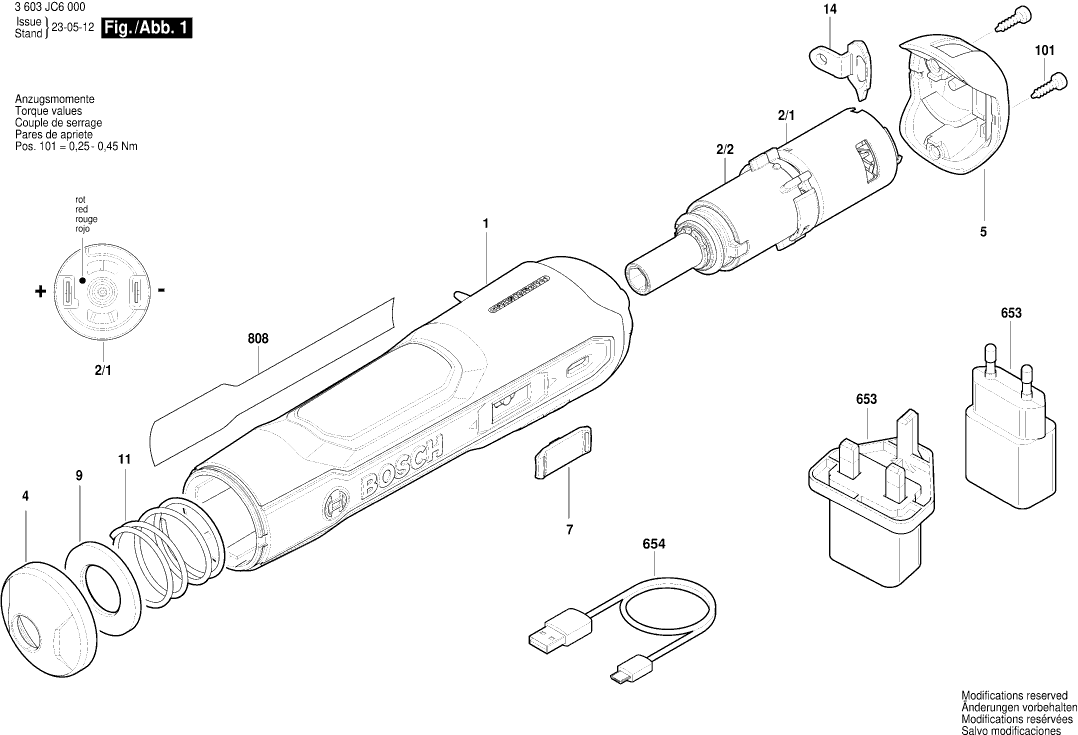

Technical drawing of model Bosch 3603JC6000 (PUSHDRIVE)
Spare parts list of model Bosch 3603JC6000 (PUSHDRIVE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1600A016U1 | 5.27 | 6.38 | |
| DC motor | ||||
| 2/1 | 160702266W | 13.90 | 16.82 | |
| No longer available, no replacement | ||||
| 2/2 | 1600A011H9 | |||
| Front Cap | ||||
| 4 | 1600A011H8 | 1.32 | 1.60 | |
| Cell Cover | ||||
| 5 | 1600A011H7 | 1.32 | 1.60 | |
| Change-Over Switch | ||||
| 7 | 1600A011HD | 1.00 | 1.21 | |
| Washer | ||||
| 9 | 1600A011HB | 1.32 | 1.60 | |
| Compression Spring | ||||
| 11 | 1604612028 | 1.32 | 1.60 | |
| Cover | ||||
| 14 | 16055002DV | 1.00 | 1.21 | |
| Screw | ||||
| 101 | 2609111496 | 1.00 | 1.21 | |
| Charger EU 100-240V 5V 1A | ||||
| 653 | 2609120713 | 7.32 | 8.86 | |
| Charger GB 100-240V 5V 1A | ||||
| 653 | 2609120718 | 7.32 | 8.86 | |
| No longer available, no replacement | ||||
| 654 | 1607000DN8 | |||
| Nameplate | ||||
| 808 | 160111A5XZ | 2.18 | 2.64 | |
