Here you will find all available parts and drawings of the 'Bosch 3603L03200 (PTS10)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

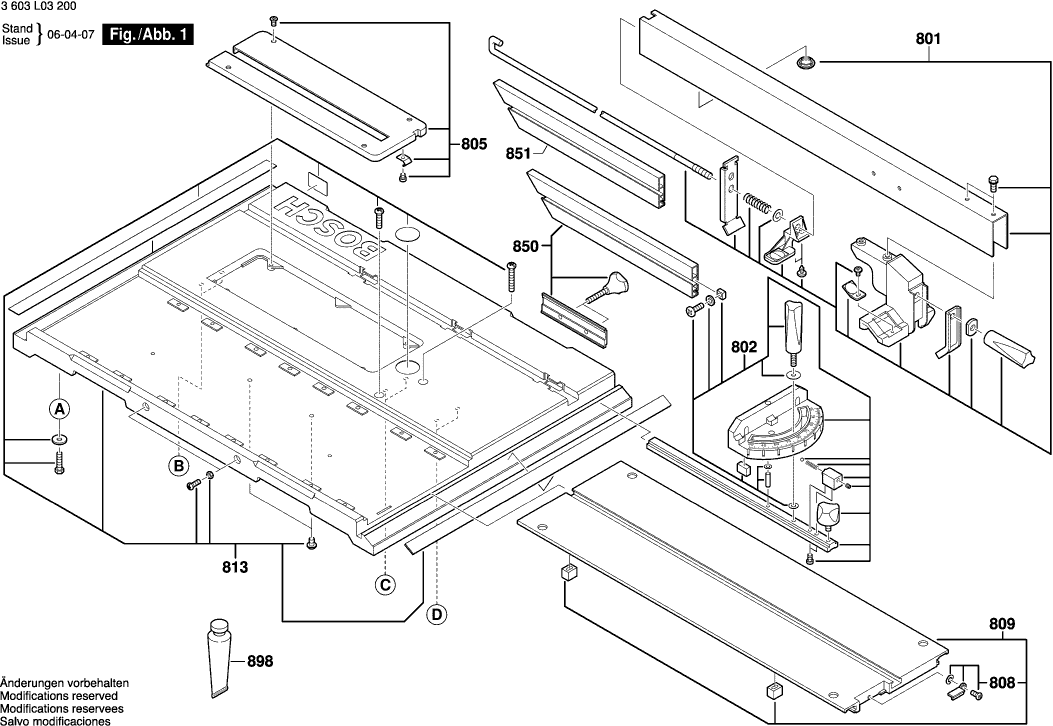

Technical drawing of model Bosch 3603L03200 (PTS10)
Spare parts list of model Bosch 3603L03200 (PTS10)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Base | ||||
| 650 | 1609203P64 | 110.30 | 133.46 | |
| No longer available, no replacement | ||||
| 650/865 | 1609203P87 | |||
| Fastening parts kit | ||||
| 650/866 | 1609203P88 | 13.13 | 15.89 | |
| Profile Strut | ||||
| 650/867 | 1609203P89 | 31.42 | 38.02 | |
| Profile Strut | ||||
| 650/868 | 1609203P90 | 16.79 | 20.32 | |
| Profile Strut | ||||
| 650/869 | 1609203P91 | 23.90 | 28.92 | |
| Profile Strut | ||||
| 650/870 | 1609203P92 | 9.67 | 11.70 | |
| Profile Strut | ||||
| 650/871 | 1609203P93 | 18.94 | 22.92 | |
| No longer available, no replacement | ||||
| 652 | 1609203P85 | |||
| No longer available, no replacement | ||||
| 801 | 1609203P29 | |||
| No longer available, no replacement | ||||
| 802 | 1609203S51 | |||
| No longer available, no replacement | ||||
| 803 | 1609203S52 | |||
| No longer available, no replacement | ||||
| 804 | 1609203P32 | |||
| No longer available, no replacement | ||||
| 805 | 1609203P33 | |||
| No longer available, no replacement | ||||
| 806 | 1609203P34 | |||
| No longer available, no replacement | ||||
| 807 | 1609203P35 | |||
| No longer available, no replacement | ||||
| 808 | 1609203P36 | |||
| Ball Rail Table | ||||
| 809 | 1609203P37 | 88.83 | 107.48 | |
| No longer available, no replacement | ||||
| 811 | 1609203P39 | |||
| Support | ||||
| 812 | 1609203P40 | 136.48 | 165.14 | |
| Table | ||||
| 813 | 1609203P41 | 155.51 | 188.17 | |
| Rubber Base | ||||
| 814 | 1609203P42 | 1.49 | 1.80 | |
| Cable Cleat | ||||
| 815 | 1609203P43 | 1.49 | 1.80 | |
| Mounting Clamp | ||||
| 816 | 1609203P44 | 4.18 | 5.06 | |
| Fastening Part | ||||
| 817 | 1609203P45 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 818 | 1609203P46 | |||
| Power supply cord | ||||
| 819 | 1609203P47 | 10.90 | 13.19 | |
| No longer available, no replacement | ||||
| 820 | 1609203P50 | |||
| No longer available, no replacement | ||||
| 822 | 1609203P52 | |||
| Housing | ||||
| 823 | 1609203P53 | 122.80 | 148.59 | |
| No longer available, no replacement | ||||
| 824 | 1609203P54 | |||
| No longer available, no replacement | ||||
| 825 | 1609203P55 | |||
| Pointer | ||||
| 826 | 1609203P56 | 2.86 | 3.46 | |
| Cover Plate | ||||
| 827 | 1609203S54 | 27.81 | 33.65 | |
| Swivel Bearing | ||||
| 828 | 1609203P58 | 39.14 | 47.36 | |
| Carrier | ||||
| 829 | 1609203P59 | 18.94 | 22.92 | |
| Fastening parts kit | ||||
| 830 | 1609203P60 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 832 | 1609203P62 | |||
| No longer available, no replacement | ||||
| 833 | 1609203P63 | |||
| Swivelling Axis | ||||
| 834 | 1609203P79 | 10.90 | 13.19 | |
| No longer available, no replacement | ||||
| 835 | 1609203P80 | |||
| Suction Pipe | ||||
| 836 | 1609203P81 | 5.81 | 7.03 | |
| Switch Housing | ||||
| 837 | 1609203P83 | 3.44 | 4.16 | |
| Nameplate | ||||
| 838 | 1601118M27 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 839 | 1609203P99 | |||
| No longer available, no replacement | ||||
| 840 | 1600A000C1 | |||
| No longer available, no replacement | ||||
| 840/841 | 1609203P69 | |||
| Bearing | ||||
| 840/842 | 1609203P71 | 10.90 | 13.19 | |
| No longer available, no replacement | ||||
| 840/843 | 1600A000C3 | |||
| Motor Housing | ||||
| 840/844 | 1609203P73 | 31.42 | 38.02 | |
| No longer available, no replacement | ||||
| 840/845 | 1609203P74 | |||
| No longer available, no replacement | ||||
| 840/846 | 1609203P75 | |||
| No longer available, no replacement | ||||
| 840/847 | 1609203P76 | |||
| No longer available, no replacement | ||||
| 850 | 1609203P38 | |||
| No longer available, no replacement | ||||
| 851 | 1609203S53 | |||
| No longer available, no replacement | ||||
| 890 | 1609203P84 | |||
| Grease Tube | ||||
| 898 | 1615430005 | 7.46 | 9.03 | |
