Here you will find all available parts and drawings of the 'Bosch 0603315003 ( PTL1 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

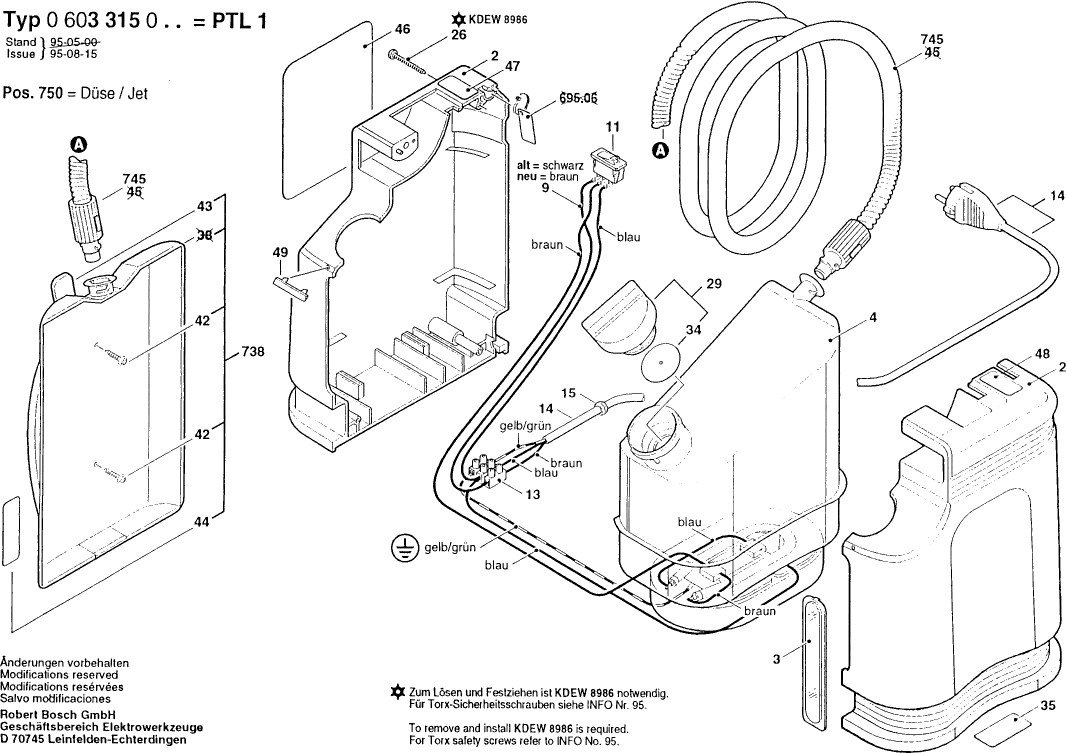

Technical drawing of model Bosch 0603315003 ( PTL1 )
Spare parts list of model Bosch 0603315003 ( PTL1 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 2 | 1609203335 | 20.42 | 24.71 | |
| Sight Glass | ||||
| 3 | 1609203336 | 1.70 | 2.06 | |
| Plastic Container | ||||
| 4 | 1609203337 | 0.83 | 1.00 | |
| Connecting Cable BLACK | ||||
| 9 | 1609203924 | 2.71 | 3.28 | |
| Tip Switch | ||||
| 11 | 1609203340 | 8.45 | 10.22 | |
| Socket-Terminal Strip 3x6 MM | ||||
| 13 | 1901091013 | 3.31 | 4.01 | |
| Power supply cord | ||||
| 14 | 1609203341 | 12.41 | 15.02 | |
| Grommet | ||||
| 15 | 1609203342 | 1.18 | 1.43 | |
| Torx Oval-Head Screw Ø 4x40 MM | ||||
| 26 | 1609203351 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 29 | 1609203343 | |||
| Seal | ||||
| 34 | 1609203339 | 0.83 | 1.00 | |
| Nameplate | ||||
| 35 | 1601118444 | 1.94 | 2.35 | |
| Oval-Head Screw Ø 4x16 MM | ||||
| 42 | 1609203352 | 1.18 | 1.43 | |
| Handle | ||||
| 43 | 1609203470 | 2.71 | 3.28 | |
| Reference Plate | ||||
| 44 | 1601118513 | 2.24 | 2.71 | |
| Reference Plate | ||||
| 46 | 1601118514 | 3.31 | 4.01 | |
| Reference Plate | ||||
| 47 | 1601118516 | 1.94 | 2.35 | |
| Reference Plate | ||||
| 48 | 1601118515 | 1.94 | 2.35 | |
| Pickup Clip | ||||
| 49 | 1609203477 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 738 | 2609390282 | |||
| No longer available, no replacement | ||||
| 745 | 2609390283 | |||
| No information available, not orderable | ||||
| 750 | 2609390284 | |||
