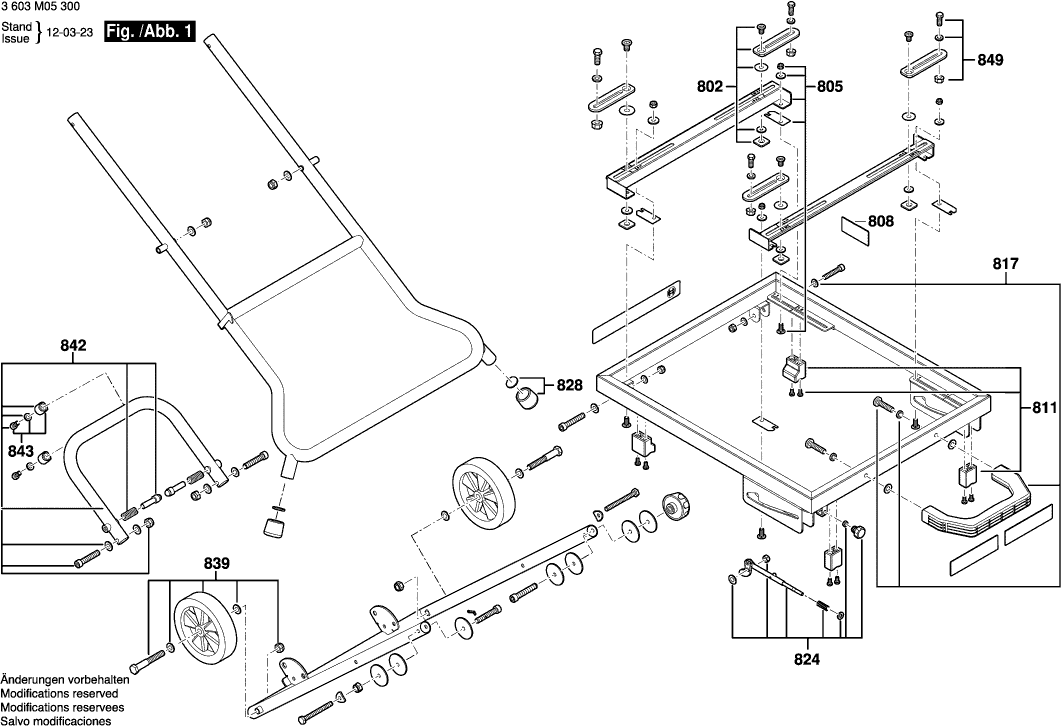

Technical drawing of model Bosch 3603M05300 (PTA2000)
Spare parts list of model Bosch 3603M05300 (PTA2000)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Mounting Rail | ||||
| 802 | 1619PA3717 | 12.82 | 15.51 | |
| Strut | ||||
| 805 | 1619PA3718 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 1619PA3675 | 2.40 | 2.90 | |
| Bumper | ||||
| 811 | 1619PA3719 | 6.73 | 8.14 | |
| Carrying Handle | ||||
| 817 | 1619PA3720 | 11.37 | 13.76 | |
| Locking Lever | ||||
| 824 | 1619PA3721 | 5.81 | 7.03 | |
| Cover | ||||
| 828 | 1619PA3722 | 2.86 | 3.46 | |
| Wheel | ||||
| 839 | 1619PA3723 | 27.81 | 33.65 | |
| Bow | ||||
| 842 | 1619PA3724 | 18.94 | 22.92 | |
| Rubber Pad | ||||
| 843 | 1619PA3725 | 1.49 | 1.80 | |
| Fastening parts kit | ||||
| 849 | 1619PA3781 | 9.67 | 11.70 | |
