Here you will find all available parts and drawings of the 'Bosch 0603383703 ( PST850PE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

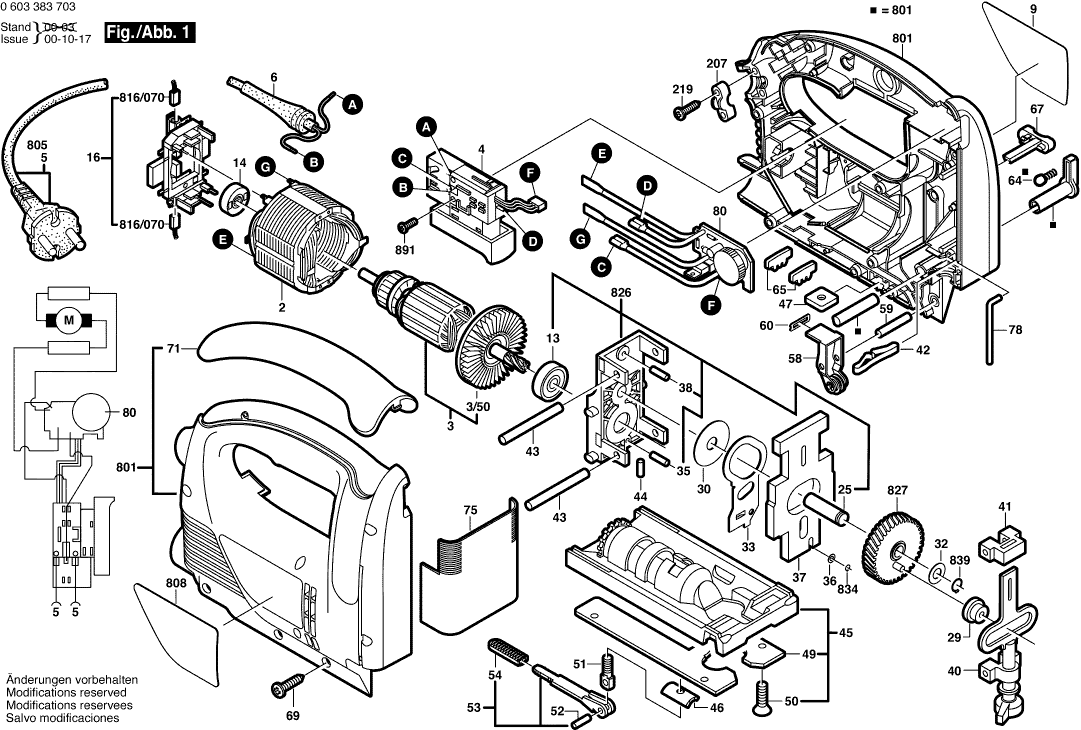

Technical drawing of model Bosch 0603383703 ( PST850PE )

Spare parts list of model Bosch 0603383703 ( PST850PE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
2 2604220655
Armature 220-240V
3 2604011234 44.82 54.23
Fan
3/50 2606610029 1.94 2.35
Switch RED
4 2607200524 18.19 22.01
Grommet Ø6,4-Ø7,2x76 MM
6 2600703017 1.94 2.35
Manufacturer's nameplate
9 2601117239 2.71 3.28
Manufacturer's nameplate
9 2601116702 0.83 1.00
groove ball bearing 9x24x7
13 2600905021 6.54 7.91
Flanged Bearing
14 2605805008 4.10 4.96
Brush Plate
16 1600A012AZ 8.45 10.22
Bearing bolt
25 2603105080 1.94 2.35
Needle bearing
29 2600914022 5.33 6.45
Shim 0,5 MM
30 2600101048 1.18 1.43
Shim 0,5 MM
32 2600101077 1.18 1.43
Fork Lever
33 2601923012 3.31 4.01
Bearing bolt
35 2603105091 1.94 2.35
Shim 0,5 MM
36 2600100588 1.18 1.43
Counterweight
37 2601098060 8.45 10.22
Needle Roller 4x15,8 MM
38 1903201054 0.83 1.00
No longer available, no replacement
40 2600780147
Plain bearing
41 2605801038 4.10 4.96
Compression Spring
42 2604613004 1.18 1.43
Compression Spring
42 160461201E 1.10 1.33
Needle Roller
43 2603201089 4.70 5.69
Bearing bolt
44 2603105084 1.70 2.06
No longer available, no replacement
45 2601098081
No longer available, no replacement
46 2602317037
fixing plate
47 2600040003 1.70 2.06
Base Plate
49 2601098050 5.83 7.05
Thread-forming tap. Screw
50 2603421014 1.18 1.43
Threaded Fitting
51 2603349011 4.70 5.69
Straight Pin 4M 6x10 N31A
52 2917850094 0.83 1.00
Tensioning Lever
53 2602098016 6.54 7.91
Cap-Handle
54 2600591013 1.70 2.06
No longer available, no replacement
58 2601321051
Straight Pin
59 2609002725 0.83 1.00
Sealing Plate
60 2601015077 1.18 1.43
Ratchet Cap
64 2600590006 1.18 1.43
No longer available, no replacement
65 2601038111
Switch Slide
67 2602026096 1.70 2.06
Screw 4x16
69 2603490022 0.83 1.00
Handle Cover
71 2608040148 5.33 6.45
No longer available, no replacement
75 2605510169
Locking pin
78 2603105088 0.83 1.00
Speed governor 230V
80 2607233051 33.45 40.47
Cable Clip
207 2601035001 1.18 1.43
Screw 4x16
219 2603490022 0.83 1.00
Housing Section
801 2605104788 23.75 28.74
Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-
805 1607000386 15.71 19.01
Reference Plate
808 2601117208 2.71 3.28
Carbon-Brush Set
816/070 2604321925 6.54 7.91
Bearing Bracket
826 2605807936 18.19 22.01
Eccentric Cog Wheel
827 2606320904 18.19 22.01
Spring retaining ring DIN 471-4x0,4-FSt
834 2916640001 0.83 1.00
Spring retaining ring DIN 471-8x0,8 FSt
839 2916640005 0.83 1.00
Cross Recessed-Head Screw M3x5
891 2603410046 1.70 2.06
Lock
895 2601320027 2.11 2.55
