Here you will find all available parts and drawings of the 'Bosch 0603380771 (PST6500E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

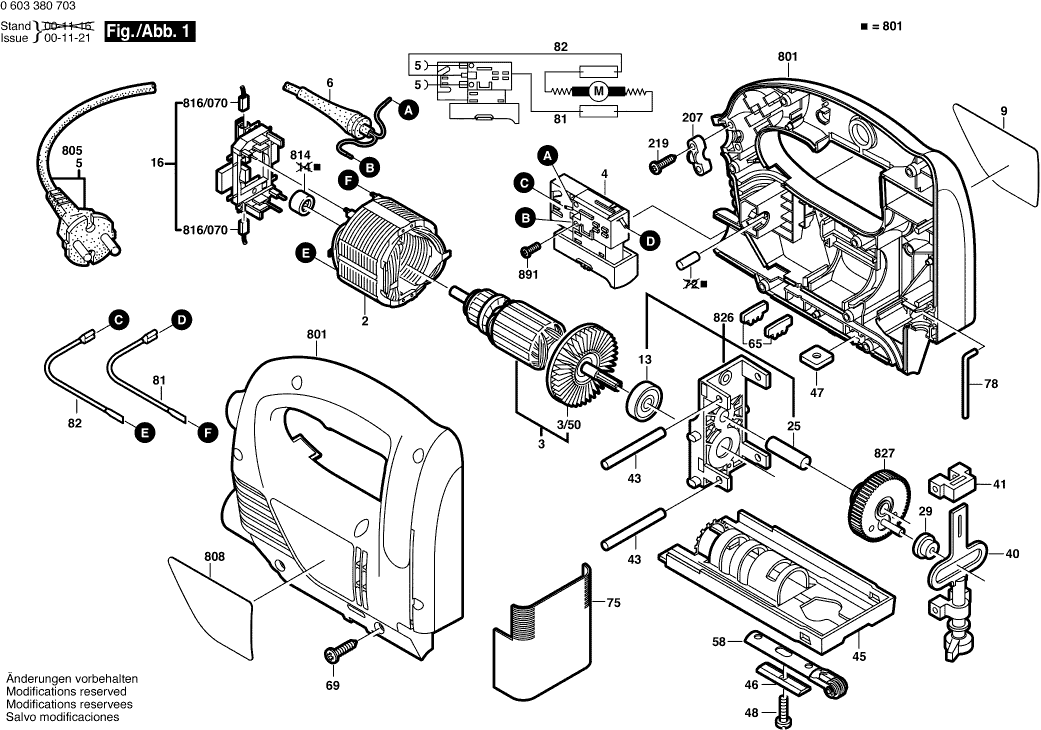

Technical drawing of model Bosch 0603380771 (PST6500E)
Spare parts list of model Bosch 0603380771 (PST6500E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2604220652 | 16.79 | 20.32 | |
| Armature | ||||
| 3 | 2604011231 | 34.82 | 42.13 | |
| Fan | ||||
| 3/50 | 2606610097 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 4 | 2607200581 | |||
| Power supply cord | ||||
| 5 | 1607000387 | 10.90 | 13.19 | |
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | 2601116187 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 13 | 2600905021 | 8.35 | 10.10 | |
| Brush Plate | ||||
| 16 | 1600A012AZ | 10.90 | 13.19 | |
| Bearing bolt | ||||
| 25 | 2603105083 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 29 | 2605801044 | |||
| No longer available, no replacement | ||||
| 40 | 2600780145 | |||
| Plain bearing | ||||
| 41 | 2605801038 | 4.94 | 5.98 | |
| Needle Roller | ||||
| 43 | 2603201089 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 45 | 2601016080 | |||
| Profile Beading | ||||
| 46 | 2601032021 | 2.40 | 2.90 | |
| fixing plate | ||||
| 47 | 2600040003 | 2.08 | 2.52 | |
| Socket head cap screw | ||||
| 48 | 2603413034 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 58 | 2601321063 | |||
| No longer available, no replacement | ||||
| 65 | 2601038111 | |||
| Screw | ||||
| 69 | 2603490022 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 75 | 2605510169 | |||
| Locking pin | ||||
| 78 | 2603105088 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 81 | 2604448033 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 82 | 2604448232 | 2.08 | 2.52 | |
| Cable Clip | ||||
| 207 | 2601035001 | 1.49 | 1.80 | |
| Housing Section | ||||
| 801 | 2605105900 | 43.12 | 52.18 | |
| Nameplate | ||||
| 808 | 2601117253 | 2.71 | 3.28 | |
| Flanged Bearing | ||||
| 814 | 2605805008 | 4.94 | 5.98 | |
| Carbon-Brush Set | ||||
| 816/070 | 2604321925 | 8.35 | 10.10 | |
| Bearing Bracket | ||||
| 826 | 2605807935 | 21.30 | 25.77 | |
| No longer available, no replacement | ||||
| 827 | 2606320903 | |||
| Cross Recessed-Head Screw | ||||
| 891 | 2603410046 | 2.08 | 2.52 | |
