Here you will find all available parts and drawings of the 'Bosch 3603C92000 ( PST650 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

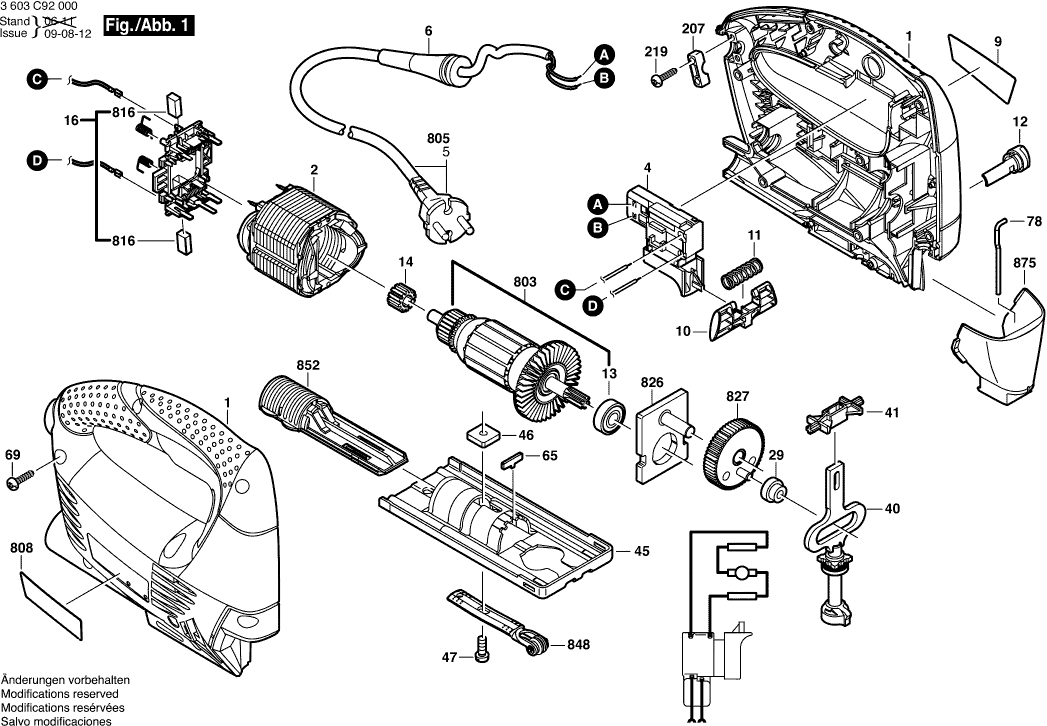

Technical drawing of model Bosch 3603C92000 ( PST650 )
Spare parts list of model Bosch 3603C92000 ( PST650 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section GREEN | ||||
| 1 | 2605105055 | 36.85 | 44.59 | |
| No longer available, no replacement | ||||
| 2 | 2604220601 | |||
| No longer available, no replacement | ||||
| 4 | 2607200608 | |||
| Grommet | ||||
| 6 | 2609002019 | 1.94 | 2.35 | |
| Manufacturer's nameplate PST 650 | ||||
| 9 | 2601116679 | 2.71 | 3.28 | |
| Locking Lever | ||||
| 10 | 2609000290 | 1.94 | 2.35 | |
| Compression Spring | ||||
| 11 | 2609000421 | 1.18 | 1.43 | |
| Rotary-Knob Valve RED | ||||
| 12 | 2602026132 | 1.70 | 2.06 | |
| groove ball bearing 8x22x7 608-2Z/C3 | ||||
| 13 | 3130900020 | 5.33 | 6.45 | |
| Sintered-Metal Bushing | ||||
| 14 | 2600301068 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 16 | 2604337102 | |||
| No longer available, no replacement | ||||
| 29 | 2605801044 | |||
| No longer available, no replacement | ||||
| 40 | 2600780148 | |||
| Guide Bearing | ||||
| 41 | 2605801053 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 45 | 2601016088 | |||
| fixing plate | ||||
| 46 | 2600040003 | 1.70 | 2.06 | |
| Socket head cap screw | ||||
| 47 | 2603413034 | 1.18 | 1.43 | |
| Adjusting Pin | ||||
| 65 | 2601030166 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 69 | 2603490022 | 0.83 | 1.00 | |
| Locking pin | ||||
| 78 | 2603105088 | 0.83 | 1.00 | |
| Cable Clip | ||||
| 207 | 2601035001 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 219 | 2603490022 | 0.83 | 1.00 | |
| Armature 220-240V | ||||
| 803 | 2609000359 | 33.45 | 40.47 | |
| Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN- | ||||
| 805 | 1607000386 | 15.71 | 19.01 | |
| Nameplate | ||||
| 808 | 2609000454 | 2.71 | 3.28 | |
| Carbon-Brush Set | ||||
| 816 | 2610391290 | 6.54 | 7.91 | |
| Bearing Bracket | ||||
| 826 | 2609000346 | 5.83 | 7.05 | |
| Eccentric Cog Wheel | ||||
| 827 | 2609002094 | 12.41 | 15.02 | |
| No longer available, no replacement | ||||
| 848 | 2601321072 | |||
| Saw Blade Depot | ||||
| 852 | 2608040231 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 875 | 2605510219 | |||
