Here you will find all available parts and drawings of the 'Bosch 0603381708 ( PST650PE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

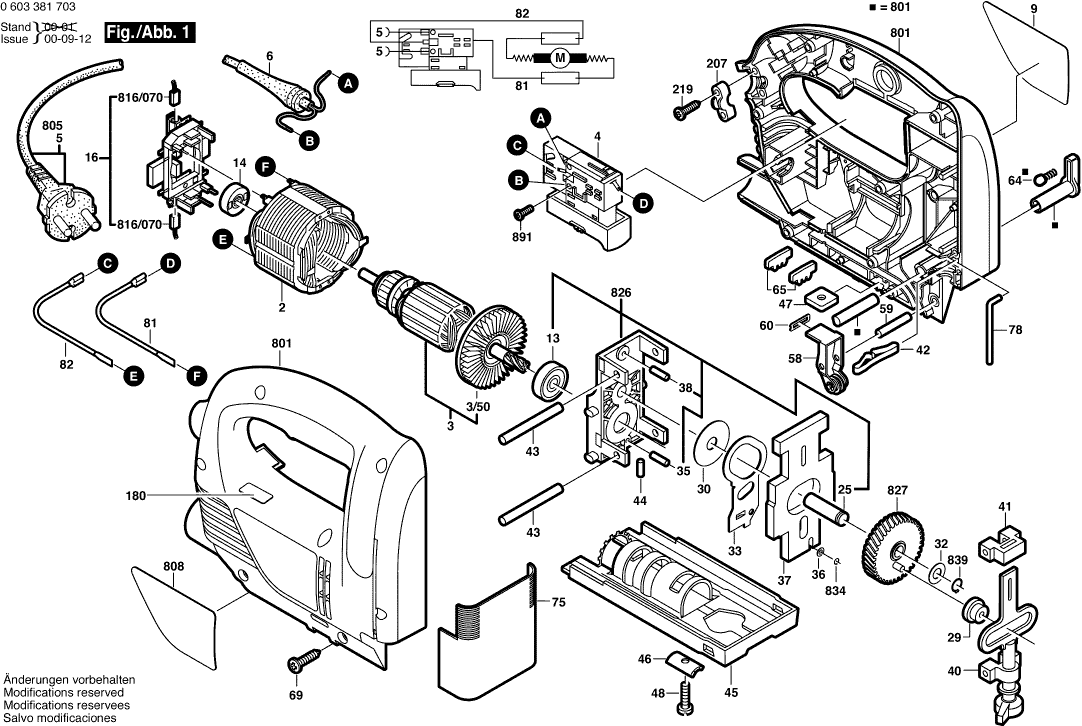

Technical drawing of model Bosch 0603381708 ( PST650PE )
Spare parts list of model Bosch 0603381708 ( PST650PE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 2 | 2604220601 | |||
| Armature 230-240V | ||||
| 3 | 2604011241 | 40.61 | 49.14 | |
| Fan | ||||
| 3/50 | 2606610097 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 4 | 2607200581 | |||
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2600703017 | 1.94 | 2.35 | |
| Manufacturer's nameplate PST 650 PE | ||||
| 9 | 2601117237 | 2.71 | 3.28 | |
| groove ball bearing 9x24x7 | ||||
| 13 | 2600905039 | 9.53 | 11.53 | |
| Flanged Bearing | ||||
| 14 | 2605805008 | 4.10 | 4.96 | |
| Brush Plate | ||||
| 16 | 1600A012AZ | 8.45 | 10.22 | |
| Bearing bolt | ||||
| 25 | 2603105080 | 1.94 | 2.35 | |
| Needle bearing | ||||
| 29 | 2600914022 | 5.33 | 6.45 | |
| Shim 0,5 MM | ||||
| 30 | 2600101048 | 1.18 | 1.43 | |
| Shim 0,5 MM | ||||
| 32 | 2600101077 | 1.18 | 1.43 | |
| Fork Lever | ||||
| 33 | 2601923012 | 3.31 | 4.01 | |
| Bearing bolt | ||||
| 35 | 2603105091 | 1.94 | 2.35 | |
| Shim 0,5 MM | ||||
| 36 | 2600100588 | 1.18 | 1.43 | |
| Counterweight | ||||
| 37 | 2601098060 | 8.45 | 10.22 | |
| Needle Roller 4x15,8 MM | ||||
| 38 | 1903201054 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 40 | 2600780147 | |||
| Plain bearing | ||||
| 41 | 2605801038 | 4.10 | 4.96 | |
| Compression Spring | ||||
| 42 | 2604613004 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 42 | 160461201E | 1.10 | 1.33 | |
| Needle Roller | ||||
| 43 | 2603201089 | 4.70 | 5.69 | |
| Bearing bolt | ||||
| 44 | 2603105084 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 45 | 2601016080 | |||
| No longer available, no replacement | ||||
| 46 | 2602317037 | |||
| fixing plate | ||||
| 47 | 2600040003 | 1.70 | 2.06 | |
| Socket head cap screw | ||||
| 48 | 2603413034 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 58 | 2601321051 | |||
| Straight Pin | ||||
| 59 | 2609002725 | 0.83 | 1.00 | |
| Sealing Plate | ||||
| 60 | 2601015077 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 64 | 2600590006 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 65 | 2601038111 | |||
| Screw 4x16 | ||||
| 69 | 2603490022 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 75 | 2605510169 | |||
| Locking pin | ||||
| 78 | 2603105088 | 0.83 | 1.00 | |
| Connecting Cable L=243 MM WHITE | ||||
| 81 | 2604448033 | 1.18 | 1.43 | |
| Connecting Cable L=220 MM BLUE | ||||
| 82 | 2604448232 | 1.70 | 2.06 | |
| Screw 4x16 | ||||
| 219 | 2603490022 | 0.83 | 1.00 | |
| Housing Section GREEN | ||||
| 801 | 2605104790 | 15.71 | 19.01 | |
| Power supply cord CN 2,65m 2 x 0,75mm H05 W-F | ||||
| 805 | 1607000387 | 8.45 | 10.22 | |
| Reference Plate | ||||
| 808 | 2601117259 | 2.71 | 3.28 | |
| Carbon-Brush Set | ||||
| 816/070 | 2604321925 | 6.54 | 7.91 | |
| Bearing Bracket | ||||
| 826 | 2605807936 | 18.19 | 22.01 | |
| Eccentric Cog Wheel | ||||
| 827 | 2606320904 | 18.19 | 22.01 | |
| Spring retaining ring DIN 471-4x0,4-FSt | ||||
| 834 | 2916640001 | 0.83 | 1.00 | |
| Spring retaining ring DIN 471-8x0,8 FSt | ||||
| 839 | 2916640005 | 0.83 | 1.00 | |
| Cross Recessed-Head Screw M3x5 | ||||
| 891 | 2603410046 | 1.70 | 2.06 | |
