Here you will find all available parts and drawings of the 'Bosch 0603380608 ( PST650E )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

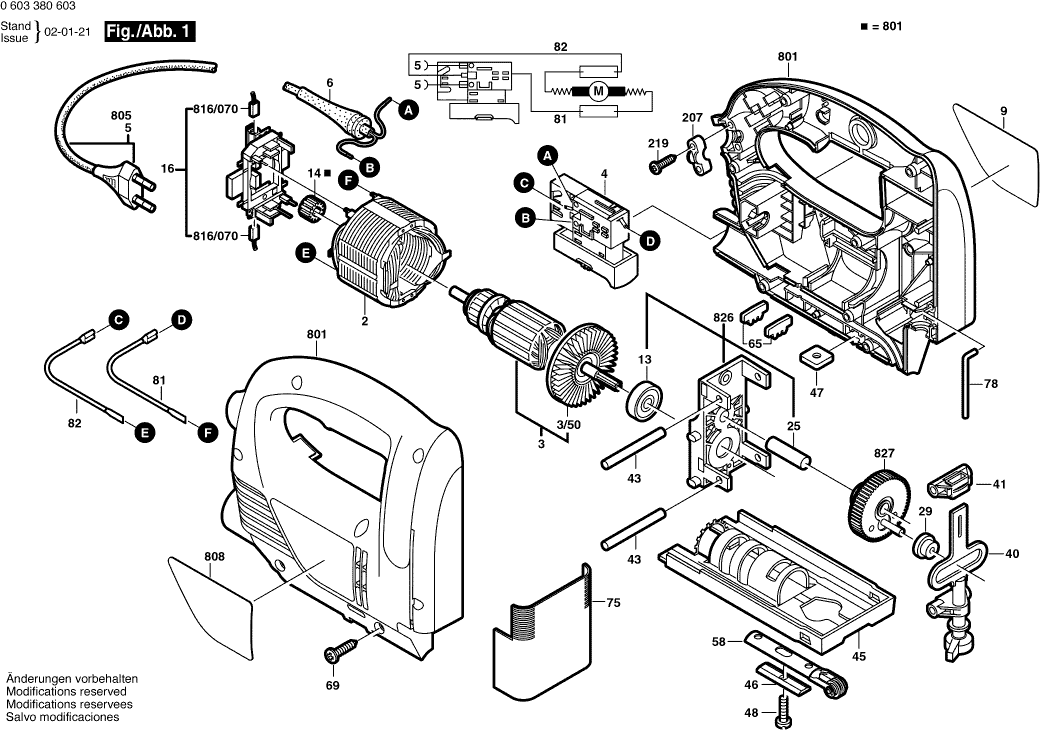

Technical drawing of model Bosch 0603380608 ( PST650E )
Spare parts list of model Bosch 0603380608 ( PST650E )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230-240V | ||||
| 2 | 2604220652 | 13.93 | 16.86 | |
| Armature 220-230V | ||||
| 3 | 2604011305 | 29.75 | 36.00 | |
| Fan | ||||
| 3/50 | 2606610097 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 4 | 2607200581 | |||
| Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV- | ||||
| 5 | 2604460259 | 10.73 | 12.98 | |
| Grommet Ø6,4-Ø7,2x76 MM | ||||
| 6 | 2600703017 | 1.94 | 2.35 | |
| Manufacturer's nameplate PST 650 E SUNNY SIDE | ||||
| 9 | 2601117236 | 2.71 | 3.28 | |
| groove ball bearing | ||||
| 13 | 2600905098 | 6.54 | 7.91 | |
| Bearing Flange | ||||
| 14 | 2605801055 | 5.83 | 7.05 | |
| Brush Plate | ||||
| 16 | 1600A012AZ | 8.45 | 10.22 | |
| Bearing bolt | ||||
| 25 | 2603105083 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 29 | 2605801044 | |||
| No longer available, no replacement | ||||
| 40 | 2600780146 | |||
| No longer available, no replacement | ||||
| 41 | 2605801037 | |||
| Needle Roller | ||||
| 43 | 2603201089 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 45 | 2601016080 | |||
| Profile Beading | ||||
| 46 | 2601032021 | 1.94 | 2.35 | |
| fixing plate | ||||
| 47 | 2600040003 | 1.70 | 2.06 | |
| Socket head cap screw | ||||
| 48 | 2603413034 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 58 | 2601321063 | |||
| No longer available, no replacement | ||||
| 65 | 2601038111 | |||
| Screw 4x16 | ||||
| 69 | 2603490022 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 75 | 2605510169 | |||
| Locking pin | ||||
| 78 | 2603105088 | 0.83 | 1.00 | |
| Connecting Cable L=243 MM WHITE | ||||
| 81 | 2604448033 | 1.18 | 1.43 | |
| Connecting Cable L=220 MM BLUE | ||||
| 82 | 2604448232 | 1.70 | 2.06 | |
| Cable Clip | ||||
| 207 | 2601035001 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 219 | 2603490022 | 0.83 | 1.00 | |
| Housing Section | ||||
| 801 | 2605105031 | 36.85 | 44.59 | |
| Marking Plate | ||||
| 808 | 2601117209 | 2.71 | 3.28 | |
| Carbon-Brush Set | ||||
| 816/070 | 2604321925 | 6.54 | 7.91 | |
| Bearing Bracket | ||||
| 826 | 2605807935 | 18.19 | 22.01 | |
| No longer available, no replacement | ||||
| 827 | 2606320903 | |||
| Cross Recessed-Head Screw M3x5 | ||||
| 891 | 2603410046 | 1.70 | 2.06 | |
