Here you will find all available parts and drawings of the 'Bosch 0603238703 (PST55-PE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

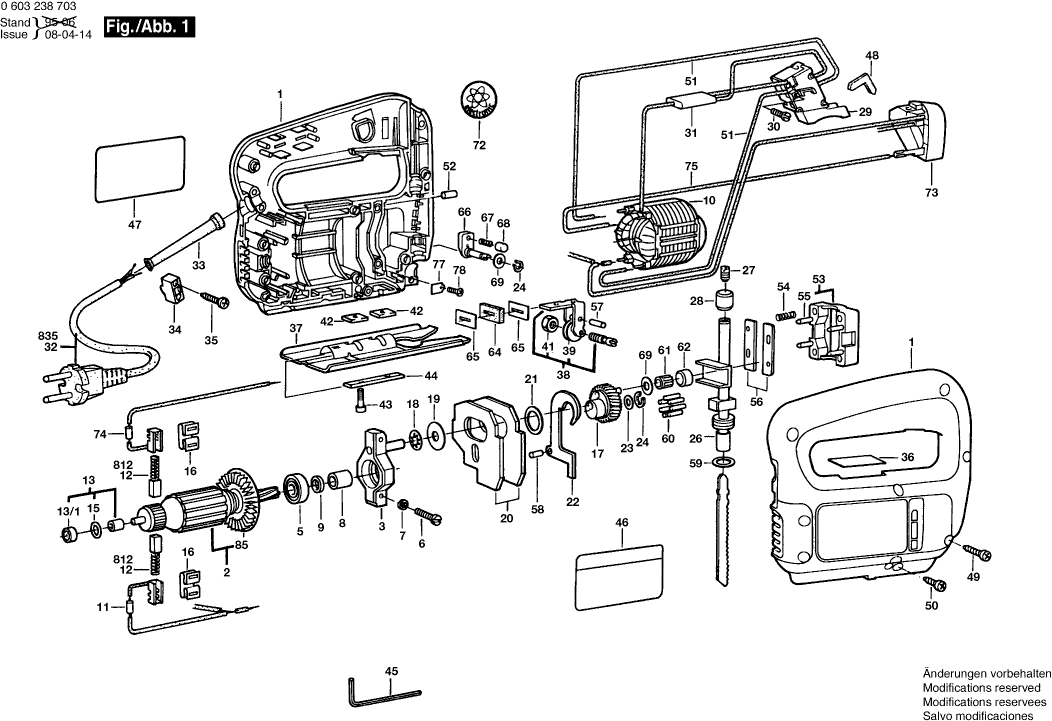

Technical drawing of model Bosch 0603238703 (PST55-PE)
Spare parts list of model Bosch 0603238703 (PST55-PE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104982 | 43.12 | 52.18 | |
| No longer available, no replacement | ||||
| 2 | 2604010558 | |||
| Bearing Bracket | ||||
| 3 | 2605807906 | 14.94 | 18.08 | |
| groove ball bearing | ||||
| 5 | 2600905021 | 8.35 | 10.10 | |
| Screw and washer assembly | ||||
| 6 | 2914500009 | 1.00 | 1.21 | |
| Guide Sleeve | ||||
| 8 | 2600400024 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 9 | 2600103013 | |||
| Field | ||||
| 10 | 2604220392 | 23.90 | 28.92 | |
| No longer available, no replacement | ||||
| 11 | 2604465077 | |||
| No longer available, no replacement | ||||
| 13 | 1600301900 | |||
| No longer available, no replacement | ||||
| 13/1 | 1600205023 | |||
| No longer available, no replacement | ||||
| 15 | 1610210014 | |||
| Holding Spring | ||||
| 16 | 1619P09928 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 17 | 2606319070 | |||
| Spring Washer | ||||
| 18 | 2600150050 | 1.49 | 1.80 | |
| Shim | ||||
| 19 | 2600102658 | 1.49 | 1.80 | |
| Shim | ||||
| 19 | 2600102656 | 1.00 | 1.21 | |
| Counterweight | ||||
| 20 | 2601098005 | 4.18 | 5.06 | |
| Shim | ||||
| 21 | 2600101083 | 1.49 | 1.80 | |
| Fork Lever | ||||
| 22 | 2601923003 | 2.40 | 2.90 | |
| Shim | ||||
| 23 | 2600101654 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 24 | 2916080008 | |||
| No longer available, no replacement | ||||
| 25 | 2601030006 | |||
| No longer available, no replacement | ||||
| 26 | 2600780038 | |||
| Clamp Screw | ||||
| 27 | 2603400000 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 28 | 2600302006 | |||
| Switch | ||||
| 29 | 2607200084 | 9.67 | 11.70 | |
| Switch | ||||
| 29 | 2607200260 | 9.67 | 11.70 | |
| Socket head cap screw | ||||
| 30 | 2603410001 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 31 | 2607329101 | |||
| Grommet | ||||
| 33 | 1600703016 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 34 | 2601035001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 35 | 2910611019 | 2.86 | 3.46 | |
| Nameplate | ||||
| 36 | 2601105051 | 1.49 | 1.80 | |
| Base Plate | ||||
| 37 | 2601016012 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 38 | 2601321900 | |||
| No longer available, no replacement | ||||
| 39 | 2601321901 | |||
| Hex Nut | ||||
| 41 | 2915051104 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 42 | 2603300009 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 43 | 2910021122 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 44 | 2602317025 | |||
| Sticker | ||||
| 46 | 2601110432 | 1.00 | 1.21 | |
| Sticker | ||||
| 47 | 2601110303 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 48 | 2601022000 | |||
| Tapping Screw | ||||
| 49 | 2912401020 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 50 | 2910611417 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 51 | 2604448032 | 1.49 | 1.80 | |
| Needle Roller | ||||
| 52 | 1903201041 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 53 | 2602316900 | |||
| Compression Spring | ||||
| 54 | 2604613000 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 56 | 2601000034 | |||
| Straight Pin | ||||
| 57 | 2917530101 | 2.86 | 3.46 | |
| Straight Pin | ||||
| 58 | 2917530095 | 2.08 | 2.52 | |
| Shim | ||||
| 59 | 2600101612 | 1.49 | 1.80 | |
| Needle bearing | ||||
| 62 | 2600917900 | 8.35 | 10.10 | |
| Connecting Cable | ||||
| 63 | 2604448012 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 64 | 2601015006 | |||
| Sealing Plate | ||||
| 65 | 2601015900 | 1.49 | 1.80 | |
| Switch Handle | ||||
| 66 | 2602026035 | 2.86 | 3.46 | |
| Ratchet Cap | ||||
| 67 | 2600590006 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 68 | 2600590006 | 1.49 | 1.80 | |
| Shim | ||||
| 69 | 2600100568 | 1.49 | 1.80 | |
| Shim | ||||
| 69 | 2600100570 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 72 | 2601110041 | |||
| No longer available, no replacement | ||||
| 73 | 2607230008 | |||
| No longer available, no replacement | ||||
| 74 | 2604465076 | |||
| Connecting Cable | ||||
| 75 | 2604448033 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 77 | 2601098006 | |||
| Torx Oval-Head Screw | ||||
| 78 | 2603490017 | 2.08 | 2.52 | |
| Sticker | ||||
| 80 | 2601110307 | 0.83 | 1.00 | |
| Component | ||||
| 85 | 2606610047 | 1.00 | 1.21 | |
| Carbon-Brush Set | ||||
| 812 | 2604321904 | 9.67 | 11.70 | |
| Power supply cord | ||||
| 835 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
