Here you will find all available parts and drawings of the 'Bosch 0603238603 (PST50PE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

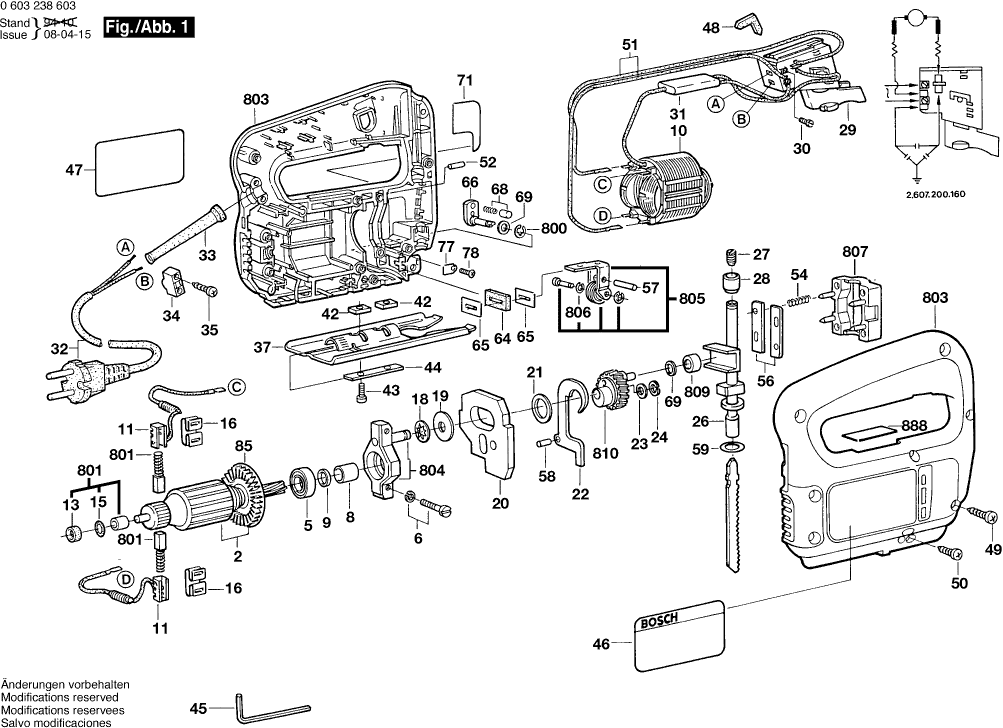

Technical drawing of model Bosch 0603238603 (PST50PE)
Spare parts list of model Bosch 0603238603 (PST50PE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 2 | 2604010558 | |||
| groove ball bearing | ||||
| 5 | 2600905021 | 8.35 | 10.10 | |
| No information available, not orderable | ||||
| 6 | 2914500009 | |||
| Guide Sleeve | ||||
| 8 | 2600400024 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 9 | 2600103013 | |||
| Field | ||||
| 10 | 2604220392 | 23.90 | 28.92 | |
| No longer available, no replacement | ||||
| 11 | 2604465077 | |||
| No longer available, no replacement | ||||
| 13 | 1600205023 | |||
| No longer available, no replacement | ||||
| 15 | 1610210014 | |||
| Holding Spring | ||||
| 16 | 1619P09928 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 18 | 2600150050 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 19 | 2600102658 | |||
| No information available, not orderable | ||||
| 20 | 2601098005 | |||
| No information available, not orderable | ||||
| 21 | 2600101083 | |||
| No information available, not orderable | ||||
| 22 | 2601923003 | |||
| Shim | ||||
| 23 | 2600101654 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 26 | 2600780038 | |||
| Clamp Screw | ||||
| 27 | 2603400000 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 28 | 2600302006 | |||
| No longer available, no replacement | ||||
| 29 | 2607200137 | |||
| Socket head cap screw | ||||
| 30 | 2603410001 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 31 | 2607329101 | |||
| No longer available, no replacement | ||||
| 33 | 2600703007 | |||
| Cable Clip | ||||
| 34 | 2601035001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 35 | 2910611019 | 2.86 | 3.46 | |
| Base Plate | ||||
| 37 | 2601016012 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 42 | 2601030006 | |||
| Socket head cap screw | ||||
| 43 | 2910021122 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 44 | 2602317025 | |||
| No information available, not orderable | ||||
| 46 | 2601110479 | |||
| No information available, not orderable | ||||
| 47 | 2601110474 | |||
| No longer available, no replacement | ||||
| 48 | 2601022000 | |||
| Tapping Screw | ||||
| 49 | 2912401020 | 1.90 | 2.30 | |
| No information available, not orderable | ||||
| 50 | 2910611018 | |||
| No information available, not orderable | ||||
| 51 | 2604448032 | |||
| Bearing bolt | ||||
| 52 | 2603201020 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 54 | 2604613000 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 56 | 2601000034 | |||
| Straight Pin | ||||
| 57 | 2917530101 | 2.86 | 3.46 | |
| No information available, not orderable | ||||
| 58 | 2917530095 | |||
| Shim | ||||
| 59 | 2600101612 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 64 | 2601015006 | |||
| No information available, not orderable | ||||
| 65 | 2601015900 | |||
| No information available, not orderable | ||||
| 66 | 2602026035 | |||
| Ratchet Cap | ||||
| 68 | 2600590006 | 1.49 | 1.80 | |
| Shim | ||||
| 69 | 2600100568 | 1.49 | 1.80 | |
| Shim | ||||
| 69/1 | 2600100607 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 71 | 2601110508 | |||
| No longer available, no replacement | ||||
| 77 | 2601098006 | |||
| Torx Oval-Head Screw | ||||
| 78 | 2603490017 | 2.08 | 2.52 | |
| Fan | ||||
| 85 | 2606610022 | 3.71 | 4.49 | |
| No longer available, no replacement | ||||
| 800 | 2916080008 | |||
| Carbon-Brush Set | ||||
| 801 | 2604321904 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 802 | 1600301900 | |||
| No information available, not orderable | ||||
| 803 | 2605104980 | |||
| No information available, not orderable | ||||
| 804 | 2605807906 | |||
| No longer available, no replacement | ||||
| 805 | 2601321900 | |||
| Locking washer | ||||
| 806 | 2916080906 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 807 | 2602316900 | |||
| Needle bearing | ||||
| 809 | 2600917900 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 810 | 2606319070 | |||
| Power supply cord | ||||
| 835 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
