Here you will find all available parts and drawings of the 'Bosch 0603238503 ( PST50PE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

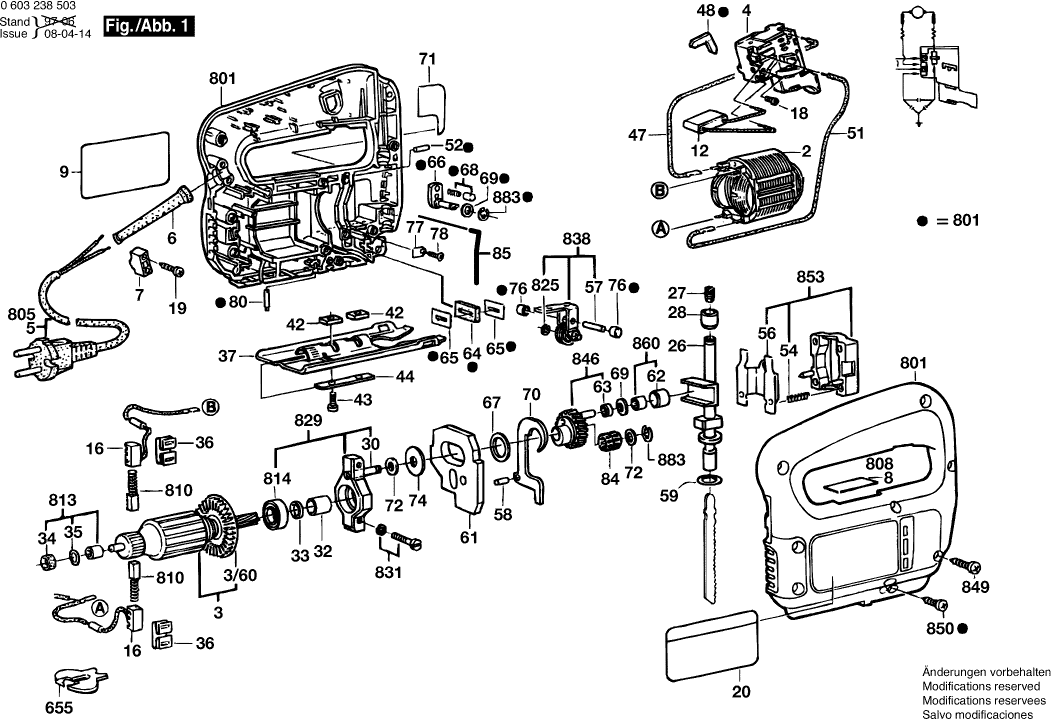

Technical drawing of model Bosch 0603238503 ( PST50PE )

Spare parts list of model Bosch 0603238503 ( PST50PE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
2 2604220423
No longer available, no replacement
3 2604010558
Fan
3/60 2606610022 3.71 4.49
No longer available, no replacement
4 2607200184
No longer available, no replacement
6 2600703007
Cable Clip
7 2601035001 1.49 1.80
Sticker
9 2601110848 2.38 2.88
Suppression Capacitor
12 2607329004 1.32 1.60
No longer available, no replacement
16 2604465077
Socket head cap screw
18 2603410001 1.49 1.80
Screw
19 2603490022 1.00 1.21
Sticker
20 2601110849 2.38 2.88
No longer available, no replacement
26 2600780038
Clamp Screw
27 2603400000 4.18 5.06
No longer available, no replacement
28 2600302006
Bearing bolt
30 2603105034 9.67 11.70
Guide Sleeve
32 2600400024 2.86 3.46
No longer available, no replacement
33 2600103013
No longer available, no replacement
34 1600205023
No longer available, no replacement
35 1610210014
Holding Spring
36 1619P09928 1.00 1.21
Base Plate
37 2601016012 8.35 10.10
No longer available, no replacement
42 2601030006
Socket head cap screw
43 2910021122 2.08 2.52
No longer available, no replacement
44 2602317025
Connecting Cable
47 2604448118 1.49 1.80
No longer available, no replacement
48 2601022000
Connecting Cable
51 2604448119 1.49 1.80
Bearing bolt
52 2603201020 1.00 1.21
Compression Spring
54 2604613000 1.49 1.80
No longer available, no replacement
56 2601322014
Straight Pin
57 2609002725 1.00 1.21
Straight Pin
58 2917530095 2.08 2.52
Shim
59 2600101612 1.49 1.80
Counterweight
61 2601098005 4.18 5.06
Bearing Sleeve
62 2600400012 4.18 5.06
Spacer Sleeve
63 2600200022 1.00 1.21
Sealing Plate
64 2601015057 2.86 3.46
fixing plate
65 2601015008 2.08 2.52
Switch Handle
66 2602026035 2.86 3.46
Shim
67 2600101083 1.49 1.80
Ratchet Cap
68 2600590006 1.49 1.80
Shim
69 2600100568 1.49 1.80
Fork Lever
70 2601923003 2.40 2.90
No longer available, no replacement
71 2601110573
Shim
72 2600100570 1.49 1.80
Shim
74 2600102014 1.49 1.80
No longer available, no replacement
76 2600506008
No longer available, no replacement
77 2601098006
Torx Oval-Head Screw
78 2603490017 2.08 2.52
Detent Pin
80 2603120019 1.49 1.80
No longer available, no replacement
84 2600913002
No longer available, no replacement
85 2603105050
Splintering Protector
655 2601016065 4.94 5.98
Housing Section
801 2605104980 39.14 47.36
Power supply cord
805 1607000388 11.37 13.76
Nameplate
808 160111A3H3 2.40 2.90
Carbon-Brush Set
810 2604321904 9.67 11.70
No longer available, no replacement
813 1600301900
groove ball bearing
814 2600905039 11.37 13.76
Locking washer
825 2916080906 1.00 1.21
Bearing Bracket
829 2605807908 16.79 20.32
Screw and washer assembly
831 2914500009 1.00 1.21
No longer available, no replacement
838 2601321900
No longer available, no replacement
846 2606319900
Tapping Screw
849 2912401020 1.90 2.30
Tapping Screw
850 2910611018 1.49 1.80
No longer available, no replacement
853 2602316902
Needle bearing
860 2600917900 8.35 10.10
No longer available, no replacement
883 2916080008
