Here you will find all available parts and drawings of the 'Bosch 0603229160 ( PST50AE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

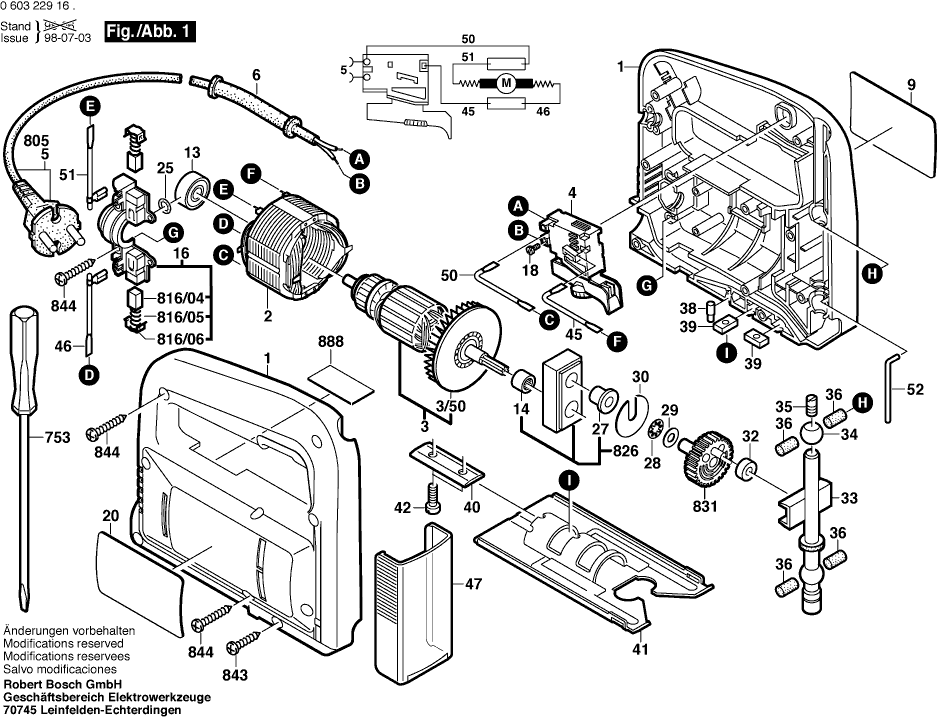

Technical drawing of model Bosch 0603229160 ( PST50AE )
Spare parts list of model Bosch 0603229160 ( PST50AE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2605104270 | |||
| Field 230-240V | ||||
| 2 | 2604220523 | 23.75 | 28.74 | |
| No longer available, no replacement | ||||
| 3 | 2604011025 | |||
| Fan | ||||
| 3/50 | 1619P11262 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 4 | 2607200184 | |||
| No longer available, no replacement | ||||
| 6 | 2600703007 | |||
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601119420 | 2.71 | 3.28 | |
| Suppression Capacitor | ||||
| 12 | 2607329141 | 4.10 | 4.96 | |
| groove ball bearing 8x19x6 | ||||
| 13 | 2600905046 | 8.45 | 10.22 | |
| Needle-Roller Bearing Ø8x8 MM | ||||
| 14 | 2600917003 | 2.24 | 2.71 | |
| Brush Plate | ||||
| 16 | 2604337118 | 20.42 | 24.71 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601119421 | 2.71 | 3.28 | |
| O-Ring 5,0x1,5 MM | ||||
| 25 | 1900210000 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 27 | 2600322003 | |||
| Spring Washer | ||||
| 28 | 2600190040 | 1.18 | 1.43 | |
| Shim 0,5 MM | ||||
| 29 | 2600100505 | 0.83 | 1.00 | |
| Shim 0,2 MM | ||||
| 30 | 2600040001 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 32 | 2600301014 | |||
| No longer available, no replacement | ||||
| 33 | 2600780065 | |||
| No longer available, no replacement | ||||
| 34 | 2600302008 | |||
| Clamp Screw | ||||
| 35 | 2603400000 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 36 | 2603239006 | |||
| No longer available, no replacement | ||||
| 38 | 2603120037 | |||
| No longer available, no replacement | ||||
| 39 | 2601030006 | |||
| No longer available, no replacement | ||||
| 40 | 2602317025 | |||
| No longer available, no replacement | ||||
| 41 | 2601016074 | |||
| Socket head cap screw DIN 84-AM4x12-8.8 | ||||
| 42 | 2910021122 | 1.70 | 2.06 | |
| Connecting Cable L=213 MM BLUE | ||||
| 45 | 2604448118 | 1.18 | 1.43 | |
| Connecting Cable L=88 MM WHITE | ||||
| 46 | 2604448034 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 47 | 2605510052 | |||
| Connecting Cable L=263MM BLUE | ||||
| 50 | 2604448119 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 51 | 2604448123 | |||
| No longer available, no replacement | ||||
| 52 | 2603105051 | |||
| Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F | ||||
| 805 | 1607000388 | 9.53 | 11.53 | |
| No longer available, no replacement | ||||
| 816/04 | 2604321917 | |||
| Compression Spring | ||||
| 816/05 | 2604610026 | 1.94 | 2.35 | |
| Ratchet Cap | ||||
| 816/06 | 2601322013 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 816/06 | 2601329051 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 826 | 2605807918 | |||
| No longer available, no replacement | ||||
| 831 | 2606316900 | |||
| Torx Oval-Head Screw 4x12 | ||||
| 843 | 2603490021 | 0.83 | 1.00 | |
| Tapping Screw DIN 7981-ST3,9x19-C-H | ||||
| 844 | 2910611020 | 1.18 | 1.43 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 1.94 | 2.35 | |
