Here you will find all available parts and drawings of the 'Bosch 0603230103 (PST50)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

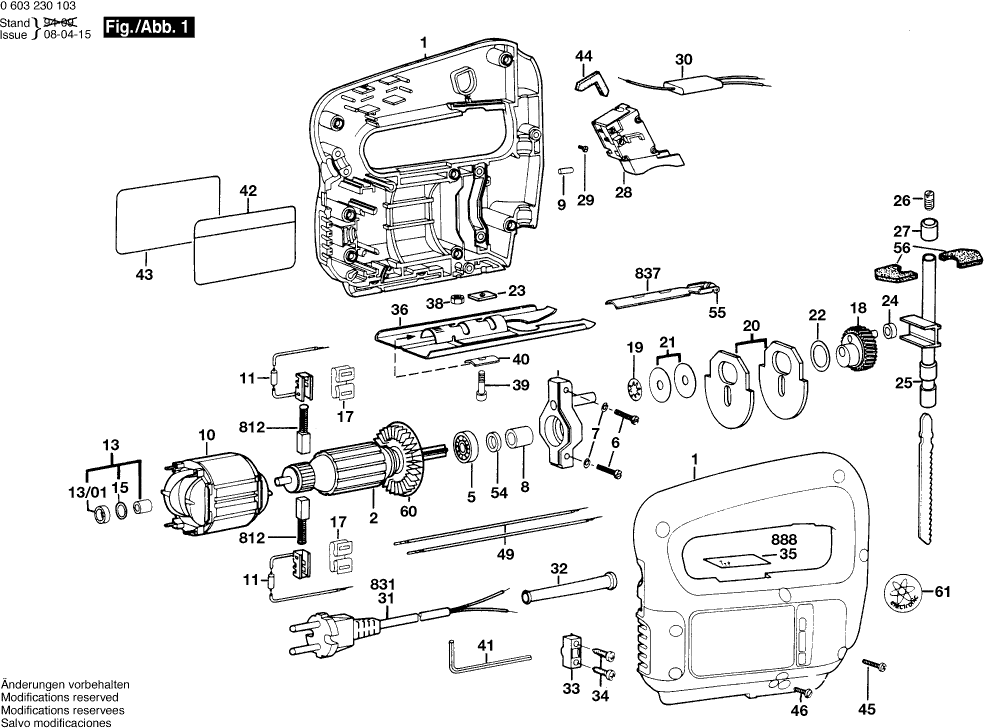

Technical drawing of model Bosch 0603230103 (PST50)
Spare parts list of model Bosch 0603230103 (PST50)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2605104142 | |||
| No longer available, no replacement | ||||
| 2 | 2604010558 | |||
| Bearing Bracket | ||||
| 3 | 1619P02422 | 12.82 | 15.51 | |
| groove ball bearing | ||||
| 5 | 2600905021 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 6 | 2910020128 | |||
| Spring Lock Washer | ||||
| 7 | 2916690003 | 1.00 | 1.21 | |
| Guide Sleeve | ||||
| 8 | 2600400024 | 2.86 | 3.46 | |
| Bearing bolt | ||||
| 9 | 2603201020 | 1.00 | 1.21 | |
| Field | ||||
| 10 | 2604220392 | 23.90 | 28.92 | |
| Brush Holder | ||||
| 11 | 2604449027 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 13 | 1600205023 | |||
| No longer available, no replacement | ||||
| 15 | 1610210014 | |||
| Holding Spring | ||||
| 17 | 1619P09928 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 18 | 2606319073 | |||
| Spring Washer | ||||
| 19 | 2600150050 | 1.49 | 1.80 | |
| Counter Weight | ||||
| 20 | 1619P02421 | 8.35 | 10.10 | |
| No information available, not orderable | ||||
| 21 | 2600102658 | |||
| Shim | ||||
| 22 | 2600101673 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 23 | 2601030006 | |||
| Needle bearing | ||||
| 24 | 2600917904 | 7.46 | 9.03 | |
| Lifting Rod | ||||
| 25 | 1619P12589 | 21.30 | 25.77 | |
| Clamp Screw | ||||
| 26 | 2603400000 | 4.18 | 5.06 | |
| Sintered-Metal Bushing | ||||
| 27 | 2600301049 | 1.49 | 1.80 | |
| Switch | ||||
| 28 | 2607200260 | 9.67 | 11.70 | |
| Socket head cap screw | ||||
| 29 | 2603410001 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 30 | 2607329101 | |||
| Grommet | ||||
| 32 | 1600703016 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 33 | 2601035001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 34 | 2910611019 | 2.86 | 3.46 | |
| Base Plate | ||||
| 36 | 2601016012 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 38 | 2601030006 | |||
| No longer available, no replacement | ||||
| 39 | 2910141126 | |||
| Profile Beading | ||||
| 40 | 2601032017 | 1.49 | 1.80 | |
| Offset Screwdriver | ||||
| 41 | 1907950004 | 5.81 | 7.03 | |
| No information available, not orderable | ||||
| 42 | 2601110613 | |||
| No information available, not orderable | ||||
| 43 | 2601110143 | |||
| No longer available, no replacement | ||||
| 44 | 2601022000 | |||
| Tapping Screw | ||||
| 45 | 2912401020 | 1.90 | 2.30 | |
| No information available, not orderable | ||||
| 46 | 2910611417 | |||
| No information available, not orderable | ||||
| 49 | 2604448012 | |||
| No longer available, no replacement | ||||
| 51 | 2607320008 | |||
| No longer available, no replacement | ||||
| 52 | 2604465024 | |||
| No information available, not orderable | ||||
| 53 | 2604448002 | |||
| No longer available, no replacement | ||||
| 54 | 2600103013 | |||
| Lubricating Felt | ||||
| 56 | 2601020007 | 1.49 | 1.80 | |
| No information available, not orderable | ||||
| 60 | 2606610047 | |||
| No longer available, no replacement | ||||
| 61 | 2601110041 | |||
| Carbon-Brush Set | ||||
| 812 | 2604321904 | 9.67 | 11.70 | |
| Power supply cord | ||||
| 831 | 1607000386 | 18.94 | 22.92 | |
| Retaining Bracket | ||||
| 837 | 2608135901 | 10.90 | 13.19 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
