Here you will find all available parts and drawings of the 'Bosch 3603K11001 ( PST18LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

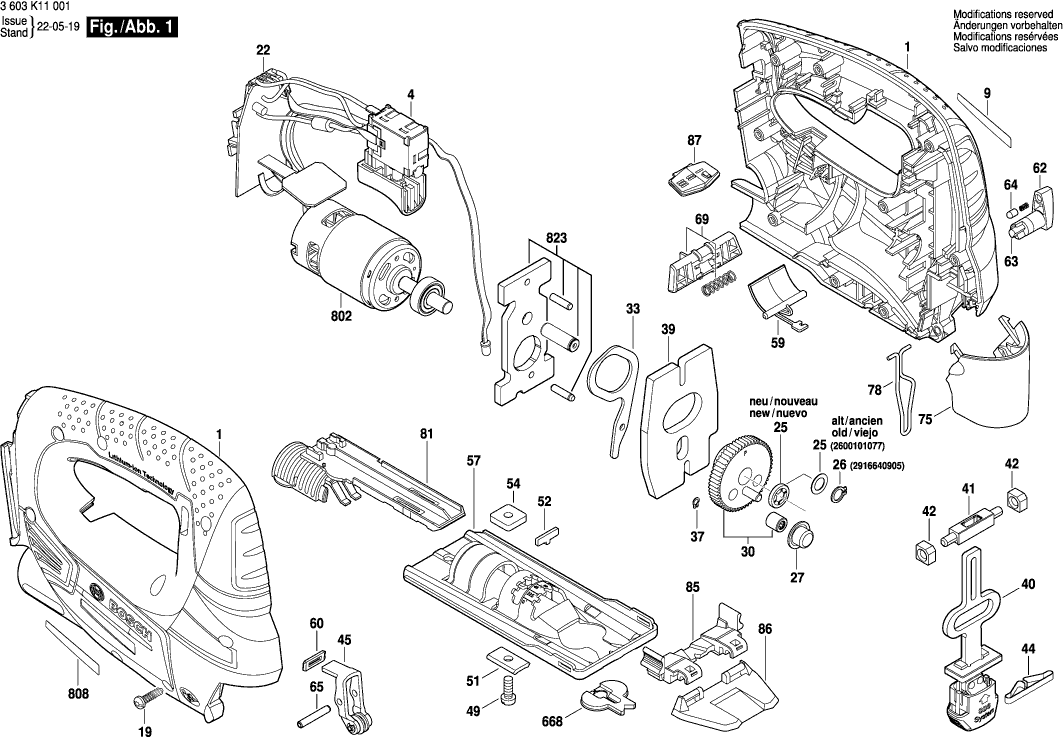

Technical drawing of model Bosch 3603K11001 ( PST18LI )
Spare parts list of model Bosch 3603K11001 ( PST18LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609004219 | 23.75 | 28.74 | |
| On-Off Switch | ||||
| 4 | 2607202172 | 18.19 | 22.01 | |
| Manufacturer's nameplate PST 18 LI | ||||
| 9 | 160111A150 | 1.94 | 2.35 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Printed Circuit Board | ||||
| 22 | 2609004221 | 49.56 | 59.97 | |
| Retaining Washer | ||||
| 25 | 1600A023S8 | 1.18 | 1.43 | |
| Shim 0,5 MM | ||||
| 25 | 2600101077 | 1.18 | 1.43 | |
| Spring retaining ring 8x0,8 N31A MR7 | ||||
| 26 | 2916640905 | 1.18 | 1.43 | |
| Needle bearing | ||||
| 27 | 2600914022 | 5.33 | 6.45 | |
| Eccentric Cog Wheel | ||||
| 30 | 2609003655 | 8.45 | 10.22 | |
| Fork Lever | ||||
| 33 | 2609003444 | 1.94 | 2.35 | |
| Shim 0,5 MM | ||||
| 36 | 2600100588 | 1.18 | 1.43 | |
| Retaining Washer | ||||
| 37 | 1600A008C6 | 0.83 | 1.00 | |
| Spring retaining ring DIN 471-4x0,4-FSt | ||||
| 37 | 2916640001 | 0.83 | 1.00 | |
| Counterweight | ||||
| 39 | 2609003452 | 5.33 | 6.45 | |
| Lifting Rod | ||||
| 40 | 2609003490 | 15.71 | 19.01 | |
| Plain bearing | ||||
| 41 | 2609003638 | 1.70 | 2.06 | |
| Insert | ||||
| 42 | 2609003450 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 44 | 2604613004 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 44 | 160461201E | 1.10 | 1.33 | |
| Roller Lever | ||||
| 45 | 2609001608 | 8.45 | 10.22 | |
| Socket head cap screw | ||||
| 49 | 2603413034 | 1.18 | 1.43 | |
| Profile Beading | ||||
| 51 | 2602317052 | 1.70 | 2.06 | |
| Adjusting Pin | ||||
| 52 | 2601030166 | 1.18 | 1.43 | |
| fixing plate | ||||
| 54 | 2600040003 | 1.70 | 2.06 | |
| base plate | ||||
| 57 | 2609004368 | 7.58 | 9.17 | |
| Spring Plate | ||||
| 59 | 2609004225 | 1.94 | 2.35 | |
| Sealing Plate | ||||
| 60 | 2601015077 | 1.18 | 1.43 | |
| Change-Over Switch | ||||
| 62 | 2609003447 | 1.18 | 1.43 | |
| Control Shaft | ||||
| 63 | 2609003508 | 1.94 | 2.35 | |
| Ratchet Cap | ||||
| 64 | 2600590006 | 1.18 | 1.43 | |
| Straight Pin | ||||
| 65 | 2609002725 | 0.83 | 1.00 | |
| Lever | ||||
| 69 | 2609004921 | 1.70 | 2.06 | |
| Covering hood | ||||
| 75 | 2609004220 | 1.70 | 2.06 | |
| Protecting Cover BLACK | ||||
| 78 | 2609003350 | 1.18 | 1.43 | |
| Saw Blade Depot | ||||
| 81 | 2608040231 | 4.70 | 5.69 | |
| Support | ||||
| 85 | 2609003509 | 2.24 | 2.71 | |
| Window | ||||
| 86 | 2609003510 | 3.31 | 4.01 | |
| State-Of-Charge Indicator | ||||
| 87 | 2609004226 | 1.70 | 2.06 | |
| Battery Pack PBA 18V 2,5Ah W-B 45Wh | ||||
| 91 | 1607A350RU | 73.72 | 89.20 | |
| Battery Pack PBA 18V/1,5 Ah W-A | ||||
| 91 | 2607337187 | 57.10 | 69.09 | |
| Battery Pack PBA 18V/1,5 Ah W-A | ||||
| 91 | 1607A350JM | 55.25 | 66.85 | |
| Charger GB AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225967 | 67.25 | 81.37 | |
| Charger AUS AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225969 | 67.25 | 81.37 | |
| Fast Charger EU AL 2215 CV 230/14,4-18V, 1h | ||||
| 653 | 2607225471 | 55.25 | 66.85 | |
| Fast Charger EU AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225965 | 44.82 | 54.23 | |
| Fast Charger EU AL 1810 CV 230/14,4-18V 1A | ||||
| 653 | 2607226385 | 29.75 | 36.00 | |
| Fast Charger GB AL 1810 CV 230/14,4-18V 1A | ||||
| 653 | 2607226387 | 29.75 | 36.00 | |
| Splintering Protector | ||||
| 668 | 2601016065 | 4.10 | 4.96 | |
| DC motor 18V | ||||
| 802 | 2609004731 | 55.25 | 66.85 | |
| Nameplate | ||||
| 808 | 160111A2KU | 1.94 | 2.35 | |
| Bearing Bracket | ||||
| 823 | 2609004583 | 10.73 | 12.98 | |
