Here you will find all available parts and drawings of the 'Bosch 3603CA0300 (PST1000PEL)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

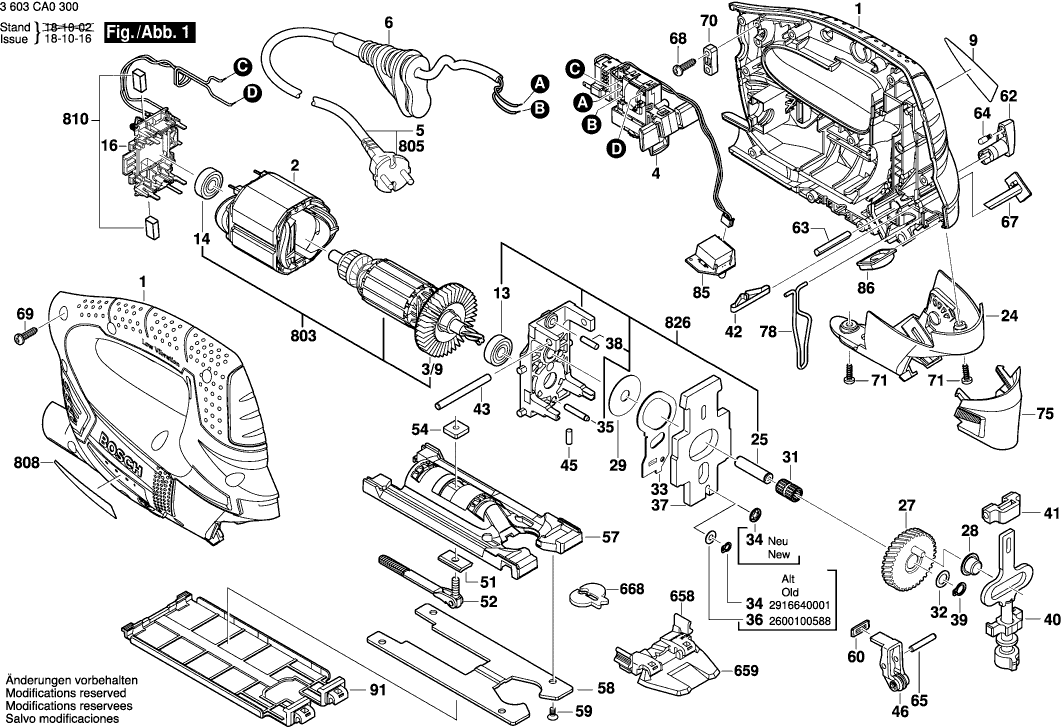

Technical drawing of model Bosch 3603CA0300 (PST1000PEL)
Spare parts list of model Bosch 3603CA0300 (PST1000PEL)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2609003458 | 23.90 | 28.92 | |
| Field | ||||
| 2 | 2609003671 | 18.94 | 22.92 | |
| Fan | ||||
| 3/9 | 2606610123 | 2.40 | 2.90 | |
| Switch | ||||
| 4 | 1607200218 | 14.94 | 18.08 | |
| Grommet | ||||
| 6 | 2609003080 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2609003621 | 2.86 | 3.46 | |
| groove ball bearing | ||||
| 13 | 3130900020 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 14 | 2600905110 | 5.81 | 7.03 | |
| Brush Holder | ||||
| 16 | 2609006435 | 10.90 | 13.19 | |
| Cover | ||||
| 24 | 2609003644 | 10.90 | 13.19 | |
| Bearing bolt | ||||
| 25 | 2603105080 | 2.40 | 2.90 | |
| Eccentric Cog Wheel | ||||
| 27 | 2606320093 | 39.14 | 47.36 | |
| Needle bearing | ||||
| 28 | 2600914022 | 6.73 | 8.14 | |
| Shim | ||||
| 29 | 2600101048 | 1.49 | 1.80 | |
| Needle-Roller Assembly | ||||
| 31 | 2600913040 | 5.81 | 7.03 | |
| Shim | ||||
| 32 | 2600101077 | 1.49 | 1.80 | |
| Fork Lever | ||||
| 33 | 2601923012 | 4.18 | 5.06 | |
| Retaining Washer | ||||
| 34 | 1600A008C6 | 1.00 | 1.21 | |
| Bearing bolt | ||||
| 35 | 2603105091 | 2.40 | 2.90 | |
| Counterweight | ||||
| 37 | 2601098098 | 9.67 | 11.70 | |
| Needle Roller | ||||
| 38 | 1903201055 | 5.81 | 7.03 | |
| Retaining Washer | ||||
| 39 | 1600A023S8 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 39 | 2916640905 | 1.49 | 1.80 | |
| Lifting Rod | ||||
| 40 | 2600780149 | 23.90 | 28.92 | |
| Plain bearing | ||||
| 41 | 1617S02463 | 64.67 | 78.25 | |
| Plain bearing | ||||
| 41 | 2605801038 | 4.94 | 5.98 | |
| Compression Spring | ||||
| 42 | 2604613004 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 42 | 160461201E | 1.49 | 1.80 | |
| Needle Roller | ||||
| 43 | 2603201089 | 5.81 | 7.03 | |
| Bearing bolt | ||||
| 45 | 2603105084 | 2.08 | 2.52 | |
| Roller Lever | ||||
| 46 | 2609001608 | 9.67 | 11.70 | |
| Profile Beading | ||||
| 51 | 2602317052 | 2.08 | 2.52 | |
| Tensioning Lever | ||||
| 52 | 2602098016 | 8.35 | 10.10 | |
| fixing plate | ||||
| 54 | 2600040003 | 2.08 | 2.52 | |
| base plate | ||||
| 57 | 2609003462 | 11.37 | 13.76 | |
| Work Board | ||||
| 58 | 2609003463 | 7.46 | 9.03 | |
| Thread-forming tap. Screw | ||||
| 59 | 2603421014 | 1.49 | 1.80 | |
| Sealing Plate | ||||
| 60 | 2601015077 | 1.49 | 1.80 | |
| Change-Over Switch | ||||
| 62 | 2609003447 | 1.49 | 1.80 | |
| Control Shaft | ||||
| 63 | 2603124155 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 64 | 2600590006 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 65 | 2609002725 | 1.00 | 1.21 | |
| Switch Slide | ||||
| 67 | 2609003337 | 1.49 | 1.80 | |
| Screw | ||||
| 68 | 2603490022 | 1.00 | 1.21 | |
| Screw | ||||
| 69 | 2603490022 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 70 | 2601035001 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 71 | 2603490021 | 1.00 | 1.21 | |
| Covering hood | ||||
| 75 | 2609003464 | 2.86 | 3.46 | |
| Protecting Cover | ||||
| 78 | 2609003350 | 1.49 | 1.80 | |
| Led Board | ||||
| 85 | 1607233368 | 8.35 | 10.10 | |
| Lens | ||||
| 86 | 2609003465 | 1.49 | 1.80 | |
| Pad | ||||
| 91 | 2609003553 | 4.94 | 5.98 | |
| Support | ||||
| 658 | 2609003511 | 4.94 | 5.98 | |
| Window | ||||
| 659 | 2609003512 | 2.86 | 3.46 | |
| Splintering Protector | ||||
| 668 | 2601016065 | 4.94 | 5.98 | |
| Armature | ||||
| 803 | 2609001928 | 31.42 | 38.02 | |
| Power supply cord | ||||
| 805 | 1607000387 | 10.90 | 13.19 | |
| Nameplate | ||||
| 808 | 160111A2KF | 2.86 | 3.46 | |
| Carbon-Brush Set | ||||
| 810 | 2610391290 | 7.32 | 8.86 | |
| Bearing Bracket | ||||
| 826 | 2609003887 | 23.90 | 28.92 | |
