Here you will find all available parts and drawings of the 'Bosch 3603C96000 (PST1000CE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

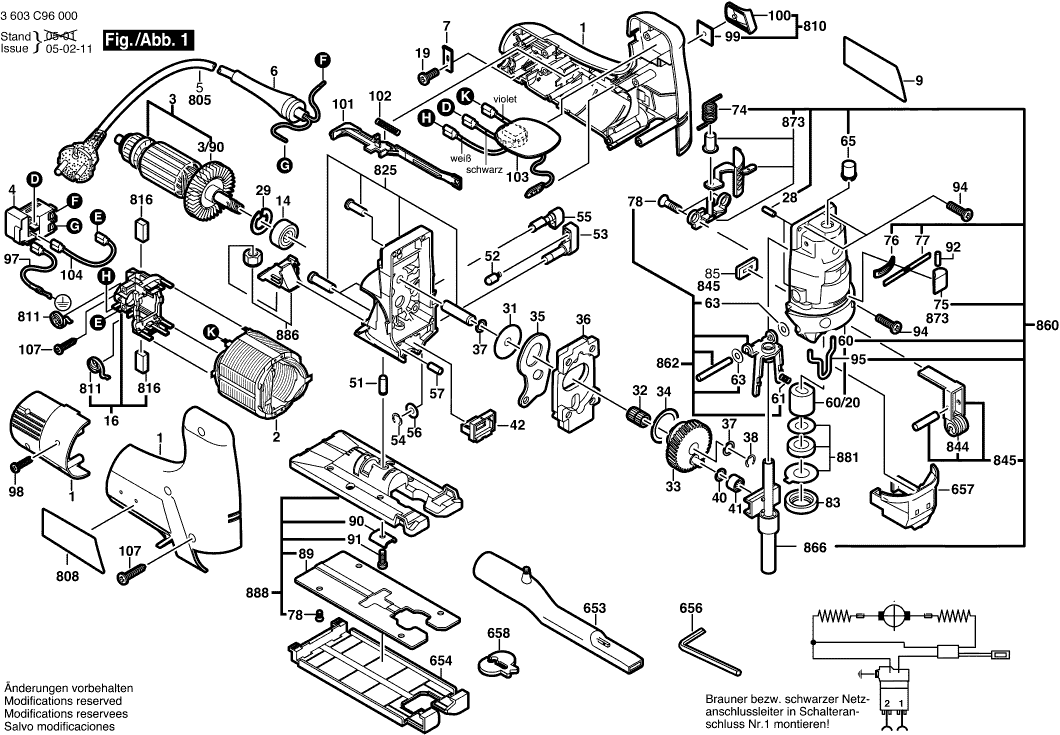

Technical drawing of model Bosch 3603C96000 (PST1000CE)
Spare parts list of model Bosch 3603C96000 (PST1000CE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605105098 | 15.26 | 18.46 | |
| Field | ||||
| 2 | 2604220584 | 21.30 | 25.77 | |
| No longer available, no replacement | ||||
| 3 | 2604011115 | |||
| Fan | ||||
| 3/90 | 2606610089 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 4 | 2607200345 | |||
| Power supply cord | ||||
| 5 | 1604460158 | 9.08 | 10.99 | |
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 2601302011 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601116989 | 1.24 | 1.50 | |
| Ball Bearing | ||||
| 14 | 2600905095 | 11.37 | 13.76 | |
| Brush Plate | ||||
| 16 | 2605807082 | 27.81 | 33.65 | |
| Torx Oval-Head Screw | ||||
| 19 | 2603490021 | 1.00 | 1.21 | |
| Needle Roller | ||||
| 28 | 1903201042 | 2.08 | 2.52 | |
| Spring retaining ring | ||||
| 29 | 2916660008 | 2.08 | 2.52 | |
| Shim | ||||
| 31 | 2600101048 | 1.49 | 1.80 | |
| Needle-Roller Assembly | ||||
| 32 | 2600913040 | 5.81 | 7.03 | |
| Eccentric Cog Wheel | ||||
| 33 | 2606320101 | 27.81 | 33.65 | |
| Shim | ||||
| 34 | 2600102614 | 1.00 | 1.21 | |
| Fork Lever | ||||
| 35 | 2601923010 | 2.08 | 2.52 | |
| Counterweight | ||||
| 36 | 2601098032 | 13.13 | 15.89 | |
| Shim | ||||
| 37 | 2600101047 | 1.49 | 1.80 | |
| Locking washer | ||||
| 38 | 2916080909 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 40 | 2600200038 | 1.00 | 1.21 | |
| Needle bearing | ||||
| 41 | 2600917900 | 8.35 | 10.10 | |
| Air Eliminator | ||||
| 42 | 2602305048 | 1.49 | 1.80 | |
| Bearing bolt | ||||
| 51 | 2603105053 | 1.00 | 1.21 | |
| Ratchet Cap | ||||
| 52 | 2600590006 | 1.49 | 1.80 | |
| Rotary Knob | ||||
| 53 | 2602026150 | 2.87 | 3.47 | |
| Locking washer | ||||
| 54 | 2916080908 | 1.00 | 1.21 | |
| Rotary Knob | ||||
| 55 | 2602026151 | 1.24 | 1.50 | |
| Shim | ||||
| 56 | 2600100607 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 57 | 2603100069 | 1.49 | 1.80 | |
| Gear Cover | ||||
| 60 | 2605808081 | 47.53 | 57.51 | |
| Bushing | ||||
| 60/20 | 2600301037 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 61 | 2604610042 | 1.49 | 1.80 | |
| Shim | ||||
| 63 | 2600101095 | 1.49 | 1.80 | |
| Seal | ||||
| 65 | 2601015064 | 1.49 | 1.80 | |
| Torsion Spring | ||||
| 74 | 2604651011 | 2.86 | 3.46 | |
| Cap-Handle | ||||
| 75 | 2600591029 | 1.00 | 1.21 | |
| Seal | ||||
| 76 | 2601015065 | 1.49 | 1.80 | |
| Cover Plate | ||||
| 77 | 2601016079 | 4.94 | 5.98 | |
| Thread-forming tap. Screw | ||||
| 78 | 2603421014 | 1.49 | 1.80 | |
| Retaining snap ring | ||||
| 83 | 2600202037 | 2.08 | 2.52 | |
| Sealing Plate | ||||
| 85 | 2601015057 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 89 | 2601098082 | |||
| Profile Beading | ||||
| 90 | 2601030022 | 2.40 | 2.90 | |
| Hex Socket Head Cap Screw | ||||
| 91 | 2910141197 | 1.44 | 1.74 | |
| Slotted Spring Pin | ||||
| 92 | 2917760034 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 94 | 2603410049 | 1.49 | 1.80 | |
| Protecting Cover | ||||
| 95 | 2603101046 | 1.49 | 1.80 | |
| Earth Conductor | ||||
| 97 | 2604448211 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 98 | 2603490018 | 1.00 | 1.21 | |
| Dust Protection | ||||
| 99 | 2601010062 | 2.40 | 2.90 | |
| Switch Handle | ||||
| 100 | 2602026152 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 101 | 2601099072 | |||
| Compression Spring | ||||
| 102 | 2604611033 | 2.08 | 2.52 | |
| Speed governor | ||||
| 103 | 2607230114 | 28.56 | 34.56 | |
| Connecting Cable | ||||
| 104 | 2604448104 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 107 | 2603490024 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 653 | 2605730038 | |||
| No longer available, no replacement | ||||
| 654 | 2608000184 | |||
| Offset Screwdriver | ||||
| 656 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 656 | 2610364015 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 657 | 2605510159 | |||
| Splintering Protector | ||||
| 658 | 2601016065 | 4.94 | 5.98 | |
| Nameplate | ||||
| 808 | 2601116993 | 2.87 | 3.47 | |
| Switch Handle | ||||
| 810 | 2602026907 | 2.87 | 3.47 | |
| Spiral Spring | ||||
| 811 | 1604652013 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 816 | 2604320914 | |||
| Gear Housing | ||||
| 825 | 2605806896 | 47.53 | 57.51 | |
| No longer available, no replacement | ||||
| 844 | 2600326904 | |||
| No longer available, no replacement | ||||
| 845 | 2601321904 | |||
| Gear Cover | ||||
| 860 | 2605808927 | 155.51 | 188.17 | |
| Guide Bracket | ||||
| 862 | 2601322900 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 866 | 2600780911 | |||
| Holding Plate | ||||
| 873 | 2601990910 | 6.96 | 8.42 | |
| No longer available, no replacement | ||||
| 881 | 2600290902 | |||
| Fan Cover | ||||
| 886 | 2605500908 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 888 | 2608000920 | |||
