Here you will find all available parts and drawings of the 'Bosch 3603C40300 ( PSS300AE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

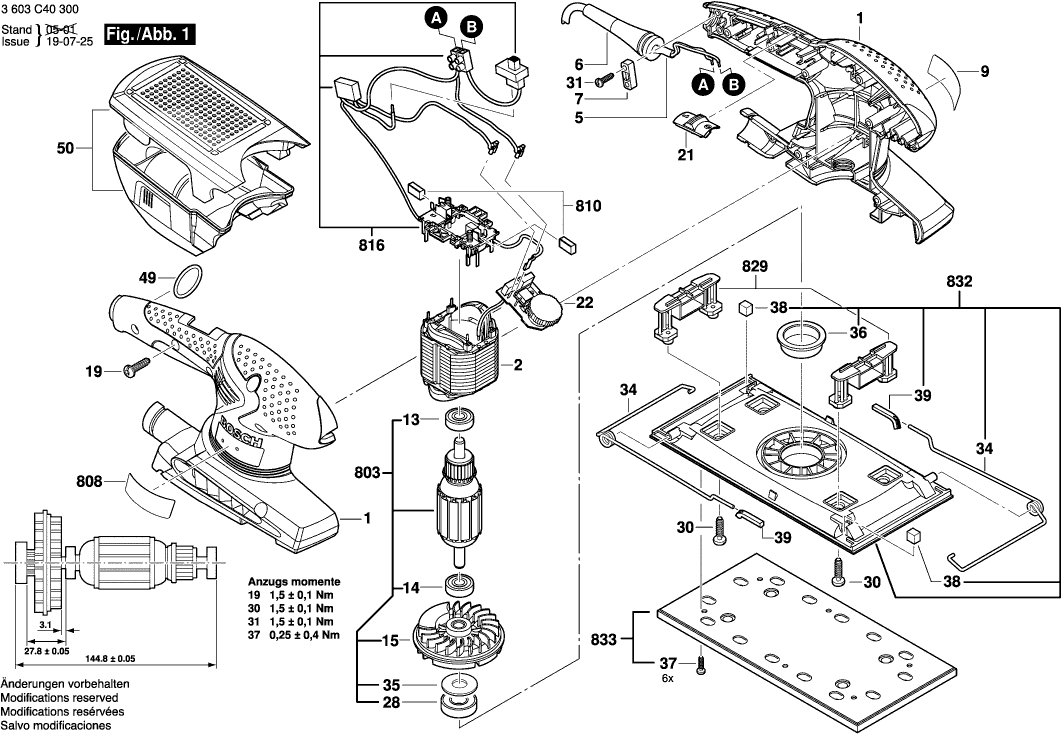

Technical drawing of model Bosch 3603C40300 ( PSS300AE )
Spare parts list of model Bosch 3603C40300 ( PSS300AE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section GREEN | ||||
| 1 | 2609000354 | 15.71 | 19.01 | |
| Field 230V | ||||
| 2 | 2609000623 | 13.93 | 16.86 | |
| Power supply cord EU 2,7m 2 x 0,75mm H05 VV-F | ||||
| 5 | 2604460260 | 11.88 | 14.37 | |
| Grommet | ||||
| 6 | 2609002019 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 7 | 2601035004 | 1.70 | 2.06 | |
| Manufacturer's nameplate PSS 300 AE | ||||
| 9 | 2609000523 | 2.24 | 2.71 | |
| Manufacturer's nameplate PSS 300 AE | ||||
| 9 | 2609001860 | 0.83 | 1.00 | |
| groove ball bearing | ||||
| 13 | 2600905078 | 5.33 | 6.45 | |
| No longer available, no replacement | ||||
| 14 | 2600905052 | |||
| Fan | ||||
| 15 | 2609000361 | 8.45 | 10.22 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Switch Slide | ||||
| 21 | 2609000362 | 1.70 | 2.06 | |
| Rpm Actuator | ||||
| 22 | 1607233192 | 13.93 | 16.86 | |
| groove ball bearing 12x28x8 | ||||
| 28 | 2600905045 | 12.41 | 15.02 | |
| Torx Oval-Head Screw 4x12 | ||||
| 30 | 2603490021 | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 31 | 2603490022 | 0.83 | 1.00 | |
| Clamping Saddle | ||||
| 34 | 2609000370 | 1.70 | 2.06 | |
| Felt Washer | ||||
| 35 | 2609003061 | 0.83 | 1.00 | |
| Insulating Cap | ||||
| 36 | 2609001588 | 1.18 | 1.43 | |
| Oval-Head Screw M4x8 | ||||
| 37 | 2603413035 | 0.83 | 1.00 | |
| Plastic Insert | ||||
| 38 | 2609000696 | 1.18 | 1.43 | |
| End cap | ||||
| 39 | 2609000702 | 0.83 | 1.00 | |
| O-Ring | ||||
| 49 | 2609001762 | 0.83 | 1.00 | |
| Dust container | ||||
| 50 | 2609000356 | 10.73 | 12.98 | |
| Armature 230V | ||||
| 803 | 2609000869 | 40.61 | 49.14 | |
| Nameplate | ||||
| 808 | 160111A2W4 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 2610391290 | 6.54 | 7.91 | |
| Brush Holder | ||||
| 816 | 2609000873 | 13.93 | 16.86 | |
| Vibration Foot | ||||
| 829 | 2609000874 | 4.70 | 5.69 | |
| Sander Plate | ||||
| 832 | 2609000878 | 29.75 | 36.00 | |
| Foam Panel | ||||
| 833 | 2609000942 | 23.75 | 28.74 | |
