Here you will find all available parts and drawings of the 'Bosch 0603254742 (PSS230E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

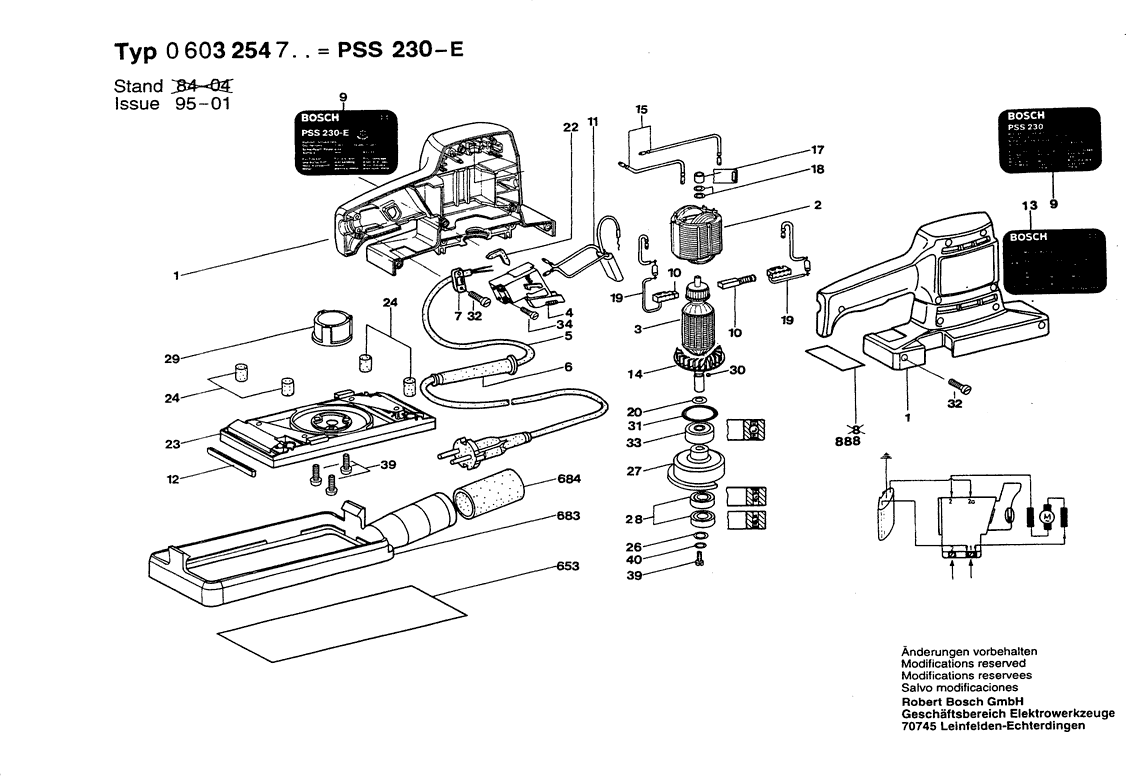

Technical drawing of model Bosch 0603254742 (PSS230E)
Spare parts list of model Bosch 0603254742 (PSS230E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 2 | 1604220152 | |||
| No information available, not orderable | ||||
| 3 | 1604010230 | |||
| No information available, not orderable | ||||
| 4 | 2607200164 | |||
| Power supply cord | ||||
| 5 | 2604460205 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 6 | 2600703006 | |||
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 9 | 2601110648 | |||
| No longer available, no replacement | ||||
| 11 | 2607328004 | |||
| No longer available, no replacement | ||||
| 12 | 2605510008 | |||
| No longer available, no replacement | ||||
| 13 | 2601110979 | |||
| Fan | ||||
| 14 | 2606610027 | 2.86 | 3.46 | |
| No information available, not orderable | ||||
| 15 | 2604448001 | |||
| No longer available, no replacement | ||||
| 17 | 2600910005 | |||
| No longer available, no replacement | ||||
| 18 | 1610210014 | |||
| No longer available, no replacement | ||||
| 19 | 2604465081 | |||
| Plain Washer | ||||
| 20 | 2600100041 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 22 | 2601022000 | |||
| No longer available, no replacement | ||||
| 24 | 1603101018 | |||
| No information available, not orderable | ||||
| 26 | 1600100020 | |||
| No information available, not orderable | ||||
| 27 | 2602210009 | |||
| No longer available, no replacement | ||||
| 28 | 2600905013 | |||
| No longer available, no replacement | ||||
| 29 | 2600501004 | |||
| Ball | ||||
| 30 | 1903230004 | 2.08 | 2.52 | |
| O-Ring | ||||
| 31 | 1900210128 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 33 | 2600905068 | 13.13 | 15.89 | |
| Socket head cap screw | ||||
| 34 | 2603410001 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 39 | 2910021154 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 40 | 2916060006 | |||
| No longer available, no replacement | ||||
| 653 | 1608604140 | |||
| No longer available, no replacement | ||||
| 683 | 1605190018 | |||
| No information available, not orderable | ||||
| 801 | 2605104997 | |||
| No longer available, no replacement | ||||
| 810 | 1604321900 | |||
| No longer available, no replacement | ||||
| 823 | 1607000902 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
