Here you will find all available parts and drawings of the 'Bosch 0603247003 ( PSS23A )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

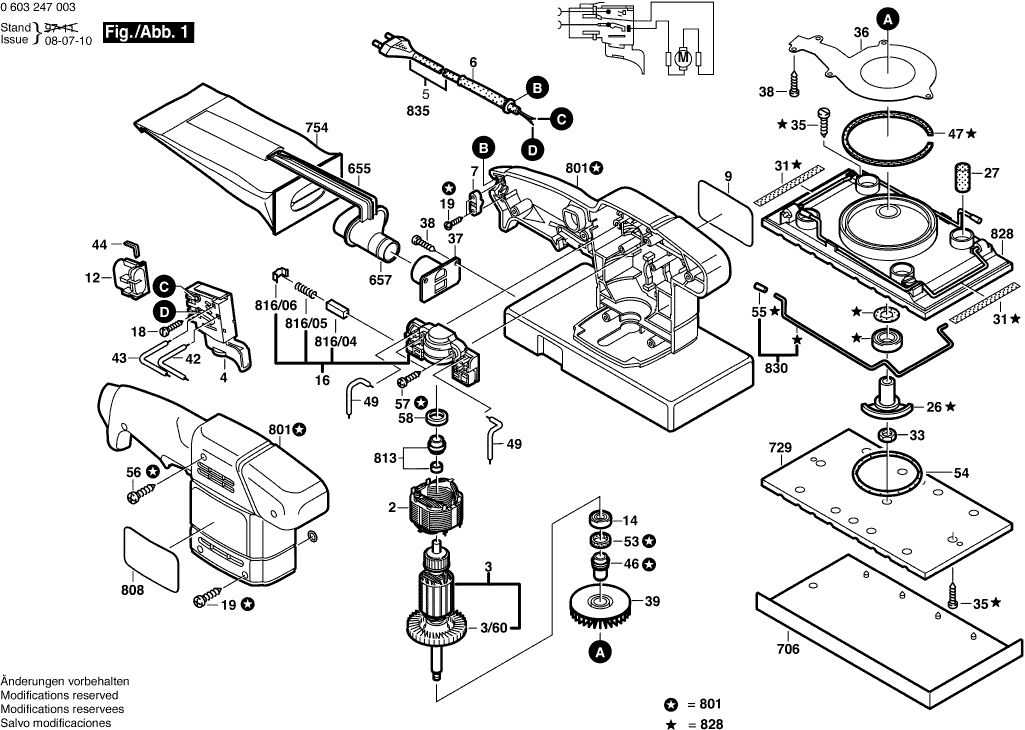

Technical drawing of model Bosch 0603247003 ( PSS23A )
Spare parts list of model Bosch 0603247003 ( PSS23A )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230V | ||||
| 2 | 2604220452 | 15.71 | 19.01 | |
| Armature 240V | ||||
| 3 | 2604011062 | 33.45 | 40.47 | |
| Fan | ||||
| 3/60 | 2606610055 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 4 | 2607200365 | |||
| No longer available, no replacement | ||||
| 6 | 2600703007 | |||
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate | ||||
| 9 | 2601118657 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 12 | 2607329138 | |||
| groove ball bearing 8x22x7 | ||||
| 14 | 1900905041 | 10.73 | 12.98 | |
| No longer available, no replacement | ||||
| 16 | 2609992604 | |||
| Socket head cap screw M3x6,5-4.8 | ||||
| 18 | 2603410001 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 26 | 2600499040 | |||
| No longer available, no replacement | ||||
| 27 | 1603101018 | |||
| No longer available, no replacement | ||||
| 31 | 2601007019 | |||
| No longer available, no replacement | ||||
| 33 | 2603300013 | |||
| Thread-forming tap. Screw M4x8 | ||||
| 35 | 2603410048 | 1.18 | 1.43 | |
| Sheet metal cover | ||||
| 36 | 2600034002 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 37 | 2605702008 | |||
| Torx Oval-Head Screw 4x8 | ||||
| 38 | 2603490020 | 0.83 | 1.00 | |
| Fan | ||||
| 39 | 2606610026 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 42 | 2604448045 | |||
| Connecting Cable L=213 MM BLUE | ||||
| 43 | 2604448118 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 44 | 2601022000 | |||
| Spacer Sleeve | ||||
| 46 | 2600322002 | 1.18 | 1.43 | |
| Felt Strip | ||||
| 47 | 2601005012 | 1.94 | 2.35 | |
| Connecting Cable L=115 MM WHITE | ||||
| 49 | 2604448109 | 0.83 | 1.00 | |
| Seal Ring | ||||
| 53 | 2600290029 | 2.24 | 2.71 | |
| O-Ring 56,0x1,78 MM | ||||
| 54 | 2600210041 | 3.31 | 4.01 | |
| Cap-Handle | ||||
| 55 | 2600591005 | 1.94 | 2.35 | |
| Torx Oval-Head Screw 4x25 | ||||
| 56 | 2603490024 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x20 | ||||
| 57 | 2603490023 | 0.83 | 1.00 | |
| Felt Washer | ||||
| 58 | 2600005009 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 655 | 2605702031 | |||
| O-Ring 20,0x1,5 MM | ||||
| 657 | 1610210075 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 706 | 2608190016 | |||
| No information available, not orderable | ||||
| 729 | 2608000072 | |||
| No information available, not orderable | ||||
| 754 | 2605411068 | |||
| Housing Section GREEN | ||||
| 801 | 2605104879 | 20.42 | 24.71 | |
| Marking Plate | ||||
| 808 | 2601119202 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 813 | 2600301050 | |||
| No longer available, no replacement | ||||
| 816/04 | 2607014001 | |||
| Compression Spring | ||||
| 816/05 | 2604610028 | 1.18 | 1.43 | |
| Ratchet Cap | ||||
| 816/06 | 2601322013 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 828 | 2608000170 | |||
| No longer available, no replacement | ||||
| 830 | 2608045901 | |||
| Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F | ||||
| 835 | 1607000388 | 9.53 | 11.53 | |
